Transmission Control Boot Replacement

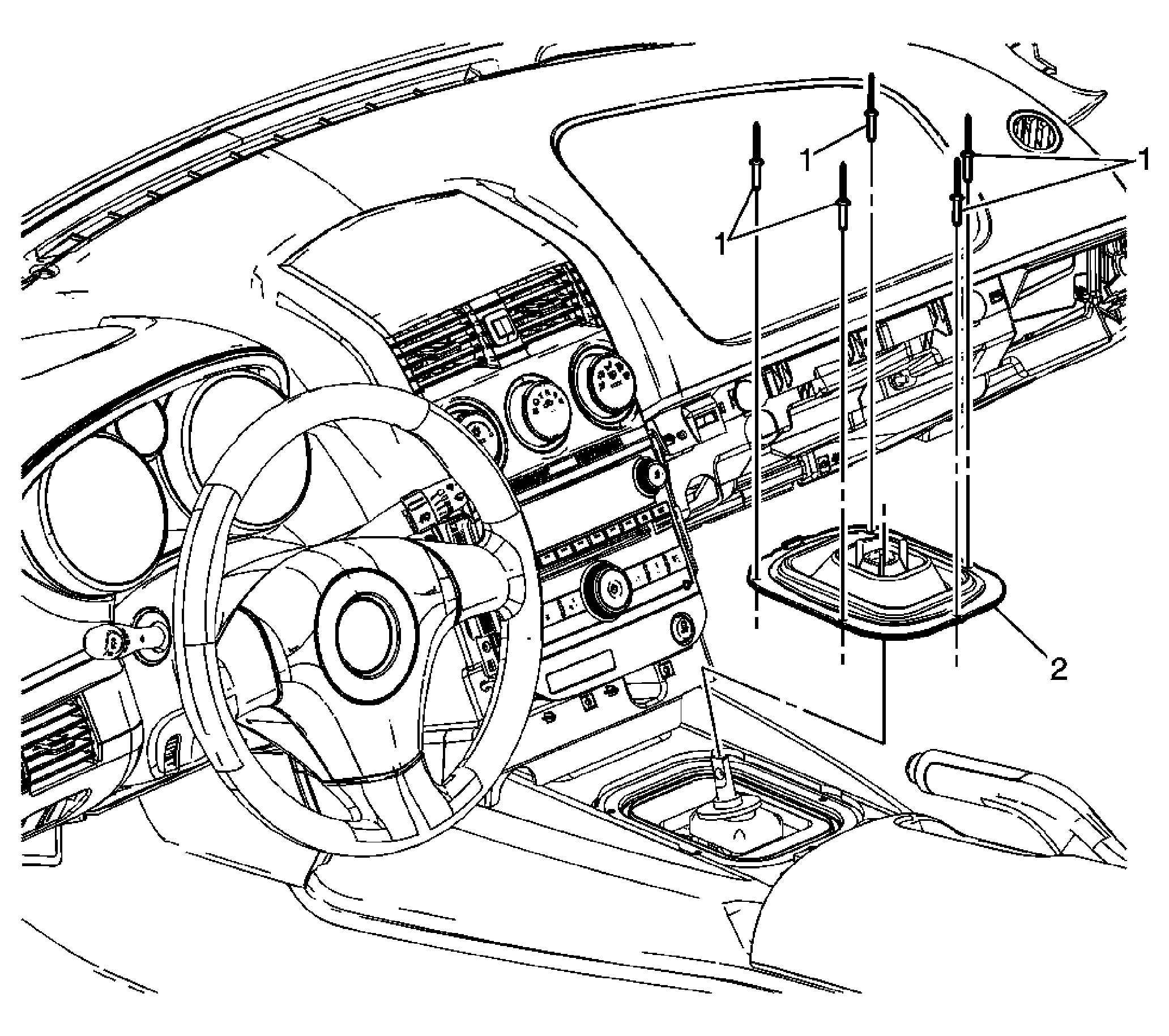

Fig 1: View Of Transmission Control Boot & Rivets

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the shift control lever and boot. Refer to Control Lever and/or Boot Replacement (SKY) or Control Lever and/or Boot Replacement (Solstice) . Remove the instrument panel center support bracket. Refer to Instrument Panel Center Support Bracket Replacement (SKY) or Instrument Panel Center Support Bracket Replacement (Solstice) .
1	Shift Control Boot Rivet (Qty: 5)
2	Shift Control Boot

Callout

Component Name

Preliminary Procedures

Shift Control Boot Rivet (Qty: 5)

Shift Control Boot
