Tail/Stop & Turn Signal Lamp - Right (Solstice)

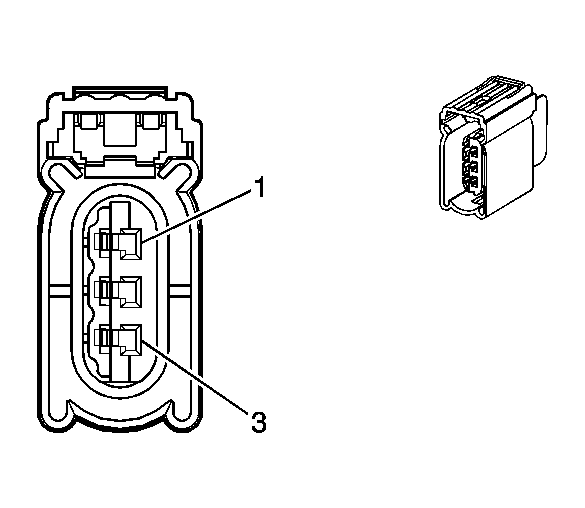

Fig 1: Tail/Stop & Turn Signal Lamp - Right (Solstice) Connector End View

Courtesy of GENERAL MOTORS CORP.

Tail/Stop & Turn Signal Lamp - Right (Solstice)

Pin	Wire	Circuit	Function
1	0.8 D-GN	19	Right Rear Stop/Turn Lamp Supply Voltage
2	0.8 BN	9	Tail/License Lamps Supply Voltage
3	0.5 BK	750	Ground

Connector Part Information  OEM: 7900-1493-000 Service: See Catalog Description: 3-Way F (BK)

Terminal Part Information  Terminal/Tray: 7116-4102-08/9 Core/Insulation Crimp: E/1 Release Tool/Test Probe: 12094430/J-35616-2A (GY)
