Ignition Coil 1

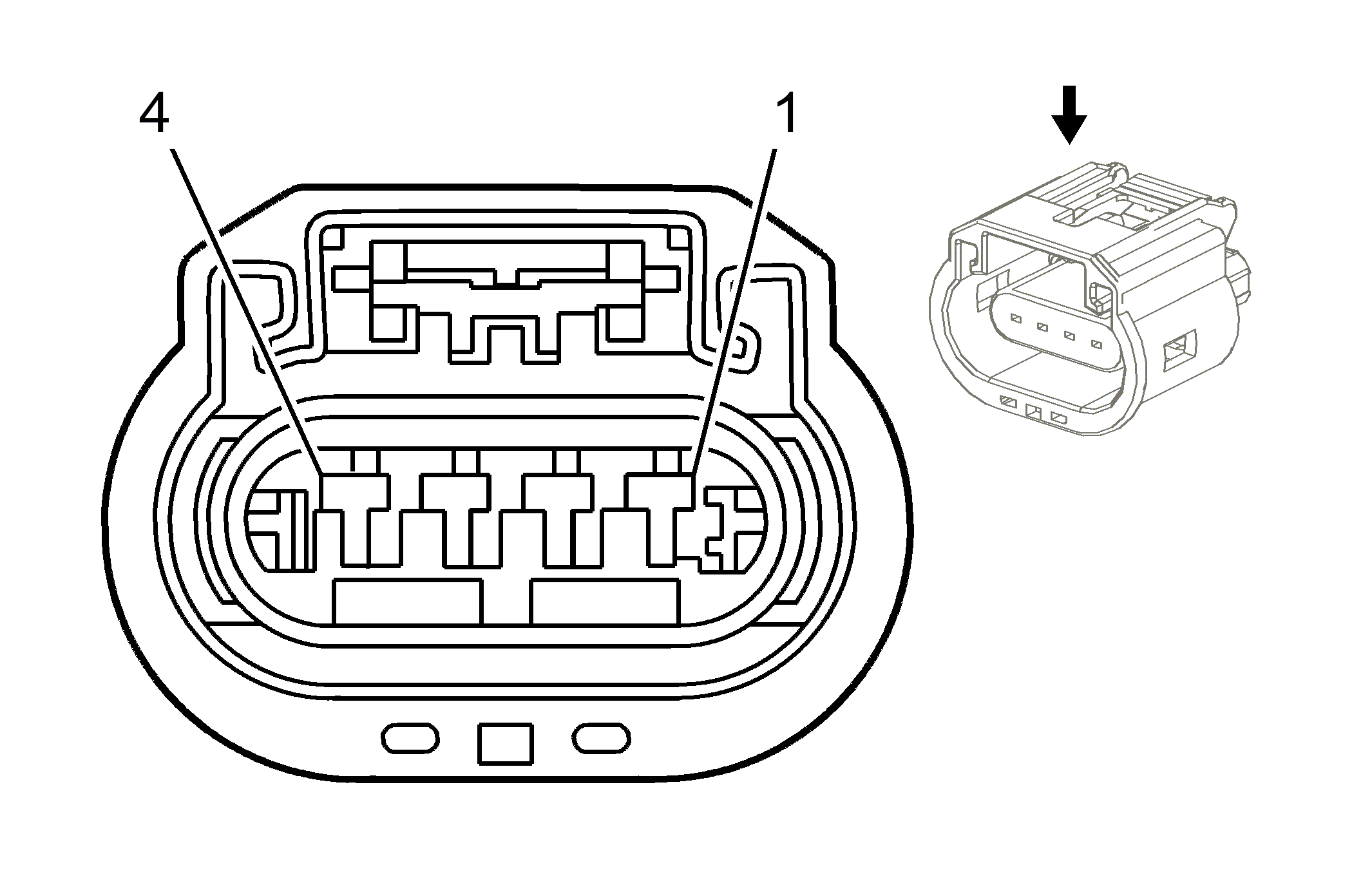

Fig 1: Ignition Coil 1 Connector End View
GM1590069Courtesy of GENERAL MOTORS CORP.
Ignition Coil 1

Pin Wire Circuit Function
1 0.5 BK 450 Ground
2 0.35 BN 2129 Low Reference
3 0.35 PU 2121 IC 1 Control
4 0.5 PK/BK 5292 Ignition 1 Voltage
Connector Part Information
  • OEM: 7283-3392-30
  • Service: 88988338
  • Description: 4-Way F GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
