Headlamp - Left (Solstice)

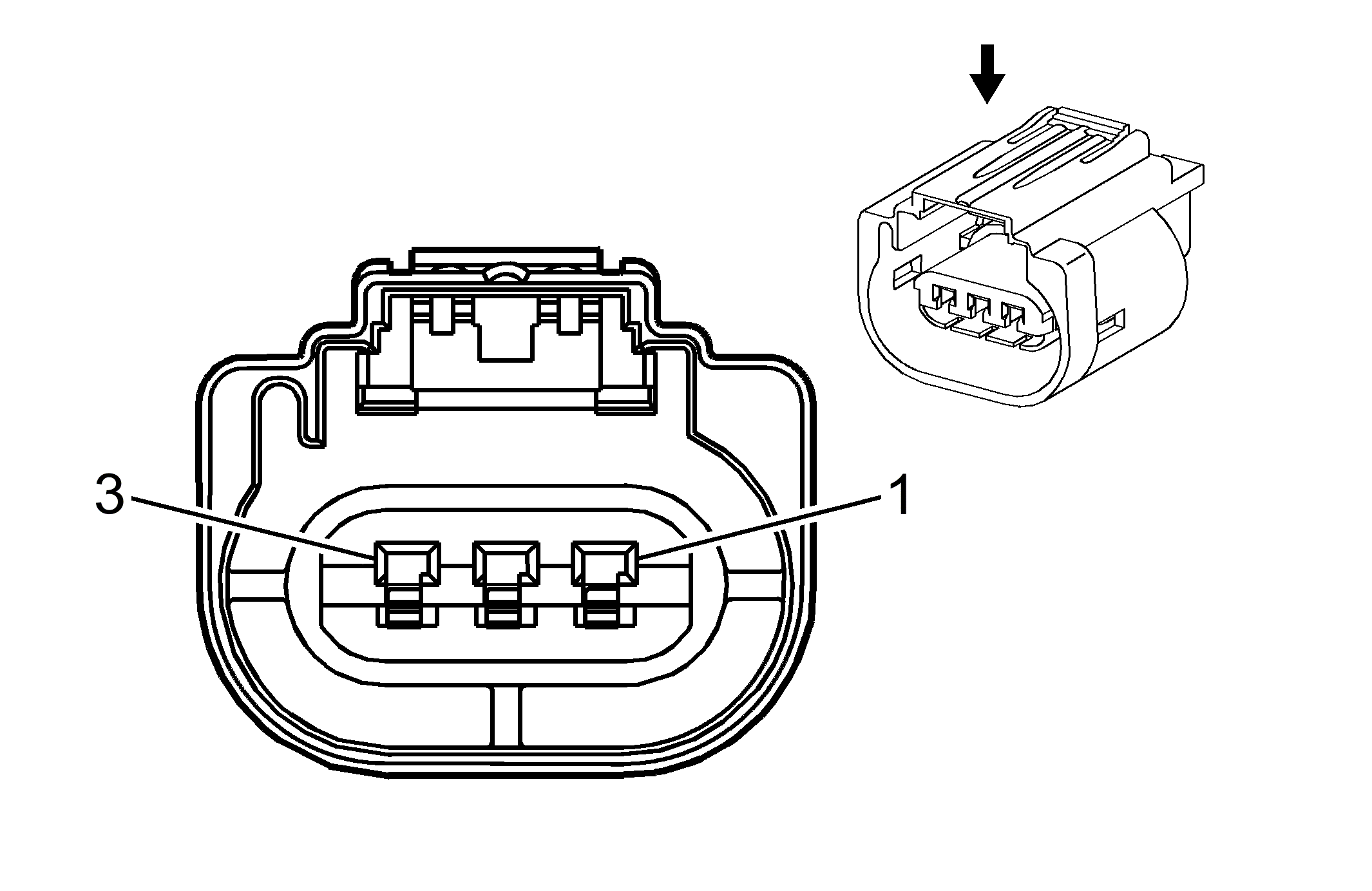

Fig 1: Headlamp - Left (Solstice) Connector End View
GM1591675Courtesy of GENERAL MOTORS CORP.
Headlamp - Left (Solstice)

Pin Wire Circuit Function
1 0.8 YE 712 Right Headlamp Low Beam Supply Voltage
2 0.8 BK 150 Ground
3 0.8 D-GN/WH 711 Right Headlamp High Beam Supply Voltage
Connector Part Information
  • OEM: 7900-1486-003
  • Service: See Catalog
  • Description: 3-Way F (WH)
Terminal Part Information
  • Terminal/Tray: 7116-4102-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
