Generator X1

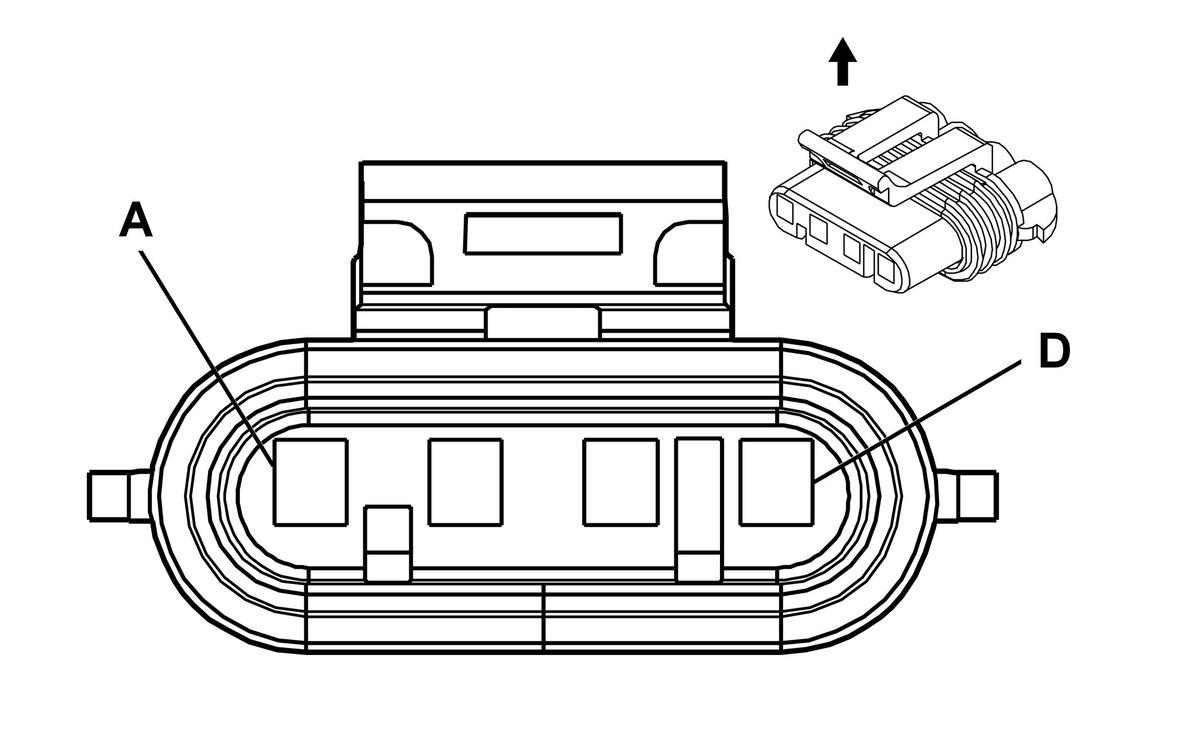

Fig 1: Generator X1 Connector End View
GM697046Courtesy of GENERAL MOTORS CORP.
Generator X1

Pin Wire Circuit Function
A - - Not Used
B 0.35 OG 225 Generator Turn On Signal
C 0.35 GY 23 Generator Field Duty Cycle Signal
D - - Not Used
Connector Part Information
  • OEM: 12186568
  • Description: 4-Way F Metri-Pack 150 Series (BK)
