Blower Motor

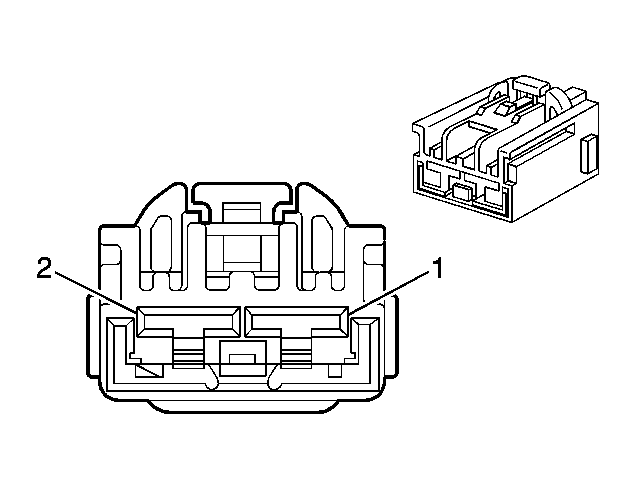

Fig 1: Blower Motor Connector End View
GM1658766Courtesy of GENERAL MOTORS CORP.
Blower Motor

Pin Wire Circuit Function
1 3.0 OG 52 Blower Motor High Control
2 3.0 BN 141 Ignition 3 Voltage
Connector Part Information
  • OEM: 7283-5590-40
  • Service: 88988702
  • Description: 2-Way F YESC/USCAR Class III Series (BK)
Terminal Part Information
  • Terminal/Tray: 7116-7122-02/10
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: 12094430/J-35616-42 (RD)
