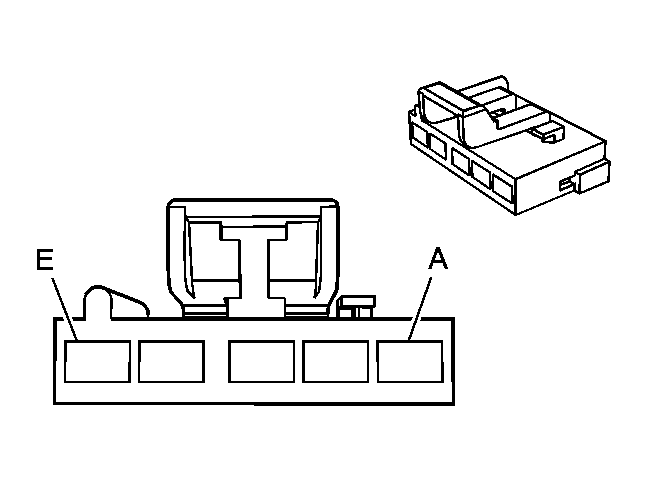

Blower Motor Resistor Assembly
Courtesy of GENERAL MOTORS CORP. Blower Motor Resistor Assembly
| Pin |
Wire |
Circuit |
Function |
| A |
3.0 OG |
52 |
Blower Motor High Control |
| B |
2.0 YE |
60 |
Blower Motor Low Control |
| C |
2.0 TN |
63 |
Blower Motor Medium 1 Control |
| D |
2.0 L-BU |
72 |
Medium 2 Blower Motor Control |
| E |
3.0 OG |
52 |
Blower Motor High Control |
Connector Part Information
- OEM: 12059296
- Service: 12059296
- Description: 5-Way F Metri-Pack 480 Series (RD)
|
Terminal Part Information
- Pins: A, E
- Terminal/Tray: 12084595/2
- Core/Insulation Crimp: F/G
- Release Tool/Test Probe: 12094430/J-35616-40 (BU)
- Pins: B, C, D
- Terminal/Tray: 12124304/2
- Core/Insulation Crimp: A/B
- Release Tool/Test Probe: 12094430/J-35616-40 (BU)
|
