Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2010 Saturn Sky and 2010 Pontiac Solstice. However, it is still accessible from the selected car via links, so may be relevant.

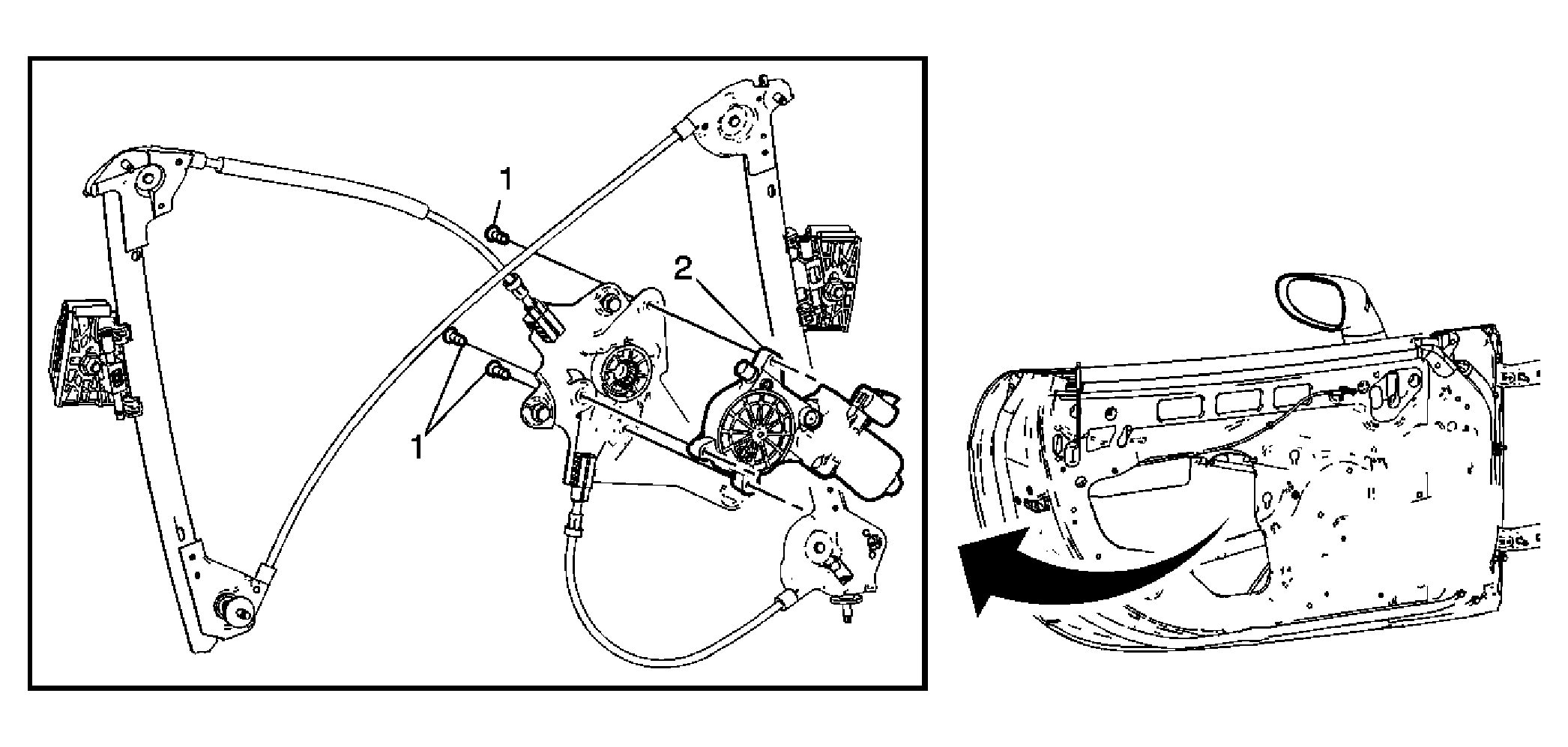

Fig 1: Identifying Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Remove the interior trim panel. Refer to Door Trim Panel Replacement . Remove the water deflector. Refer to Door Water Deflector Replacement . Remove the front side door window. Refer to Front Side Door Window Replacement . Remove the power window regulator. Refer to Front Side Door Window Regulator Replacement (Power) or Front Side Door Window Regulator Replacement (Manual) .
1	Power Window Motor Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Power Window Regulator Motor

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Remove the interior trim panel. Refer to Door Trim Panel Replacement .
Remove the water deflector. Refer to Door Water Deflector Replacement .
Remove the front side door window. Refer to Front Side Door Window Replacement .
Remove the power window regulator. Refer to Front Side Door Window Regulator Replacement (Power) or Front Side Door Window Regulator Replacement (Manual) .

Power Window Motor Bolt (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (89 lb in)

Power Window Regulator Motor
