Rear Seat Heater Control Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

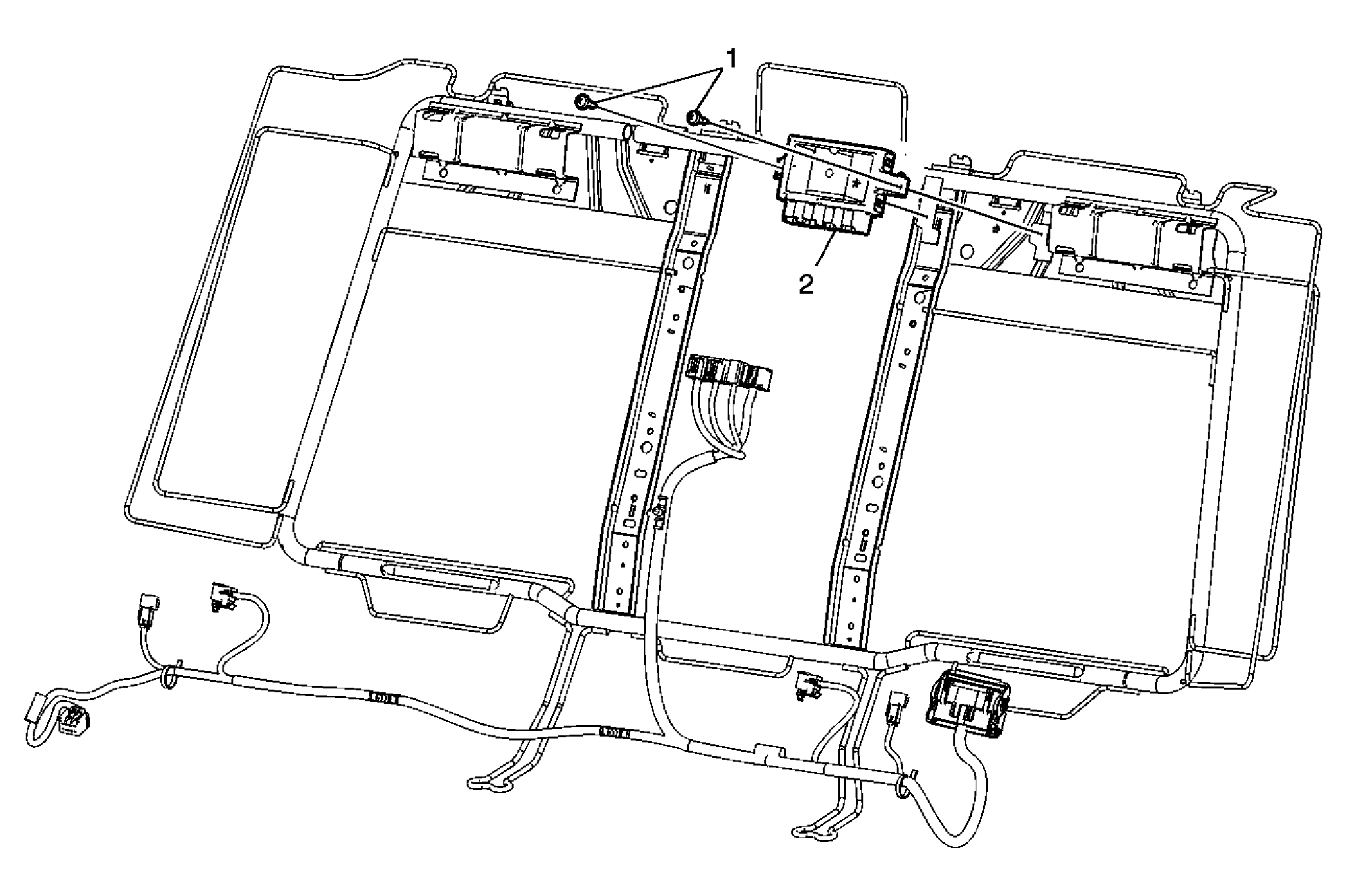

Fig 1: View Of Rear Seat Heater Control Module & Screws
GM1571694Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Replacement .
  2. Remove the rear seat armrest. Refer to Rear Seat Armrest Replacement .
  3. Remove the rear seat back cushion cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
1 Rear Seat Heater Control Module Screws (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  2 N.m (18 lb in)
2 Rear Seat Heater Control Module

Procedure

  1. Disconnect the electrical connector.
  2. Refer to Control Module References for replacement and setup information.
