Radiator Inlet Hose Replacement

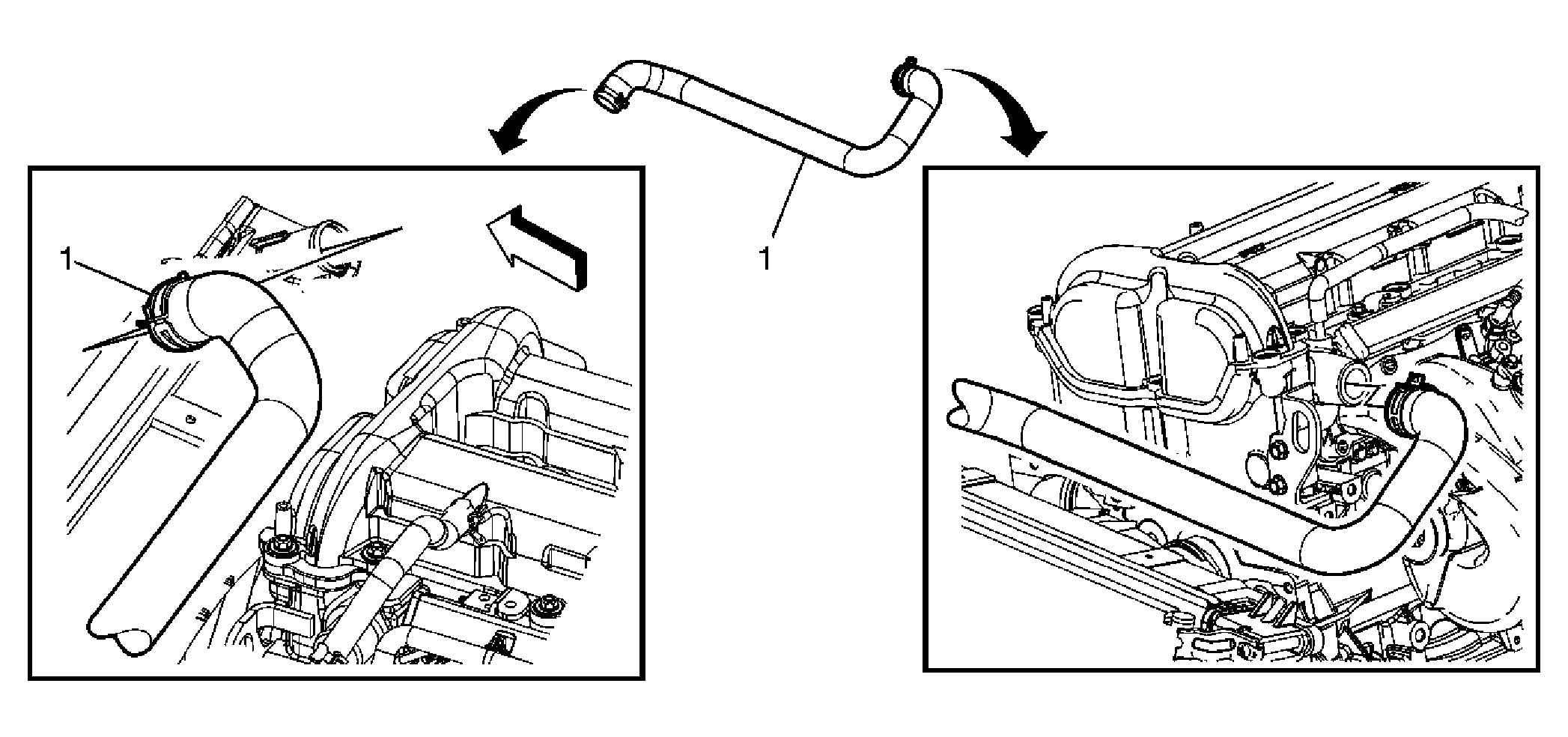

Fig 1: View Of Radiator Inlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (GE-47716) or Cooling System Draining and Filling (2.4L LE5 Only) or Cooling System Draining and Filling (Static Fill-LNF) . Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Resonator Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
1	Hose Assembly, Radiator Inlet Tip: Using J 38185 position radiator inlet hose clamps aside and remove hose from the fittings. See Special Tools .

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Hose Assembly, Radiator Inlet
Tip: Using J 38185 position radiator inlet hose clamps aside and remove hose from the fittings. See Special Tools .
