Saturn
>>
2008
>>
Sky Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Windows
>>
Fixed & MOVEABLE Window Systems
>>
Schematic & Routing Diagrams
>>
Moveable Window Schematics
Moveable Window Schematics

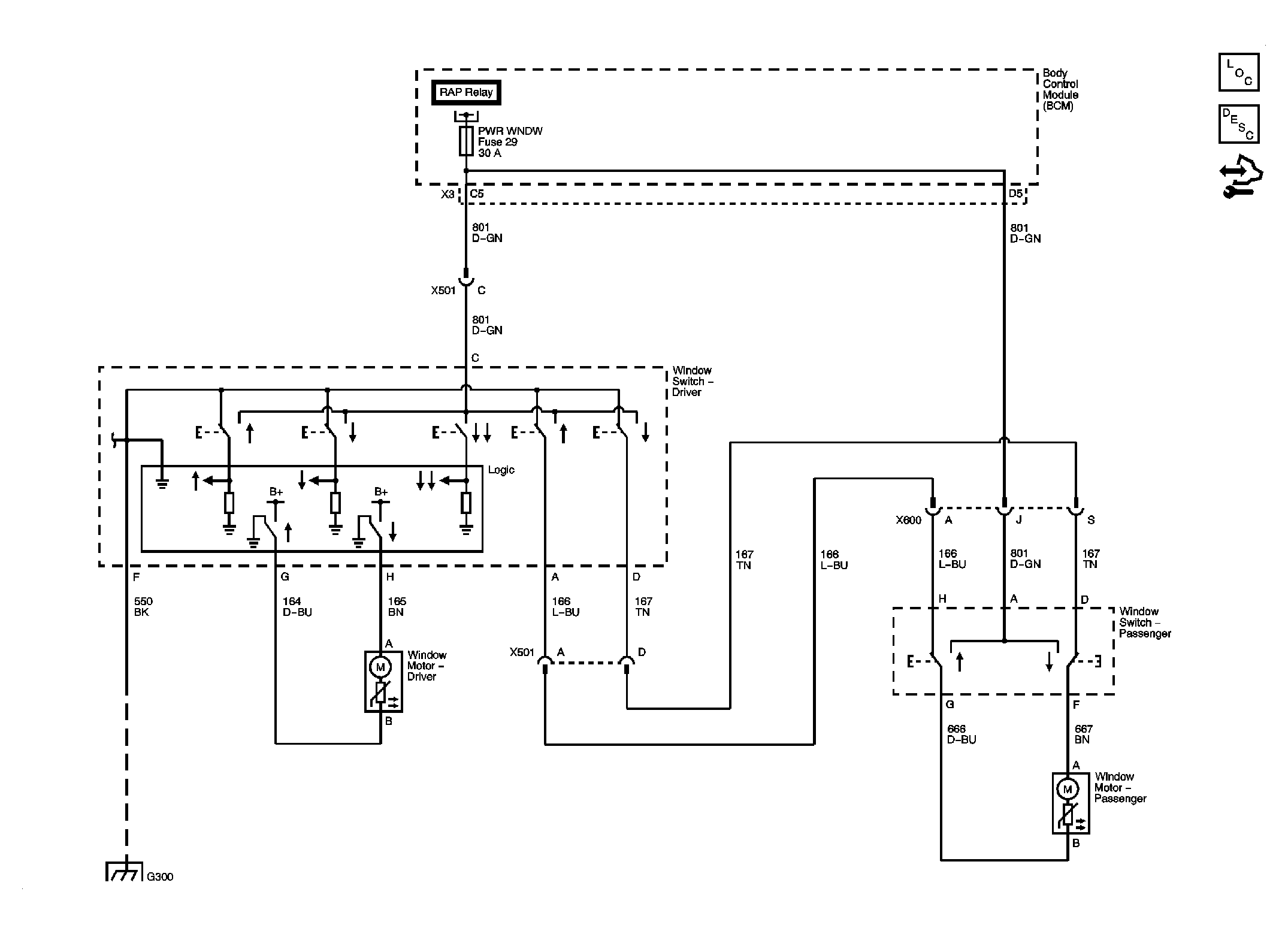

Fig 1: Moveable Window Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
