Frame Brace Replacement

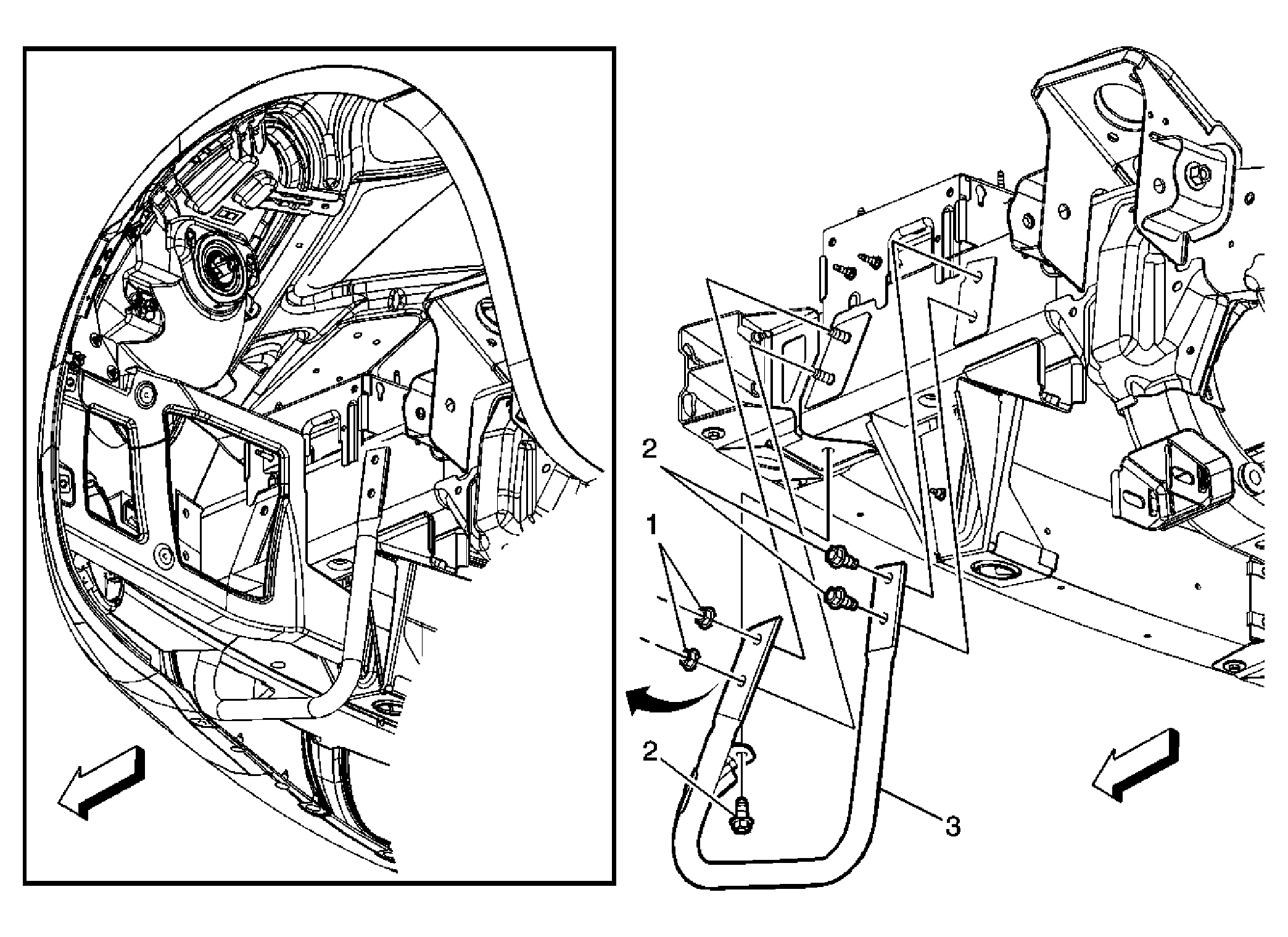

Fig 1: Identifying Frame Brace, Nuts & Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement (Base) or Front Wheelhouse Liner Replacement (Turbo) .
1	Frame Brace Nuts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Frame Brace Bolts (Qty: 3) Tighten: 10 N.m (89 lb in)
3	Frame Brace
