Saturn
>>
2008
>>
Sky Base, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Schematic & Routing Diagrams
>>
Cruise Control Schematics
Cruise Control Schematics

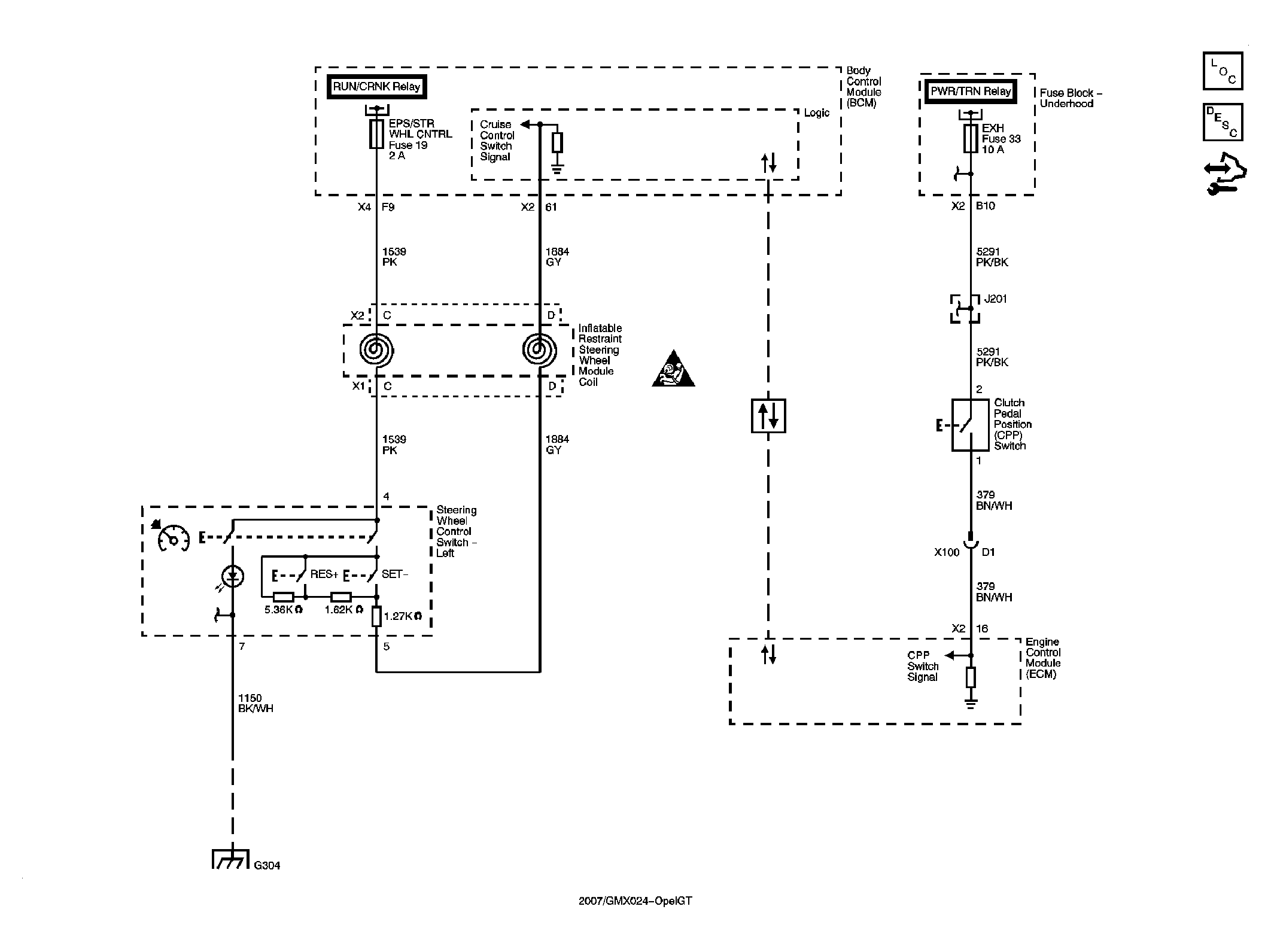

Fig 1: Cruise Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
