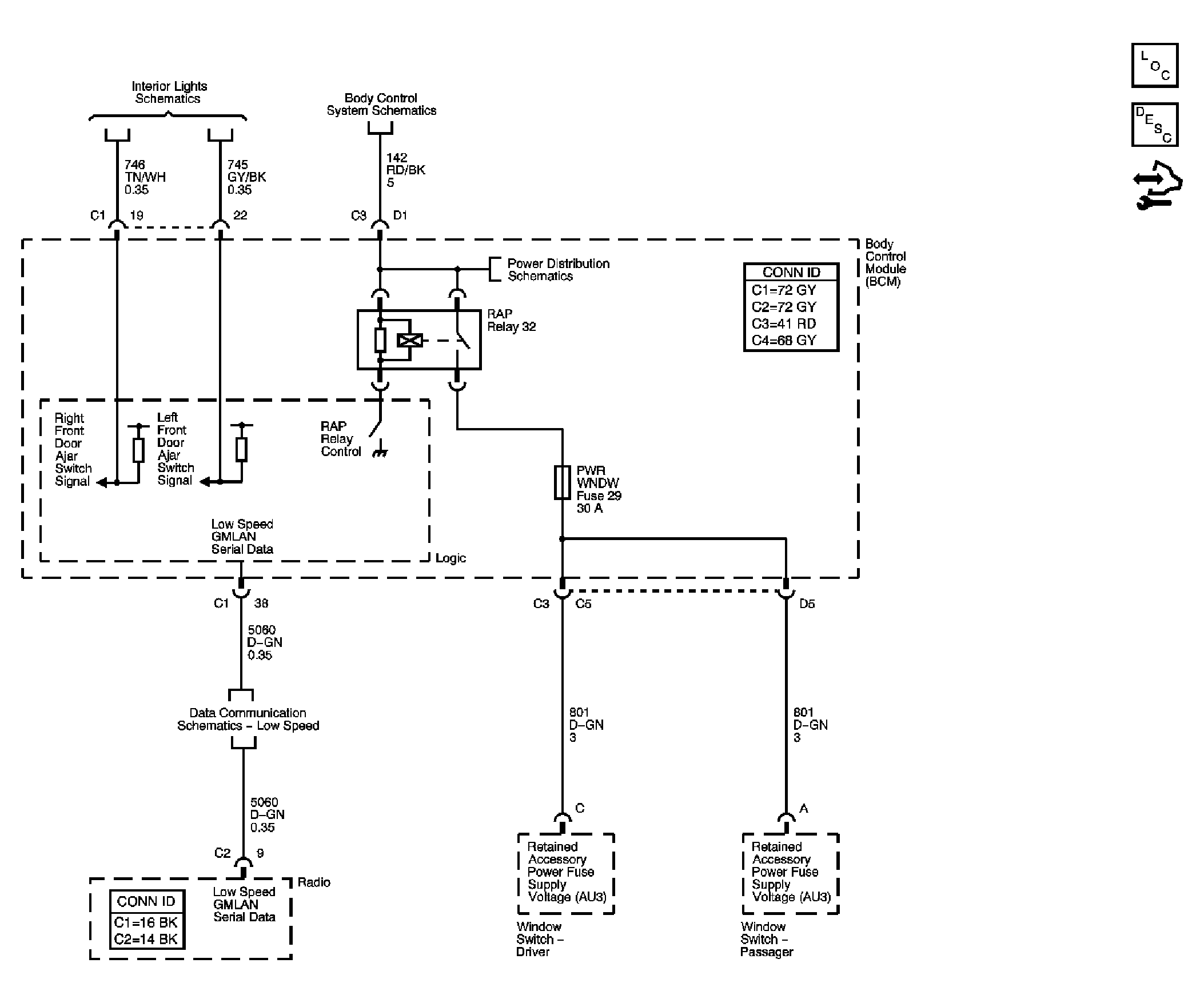

Home >> Saturn >> 2008 >> Sky Base, Standard >> Repair and Diagnosis (Single Page) >> Body & Frame >> Ignition Switch/Steering Lock >> Wiring Systems And Power Management - Introduction >> Schematic & Routing Diagrams >> Power Moding Schematics
