Power Distribution Schematics

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Underhood Fuse Block B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

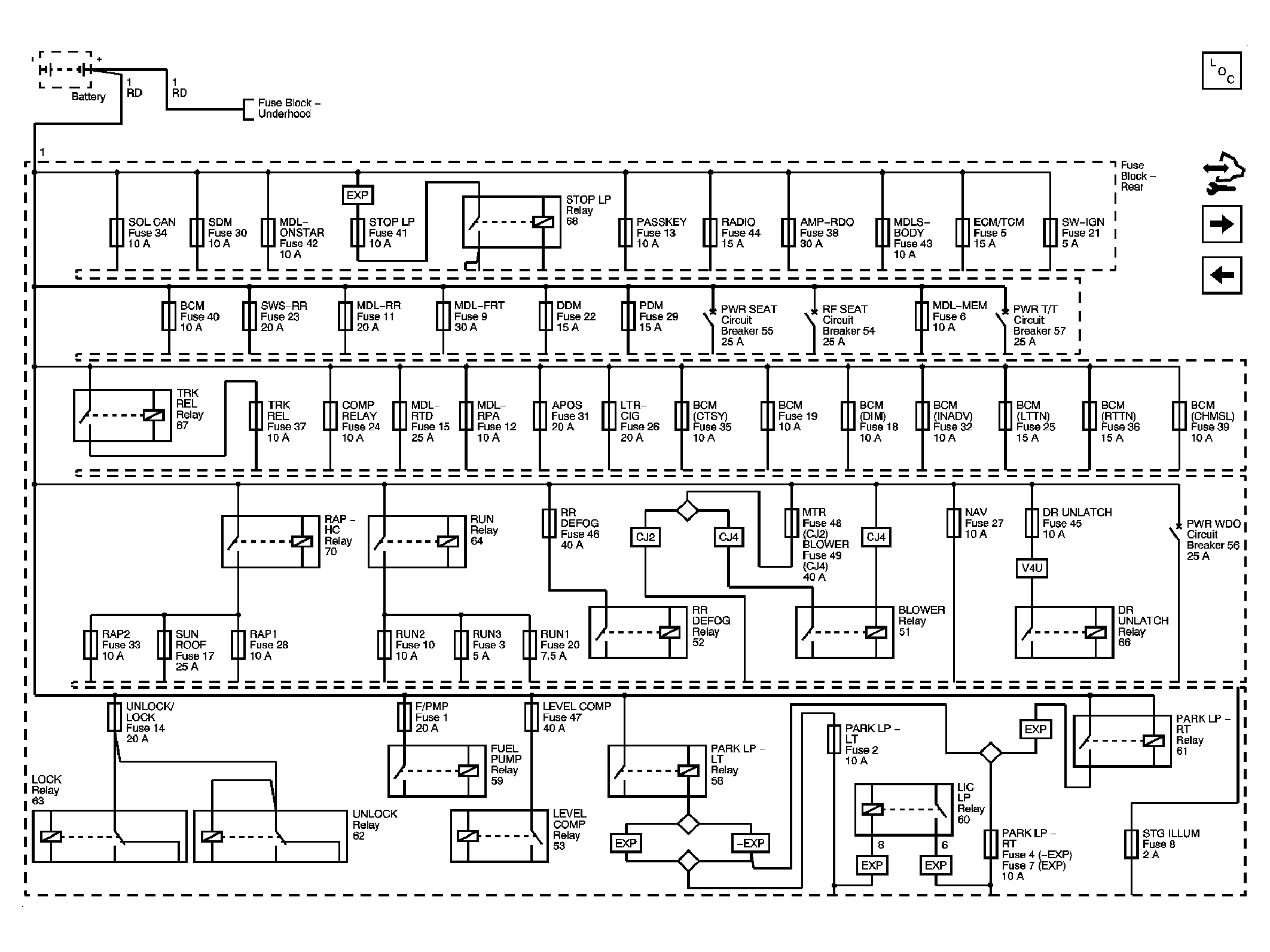

Fig 2: Rear Fuse Block B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

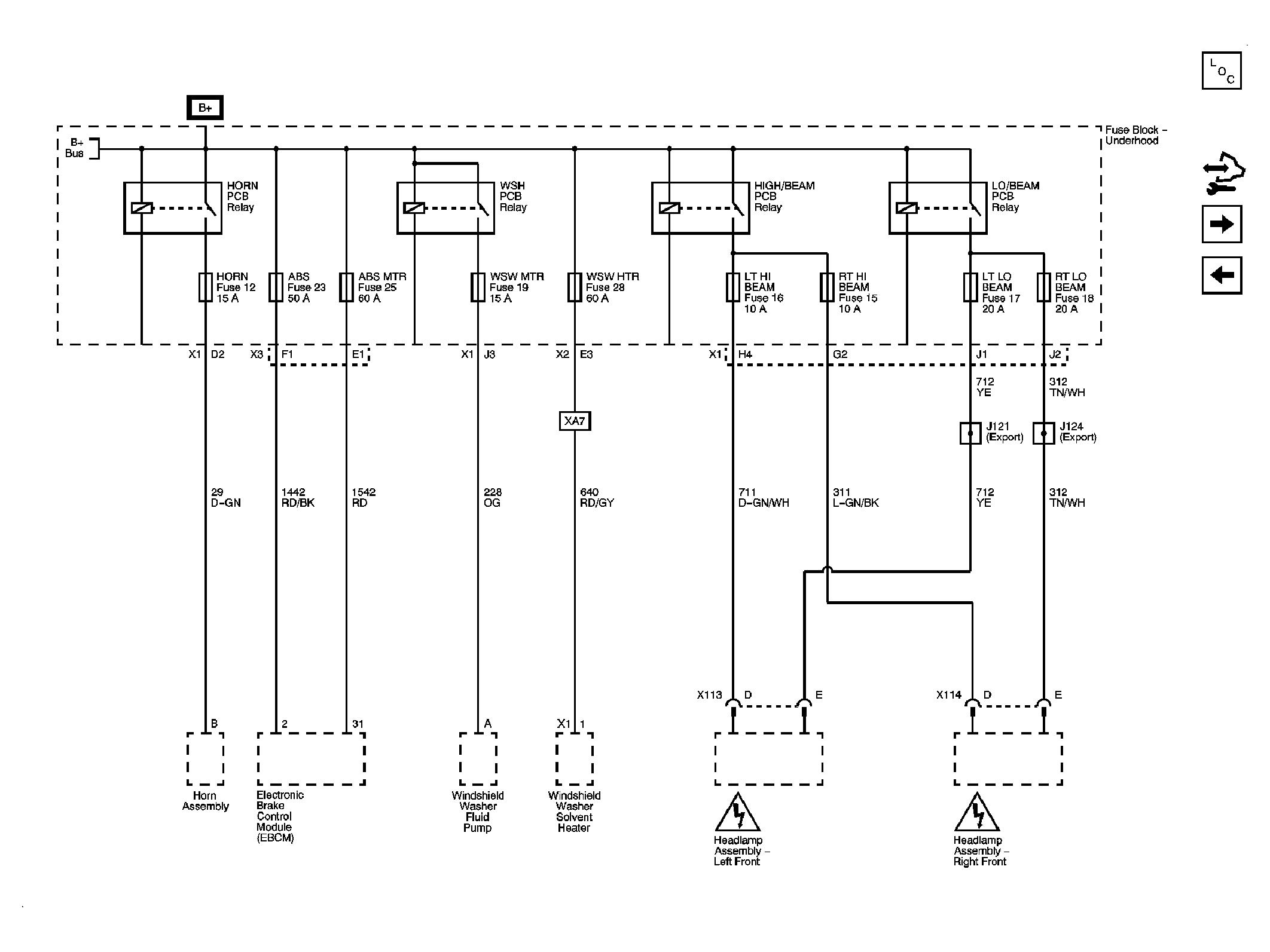

Fig 3: Underhood Fuse Block - HORN, WSH, HIGH/BEAM, LO/BEAM Relays, HORN, ABS 1, ABS 2, WSW/PUMP, WSW HTD, HI BEAM, LT LO BEAM, RT LO BEAM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Underhood Fuse Block - TRN/SIG, FOG LAMP, TRN/SIG Relays, LT CRN LAMP, FOG, RT CRN LAMP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

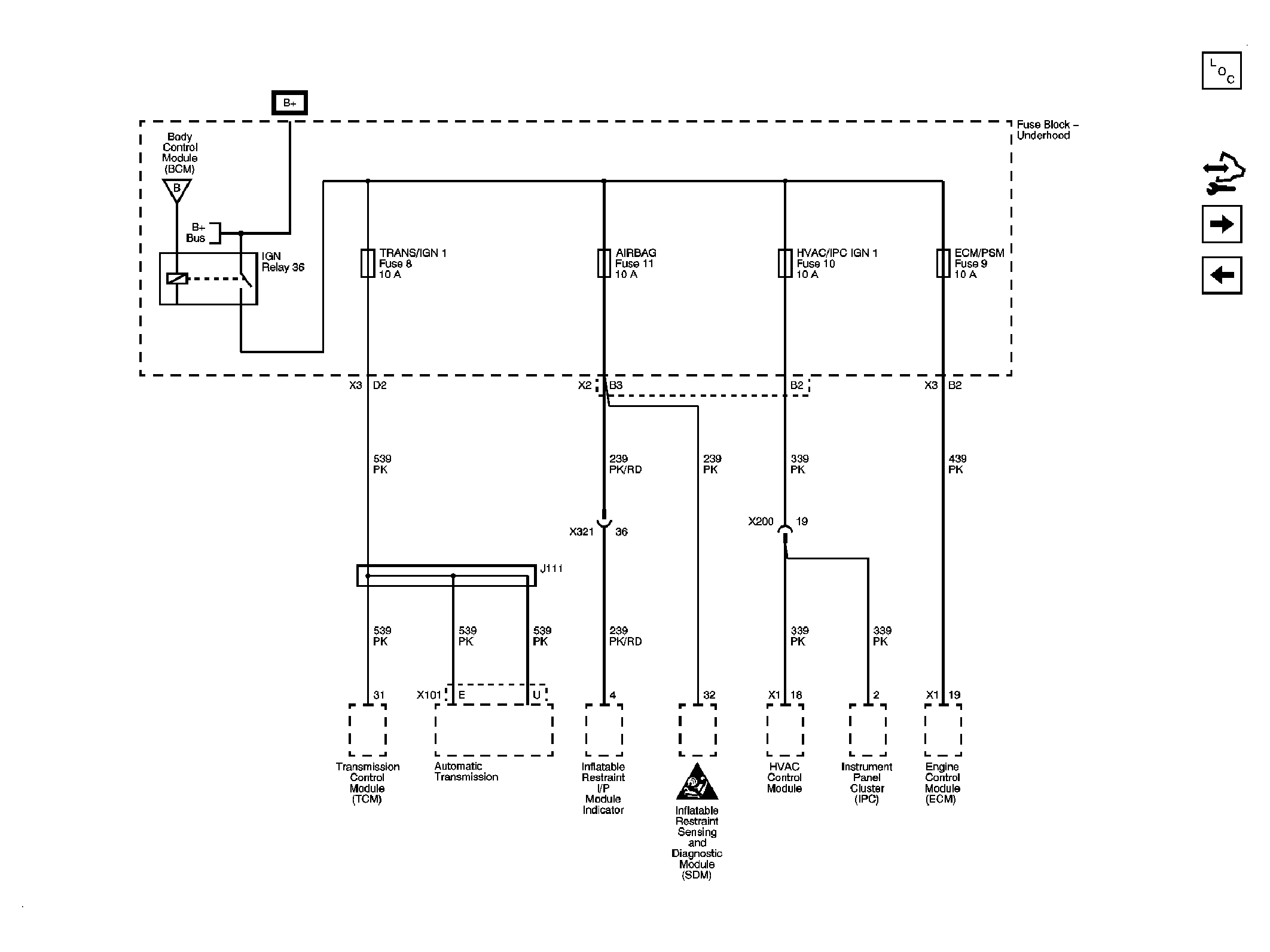

Fig 5: Underhood Fuse Block - RUN/CRANK Relay, TRANS IGN 3, AIRBAG IGN 3, HVAC/IPC, ECM IGN 3 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

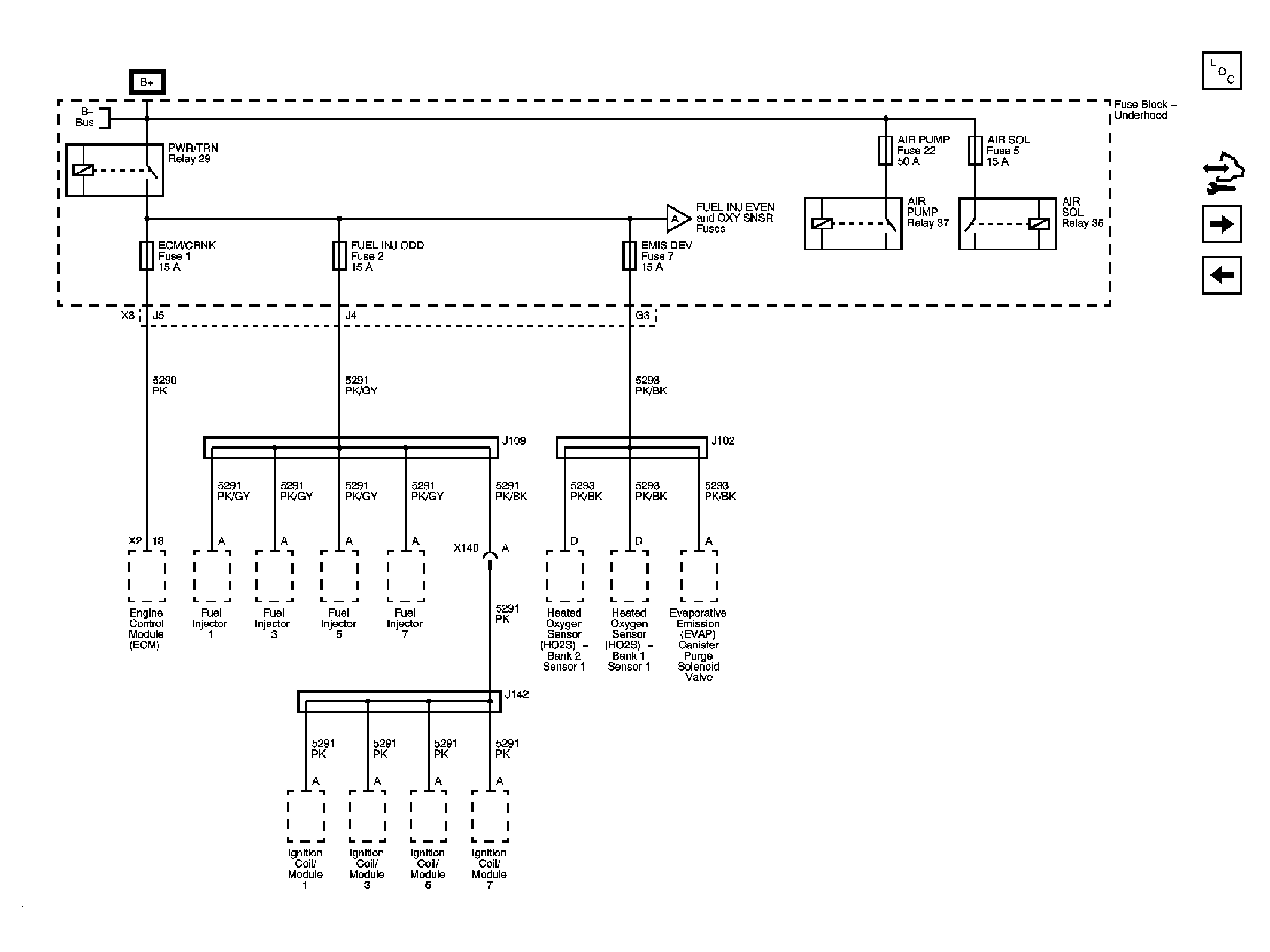

Fig 6: Underhood Fuse Block - PWR/TRAIN, AIR PUMP, AIR/SOL Relays, AIR PUMP, AIR/SOL, ECM/CRNK, INJ/COIL, PWR TRN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

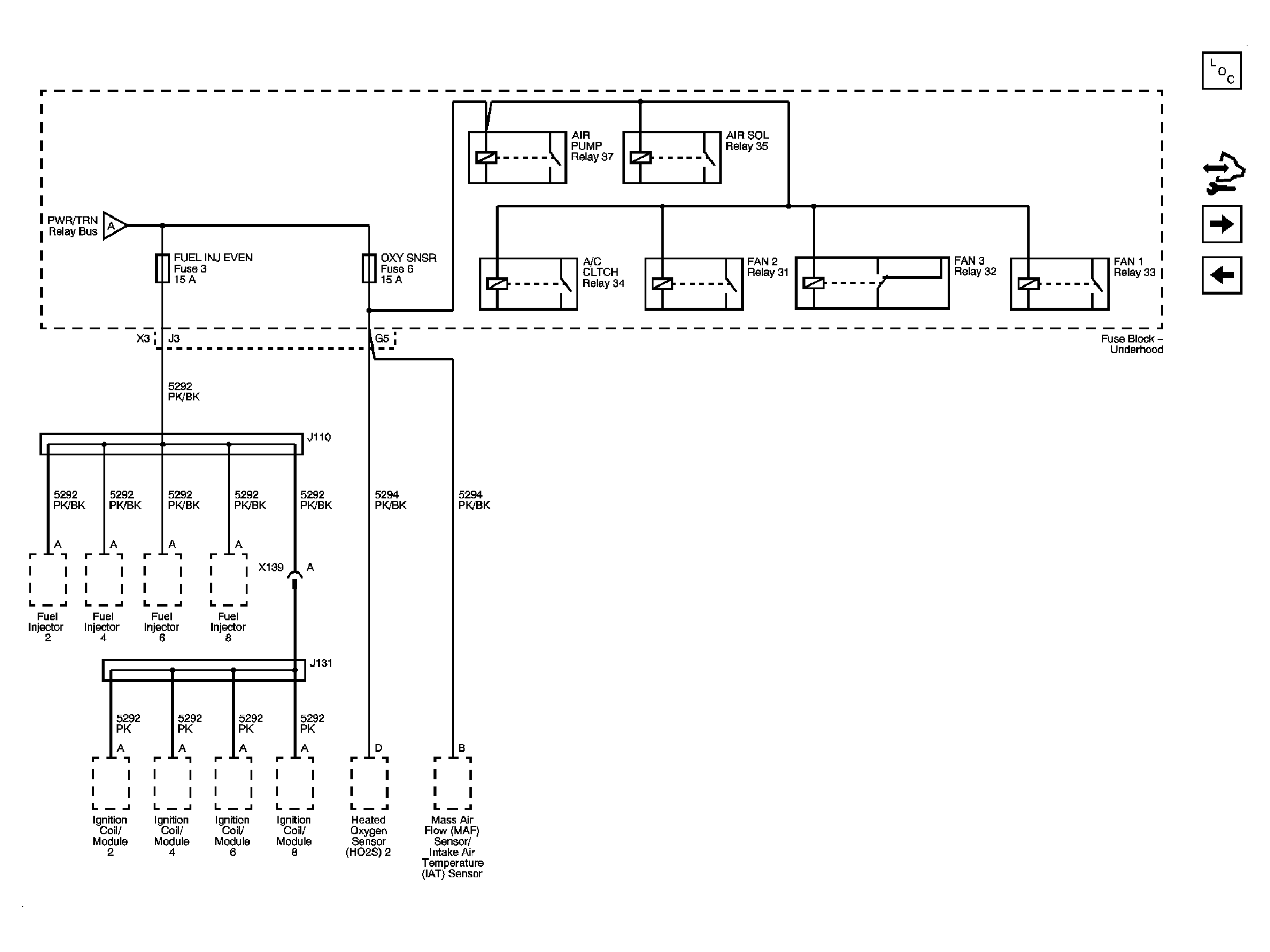

Fig 7: Underhood Fuse Block - AIR PUMP, AIR/SOL, A/C, COOL/FAN 2, COOL/FAN, COOL FAN 1 Relays, INJ/COIL, OXY PST Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

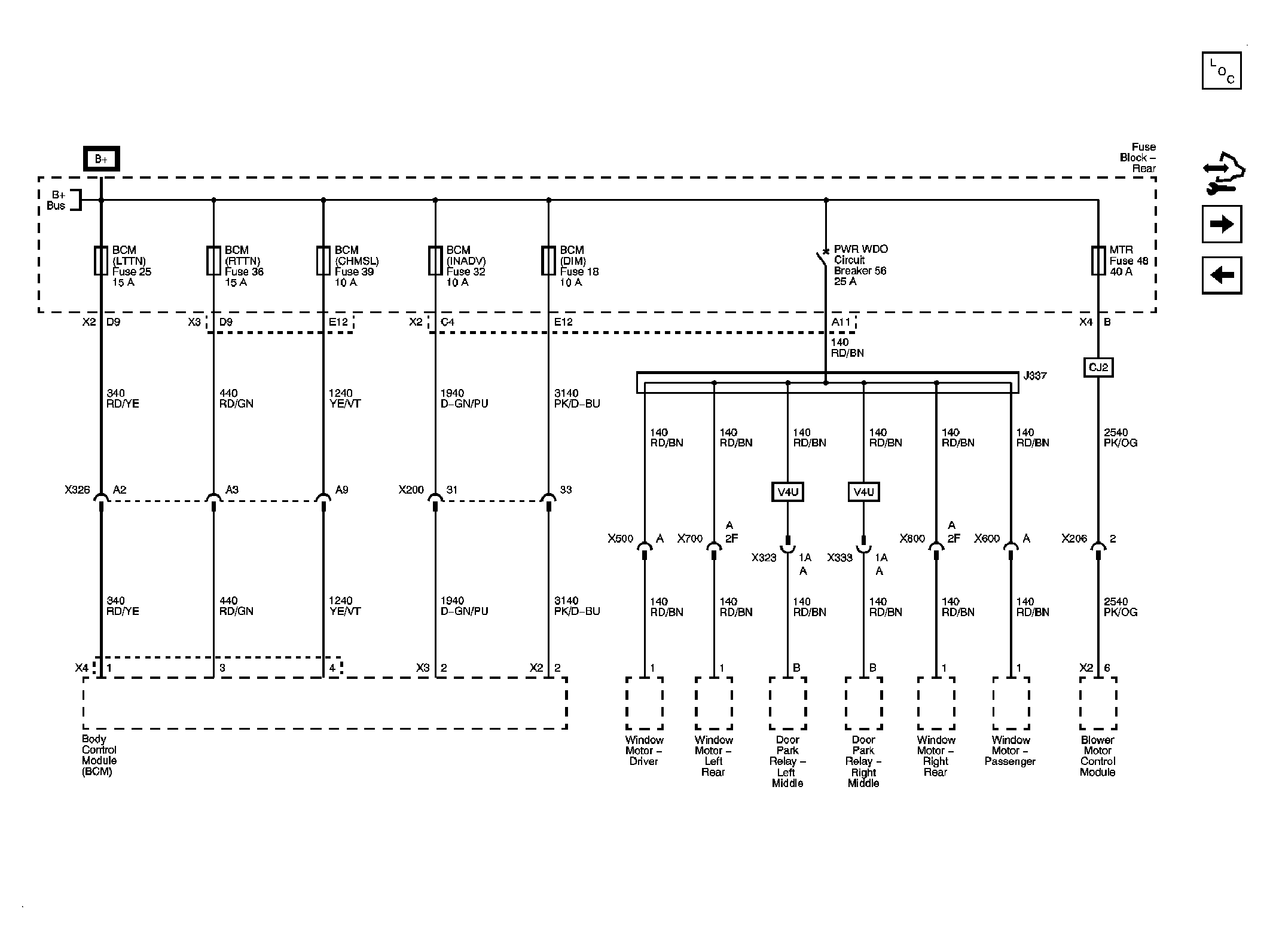

Fig 8: Rear Fuse Block - LT TRN/SIG, RR TRN/SIG, CHMSL/BCK-UP, INT LAMPS, SWTCH DM, HVAC BLWR Fuses, DR MDL/PWR WNDW Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

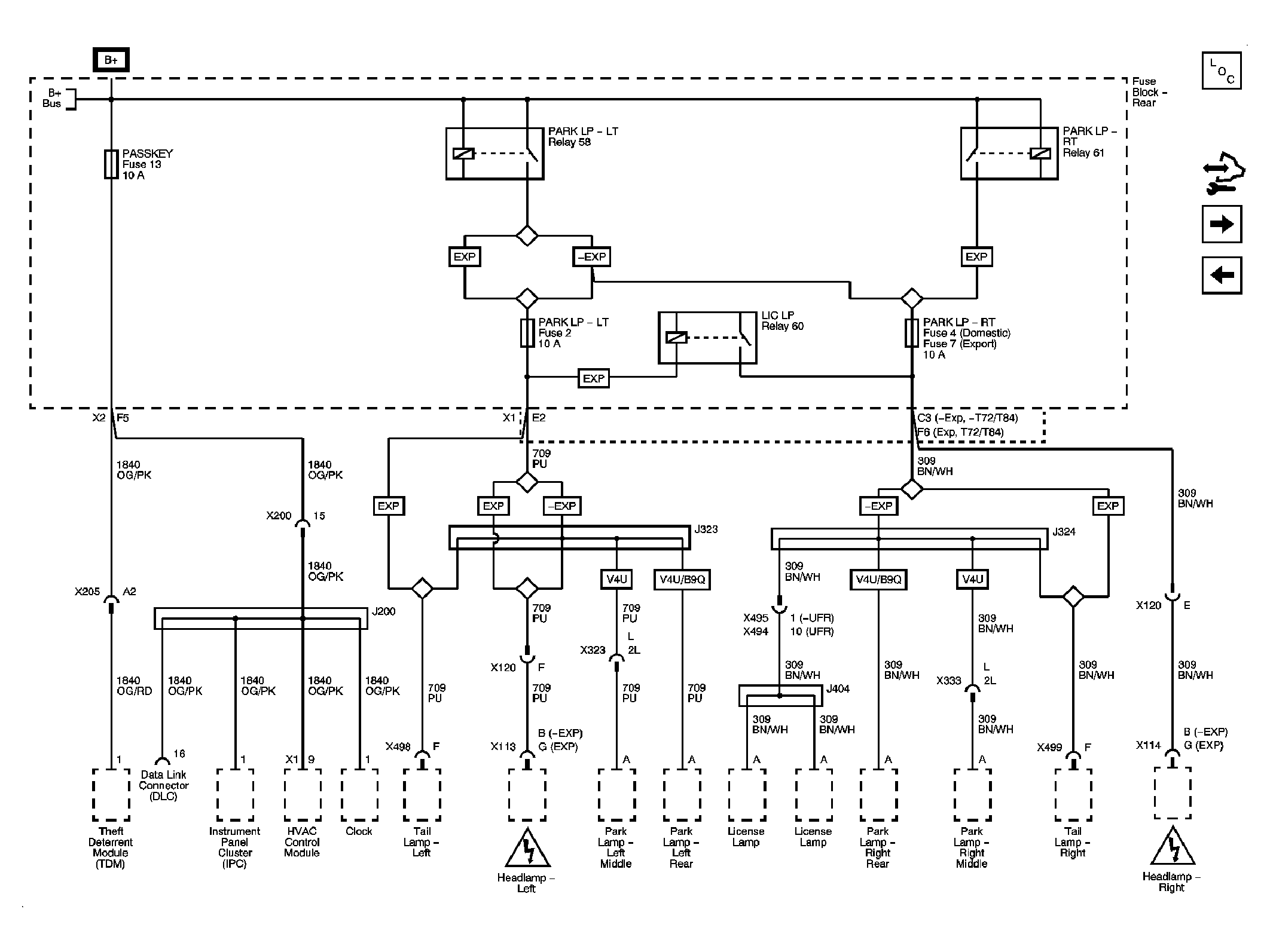

Fig 9: Rear Fuse Block - PRK LAMP, RT PRK LAMP (EXP), EXP LIC LAMP Relays, I/P HARN MDL, LT PRK LAMP, RT PRK LAMP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 10: Rear Fuse Block - AIRBAG, OBJ SNSR, ONSTAR/S-BAND, BODY HARN MDL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

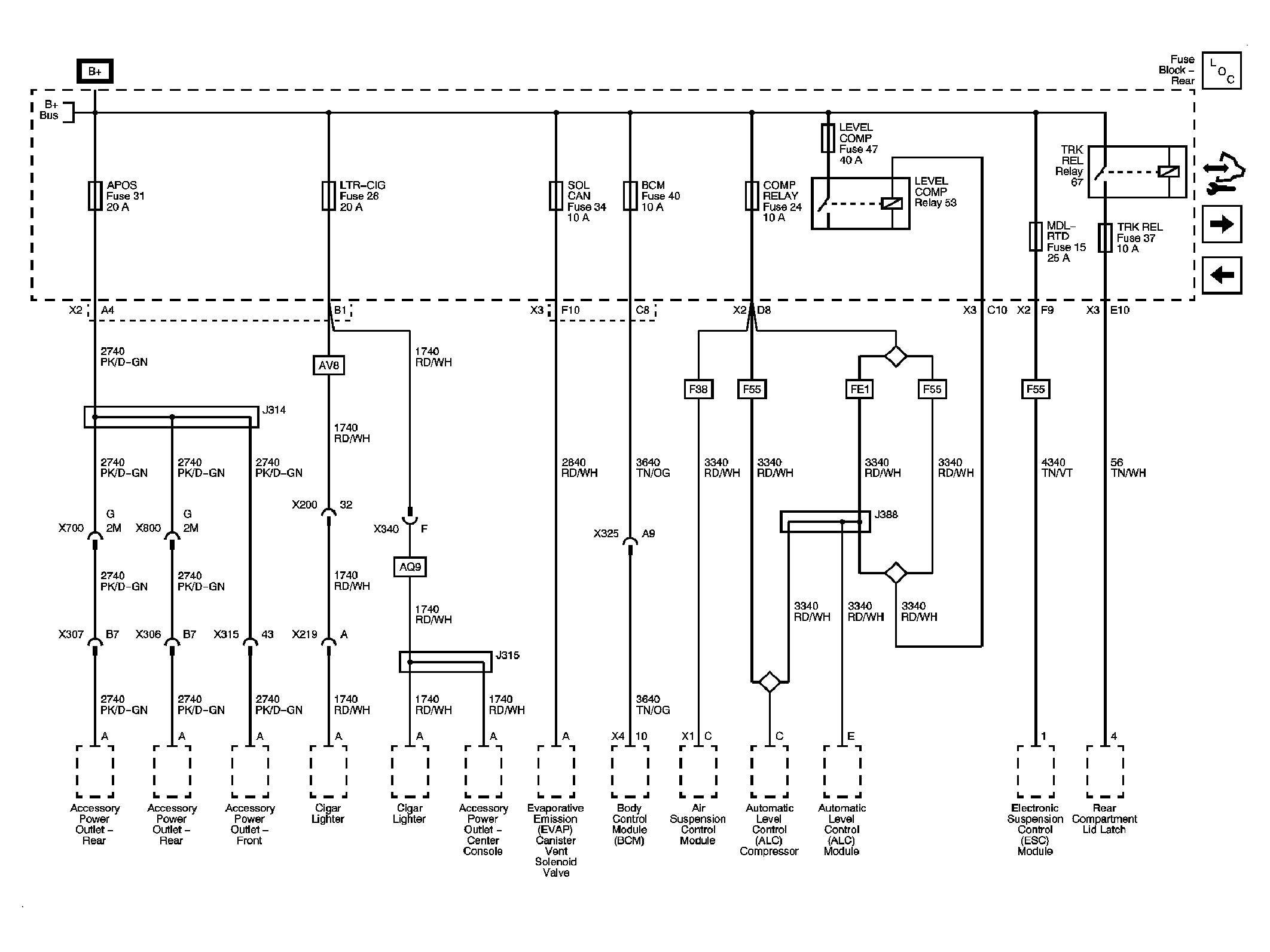

Fig 11: Rear Fuse Block - TRUNK RELSE Relay, AUX PWR, LTR/CNSL, CNSTR VENT, RVC SENSE, ELC MDL, MRTD MDL, TRUNK RELSE Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

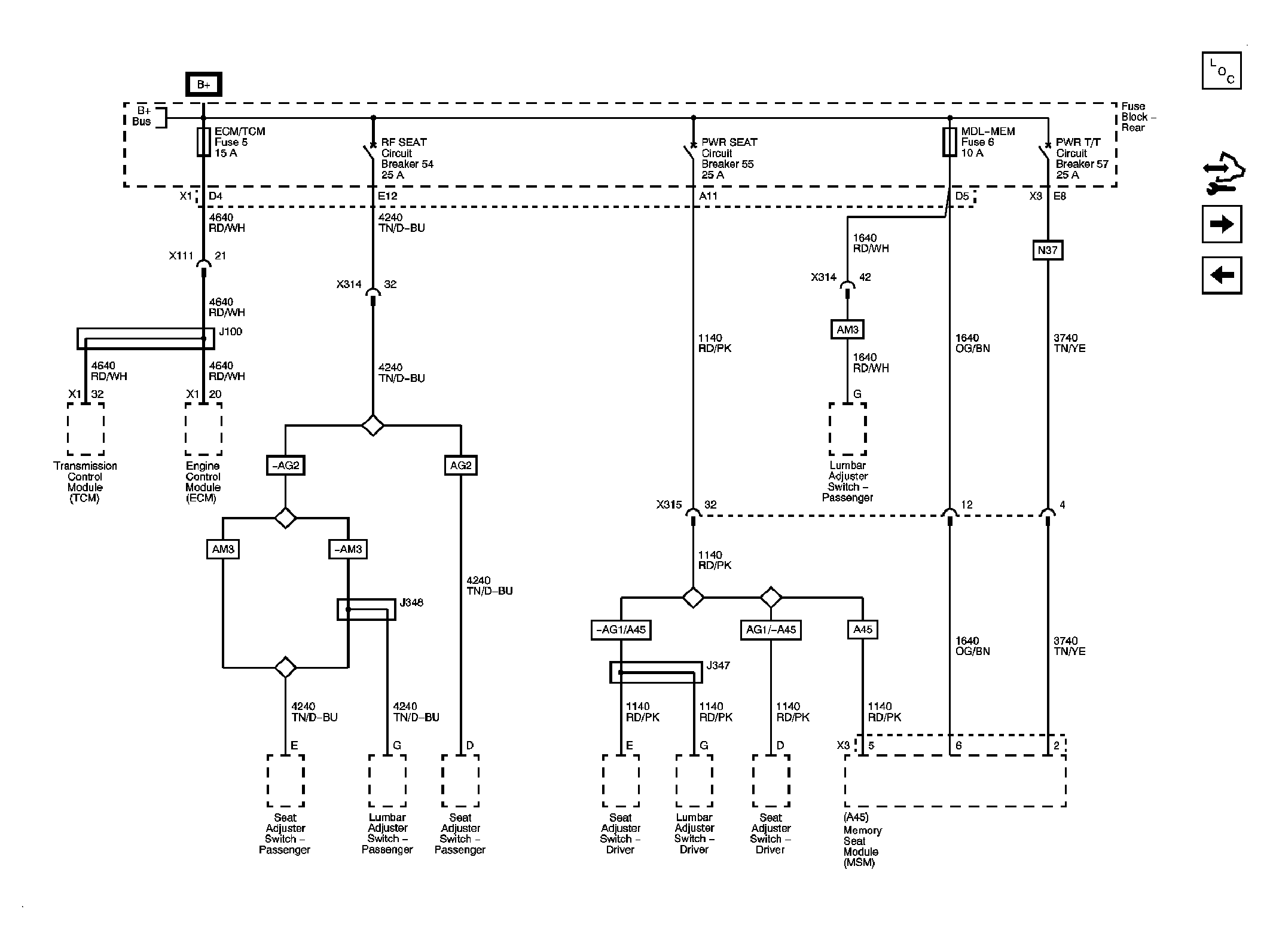

Fig 12: Rear Fuse Block - MSM/RT FRT PWR SEAT, MSM/LT FRT PWR SEAT, MSM/TILT STR WHL Circuit Breakers, ECM/TCM, MSM LOGIC/RF MASSAGE Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

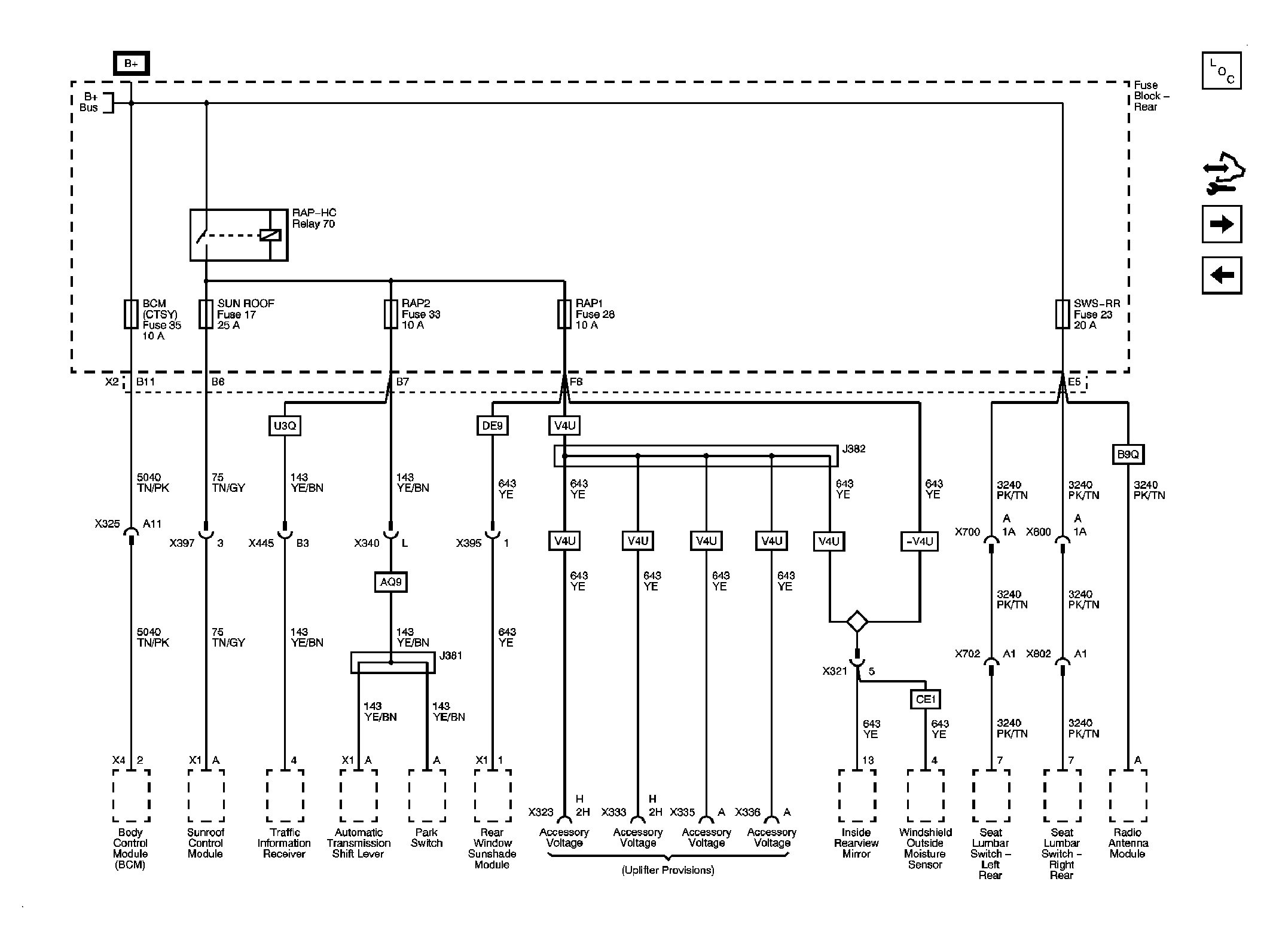

Fig 13: Rear Fuse Block - RAP Relay, CTSY/RF TRN, S/ROOF, SHFTR SOL, RAP, REAR SEAT LUM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

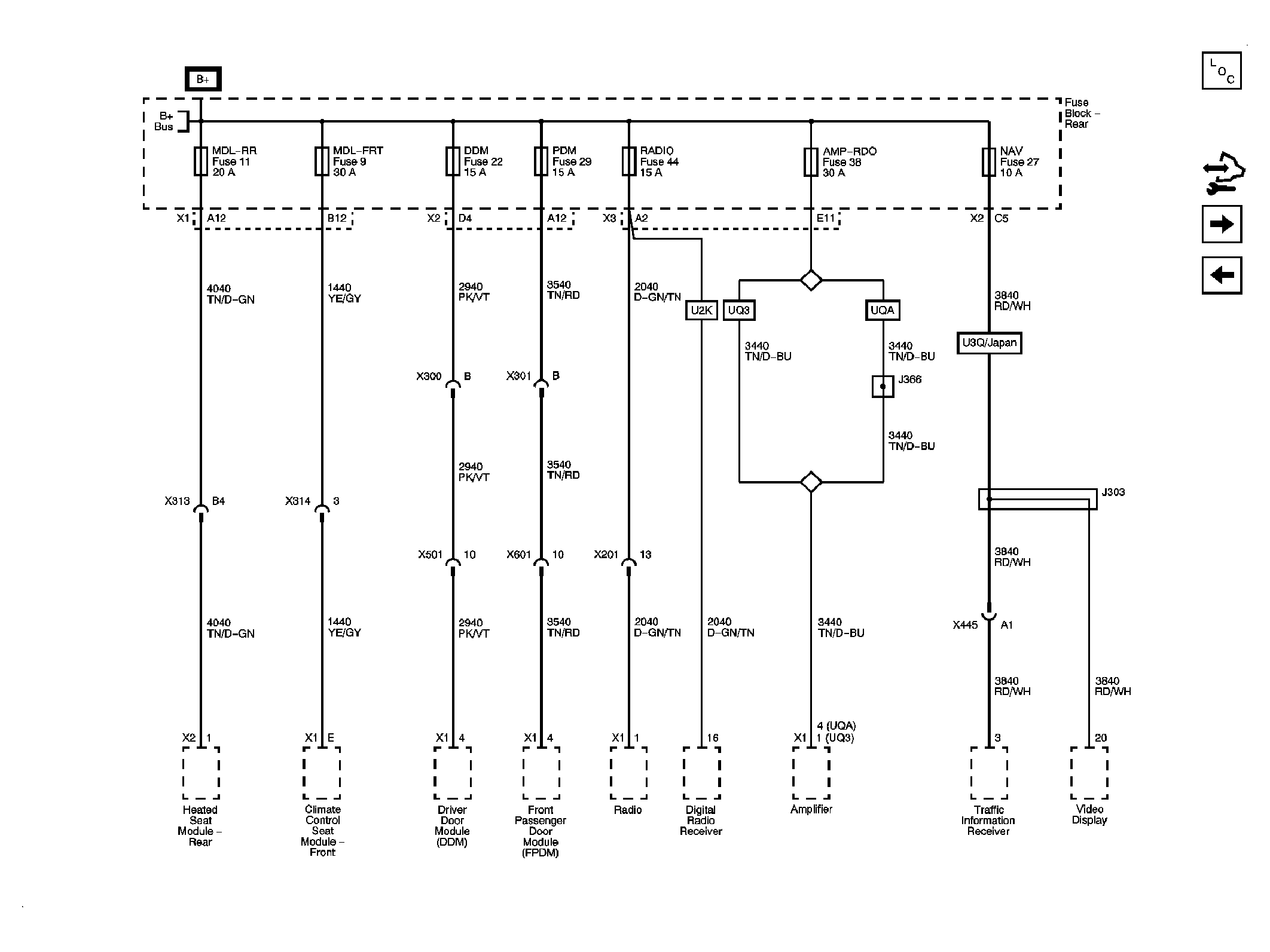

Fig 14: Rear Fuse Block - REAR HTD/SEAT, HTD/COOL, DDM, PDM, RDO, AMP, NAV Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

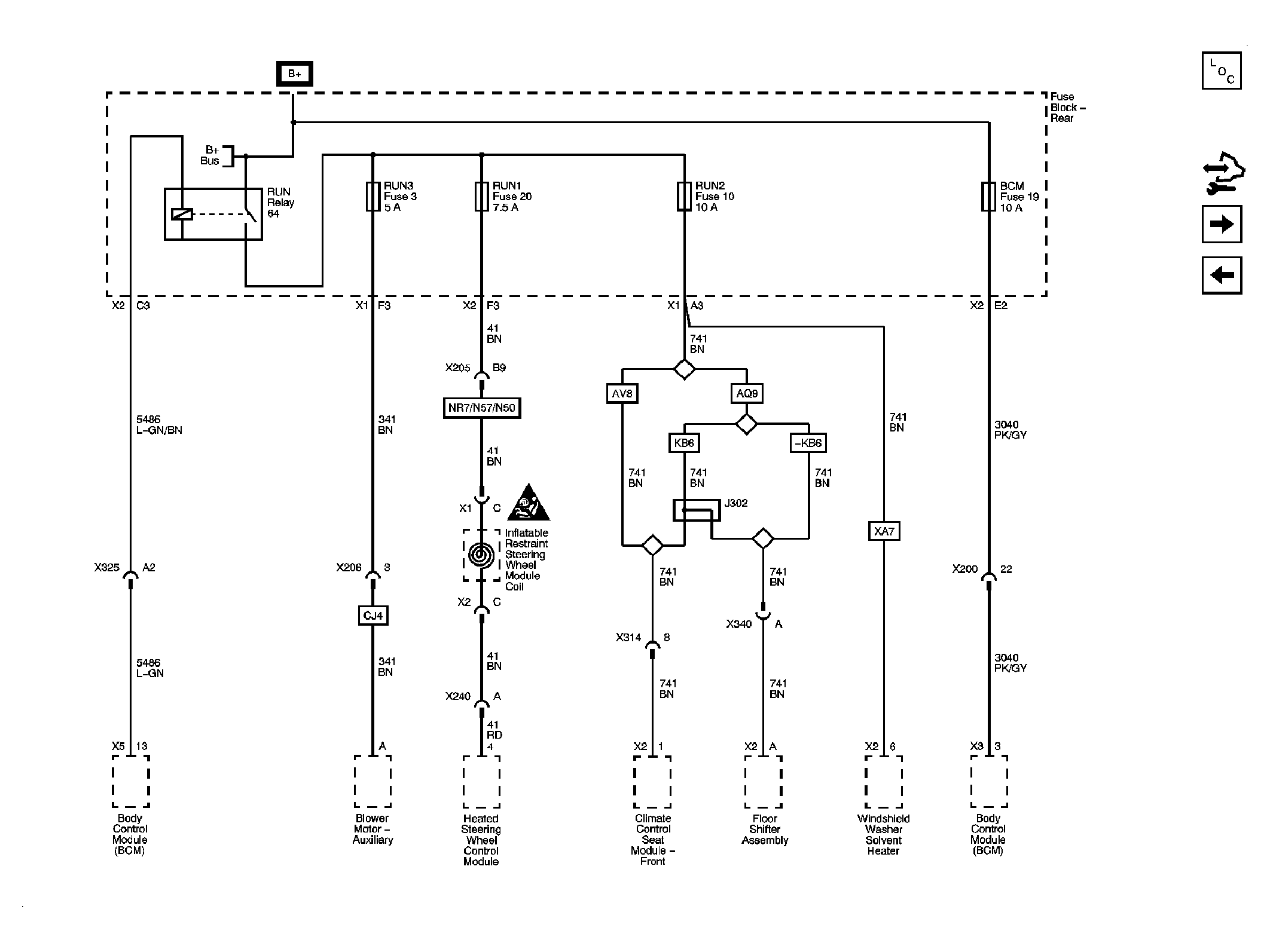

Fig 15: Rear Fuse Block - RUN Relay, REAR HVAC, HTD STR, HTD/COOL/IGN3, BCM LOGIC Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

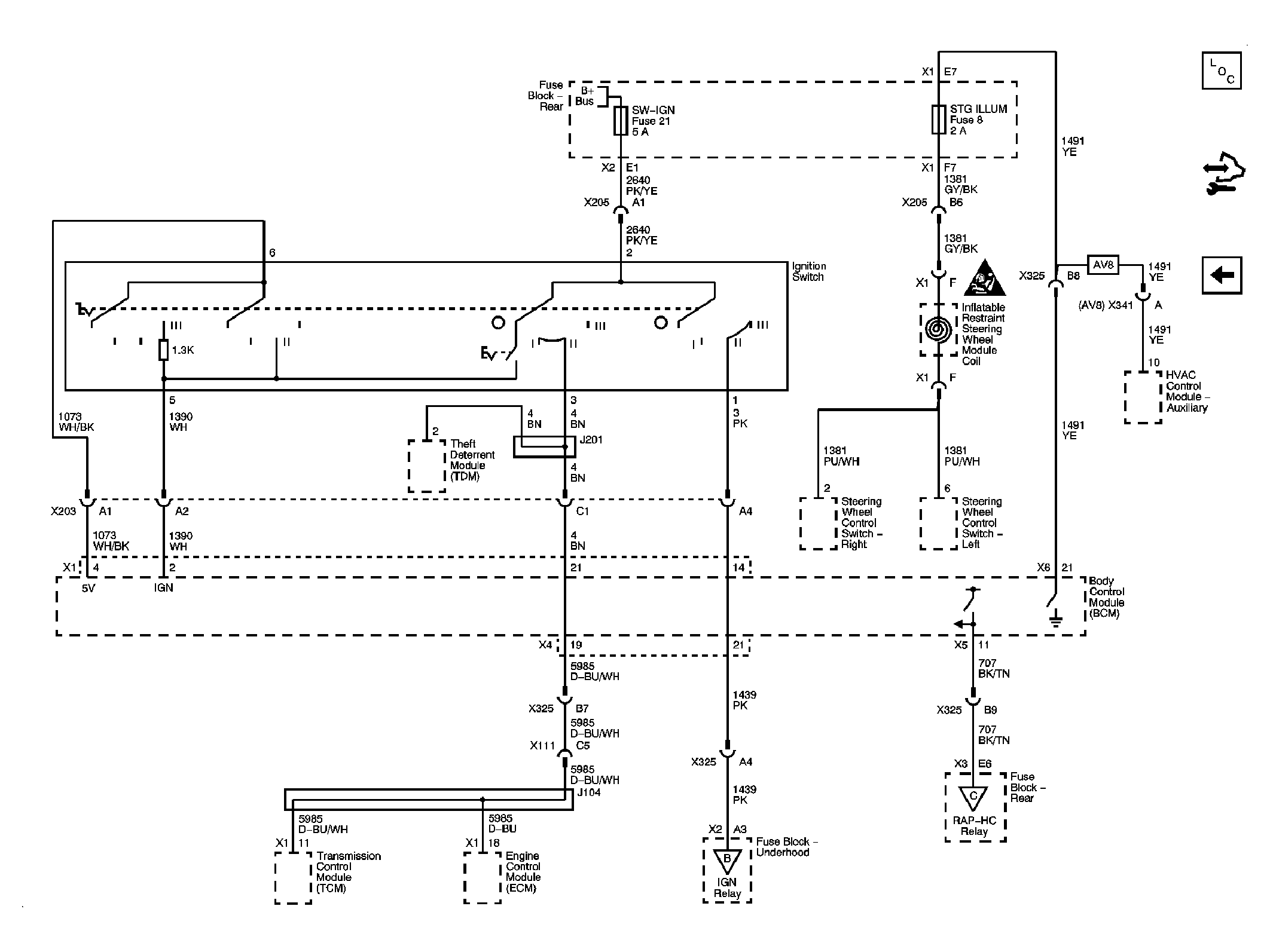

Fig 16: Rear Fuse Block - IGN SWITCH, STR/WHL/ILLUM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
