Antilock Brake System Schematics

WARNING: This page is about a different car, the 2008 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

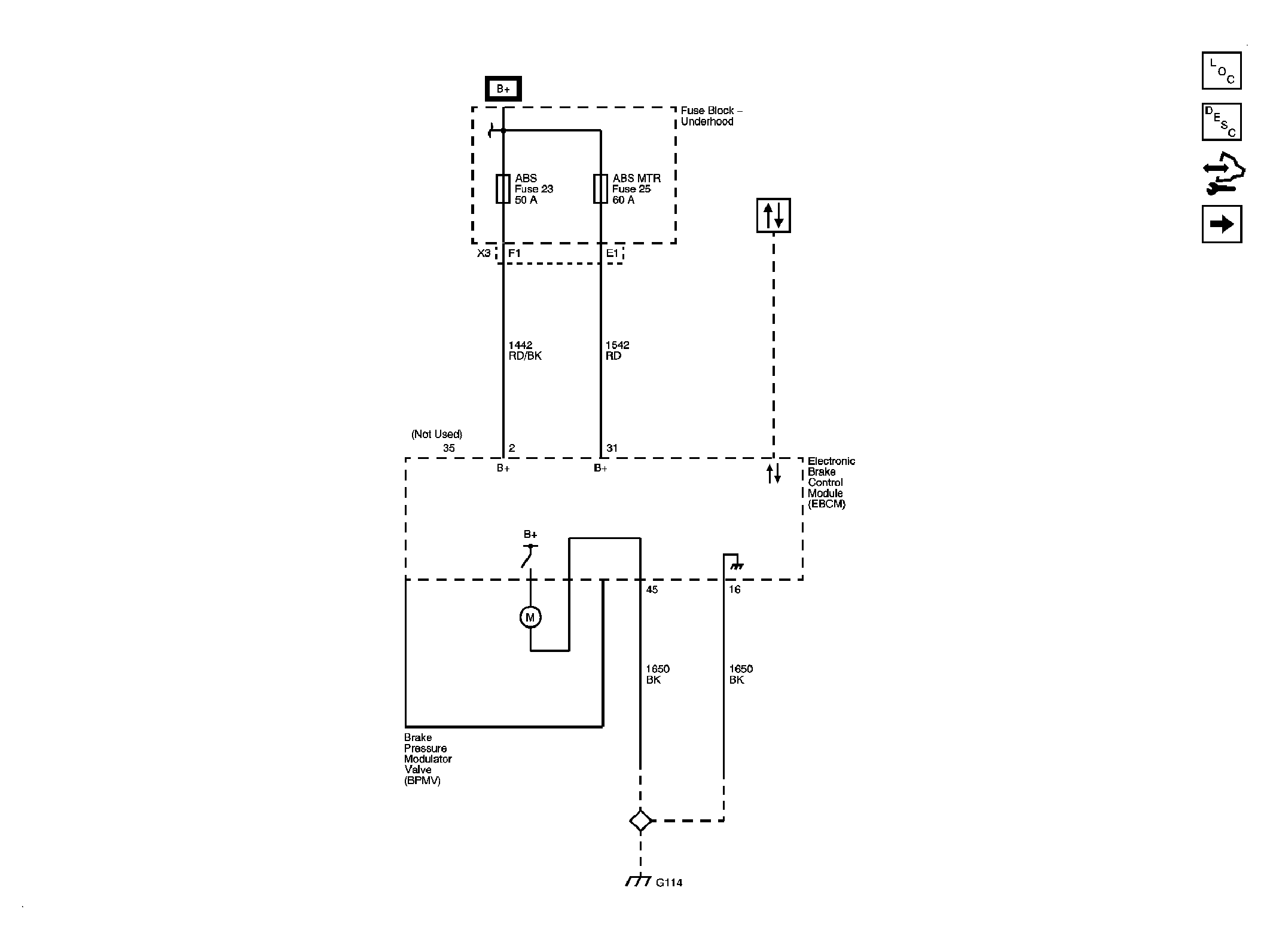

Fig 1: Power & Ground Schematic

Courtesy of GENERAL MOTORS CORP.

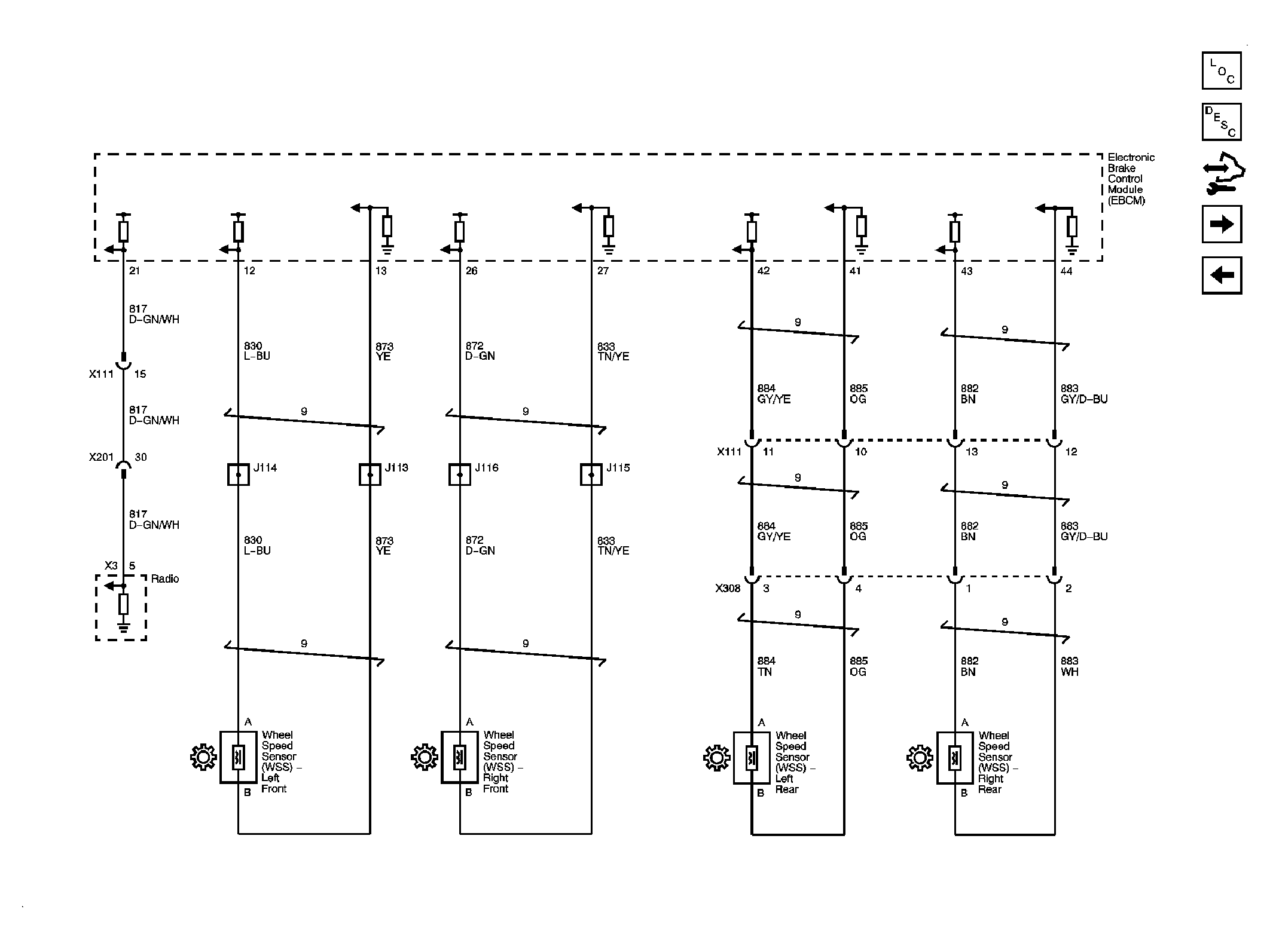

Fig 2: Wheel Speed Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

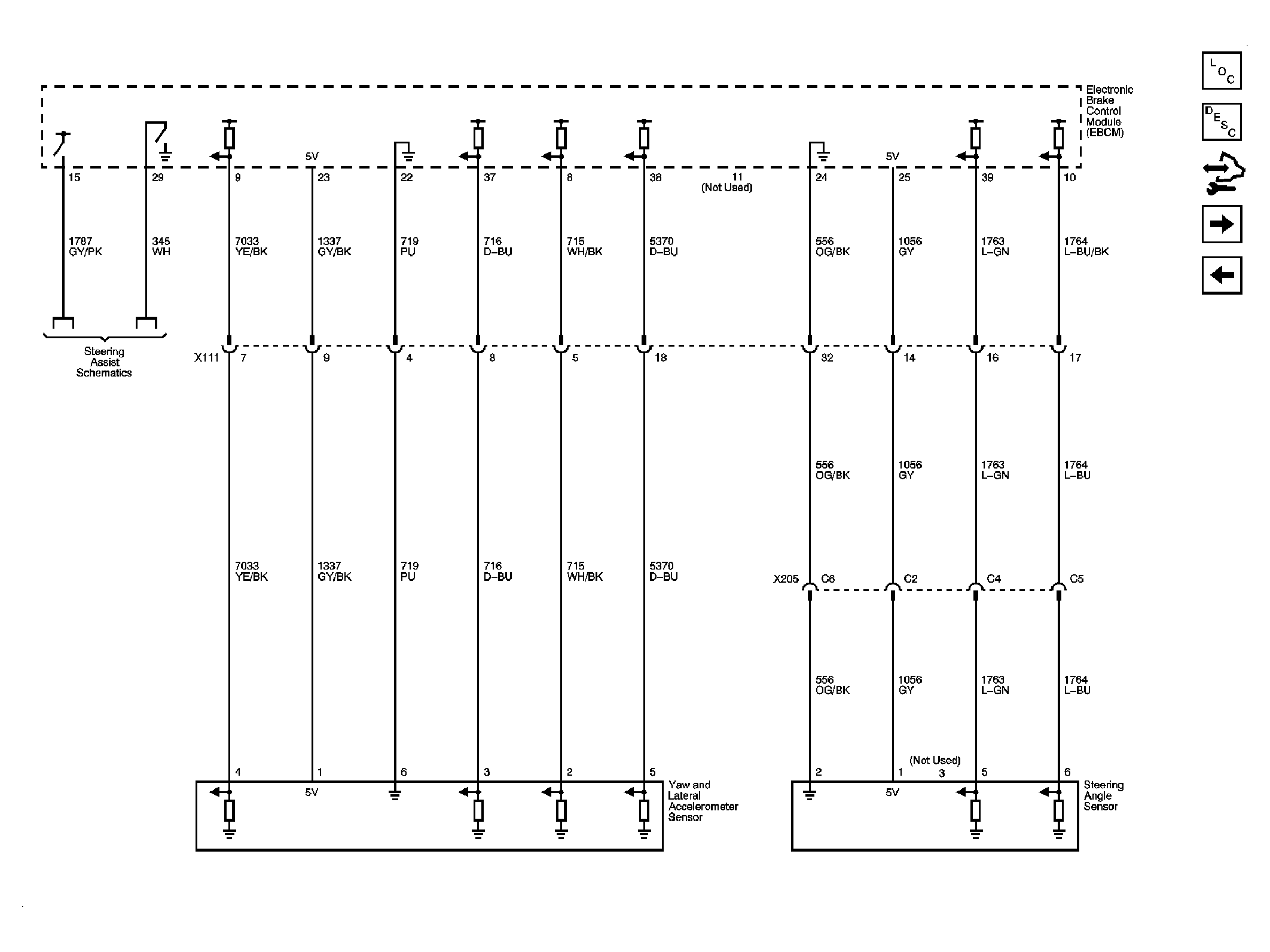

Fig 3: Yaw & Lateral Acceleration, Steering Angle Sensor Schematic

Courtesy of GENERAL MOTORS CORP.

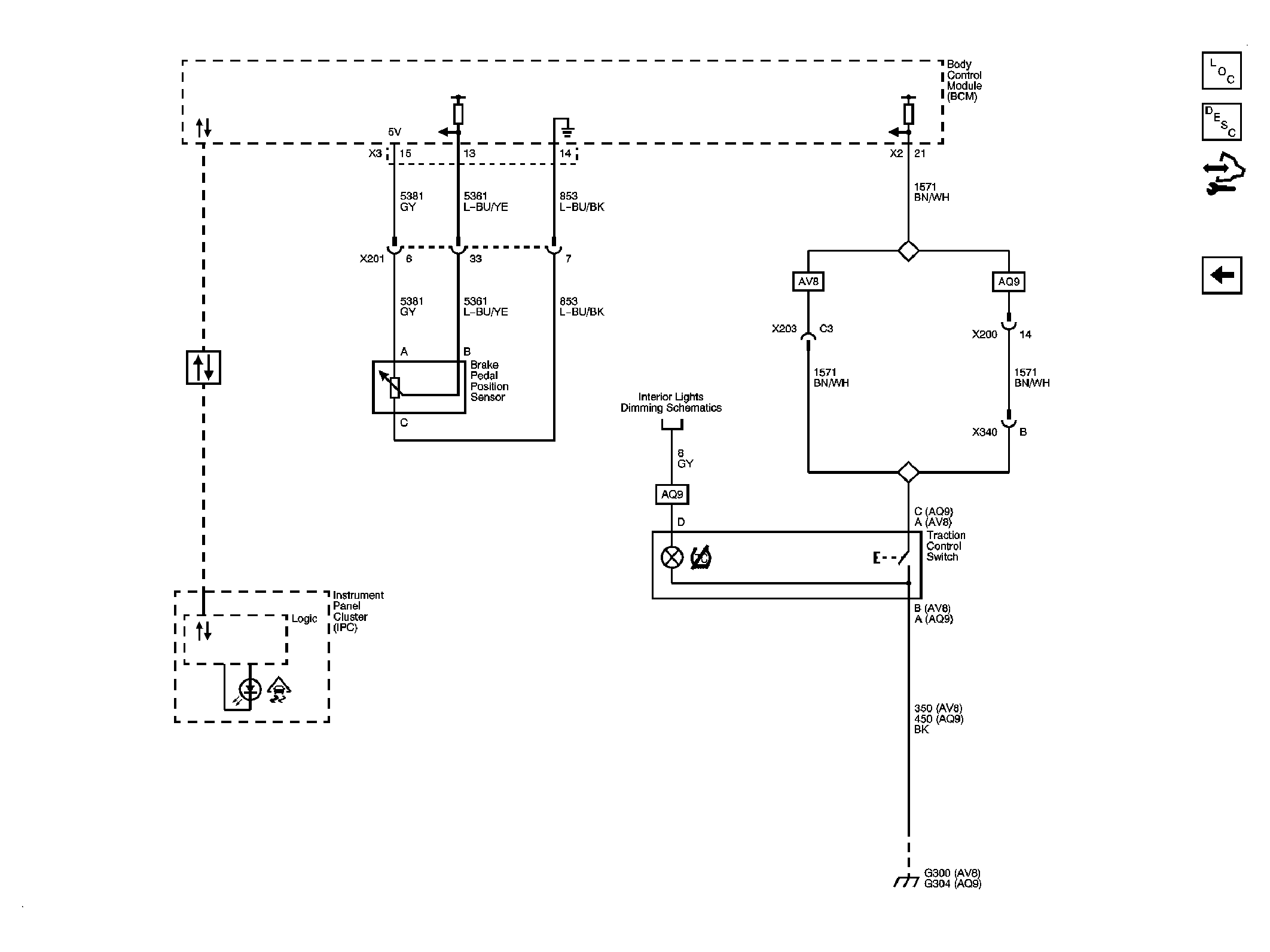

Fig 4: Brake Pedal Position, Traction Control Switch, Data Link Communications Schematic

Courtesy of GENERAL MOTORS CORP.
