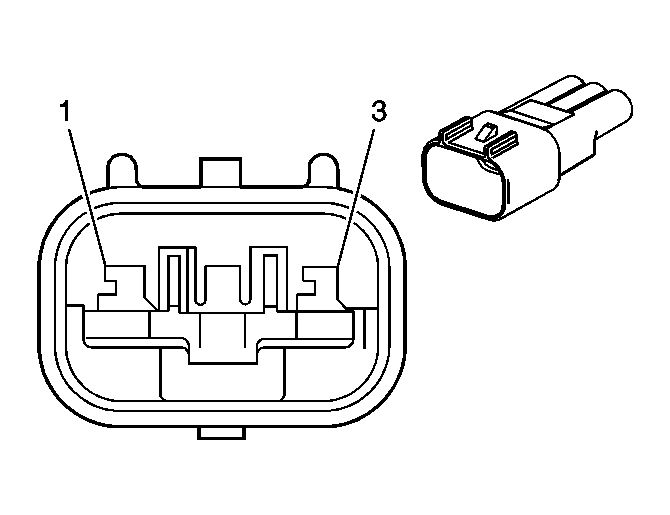

Outside Rearview Mirror - Driver (D48)
Courtesy of GENERAL MOTORS CORP. Outside Rearview Mirror - Driver (D48)
| Pin |
Wire |
Circuit |
Function |
| 1 |
0.35 WH |
81 |
Driver Mirror Motor Left Control (SKY) |
| 0.35 L-BU |
82 |
Driver Mirror Motor Left Control (Solstice) |
| 2 |
0.35 TN |
329 |
Driver Mirror Motor Supply Voltage |
| 3 |
0.35 L-GN |
89 |
Driver Mirror Motor Up Control (SKY) |
| 0.35 YE |
88 |
Driver Mirror Motor Up Control (Solstice) |
Connector Part Information
- OEM: E-5965-003
- Service: 88988356
- Description: 3-Way M 1.5 Series, Sealed (BK)
|
Terminal Part Information
- Terminal/Tray: 7114-4102-08/9
- Core/Insulation Crimp: E/1
- Release Tool/Test Probe: 12094430/J-35616-3 (GY)
|
