Center High Mounted Stop Lamp (CHMSL)

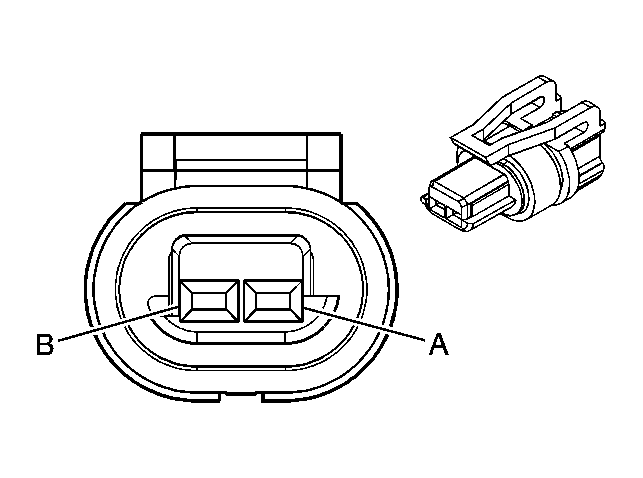

Fig 1: Center High Mounted Stop Lamp Connector End View
GM1520357Courtesy of GENERAL MOTORS CORP.
Center High Mounted Stop Lamp (CHMSL)

Pin Wire Circuit Function
A 0.5 L-BU 20 Stop Lamp Supply Voltage
B 0.5 BK 750 Ground
Connector Part Information
  • OEM: 15449029
  • Service: 88987993
  • Description: 2-Way F GT 150 Series, Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 12191819/8
  • Core/Insulation Crimp: E/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
