Moveable Window Schematics

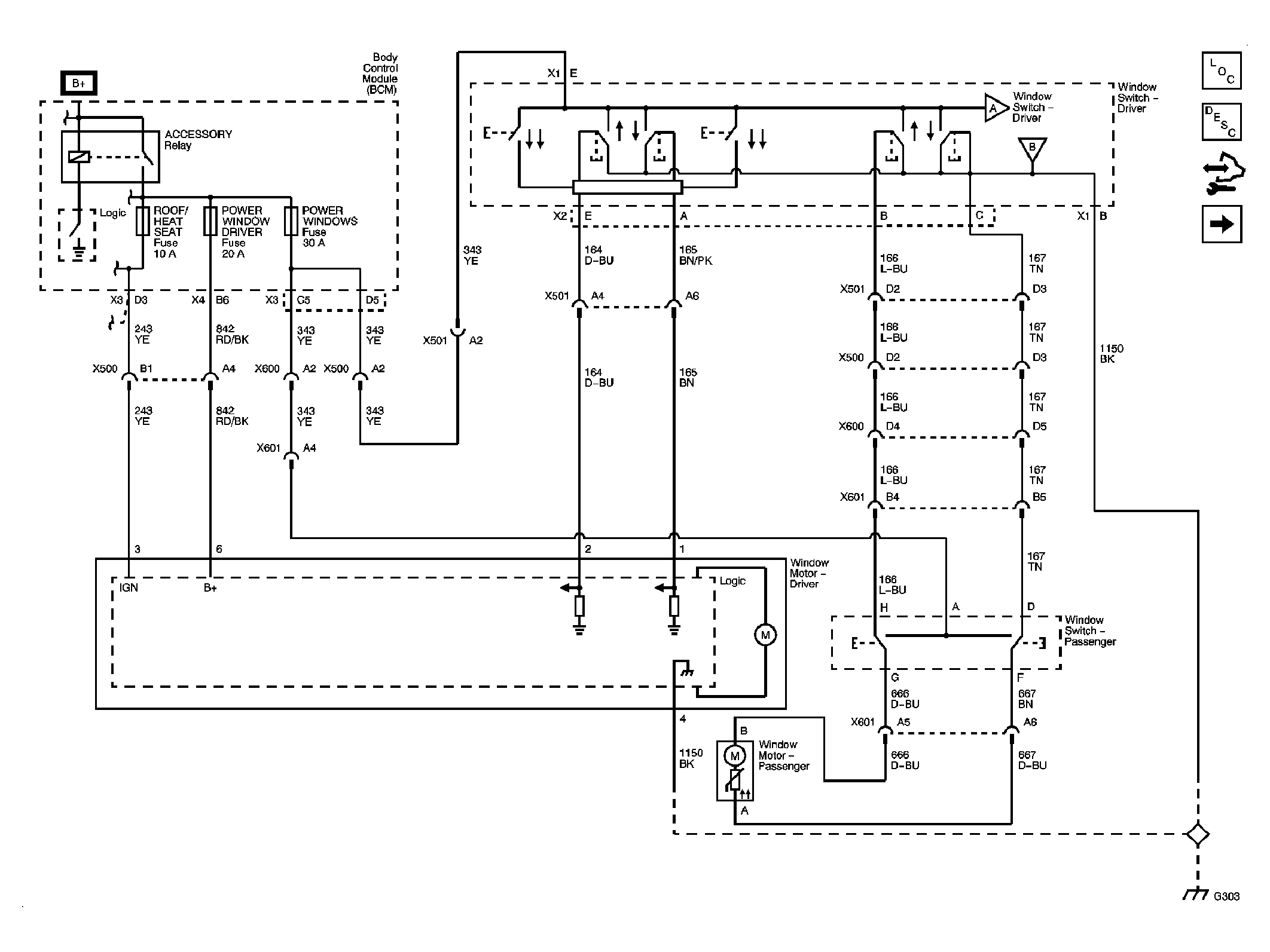

Fig 1: Power and Ground Front Windows Schematic

GM1898284

Courtesy of GENERAL MOTORS CORP.

Fig 2: Rear Windows Schematic

GM1898289

Courtesy of GENERAL MOTORS CORP.
