Data Communication Schematics

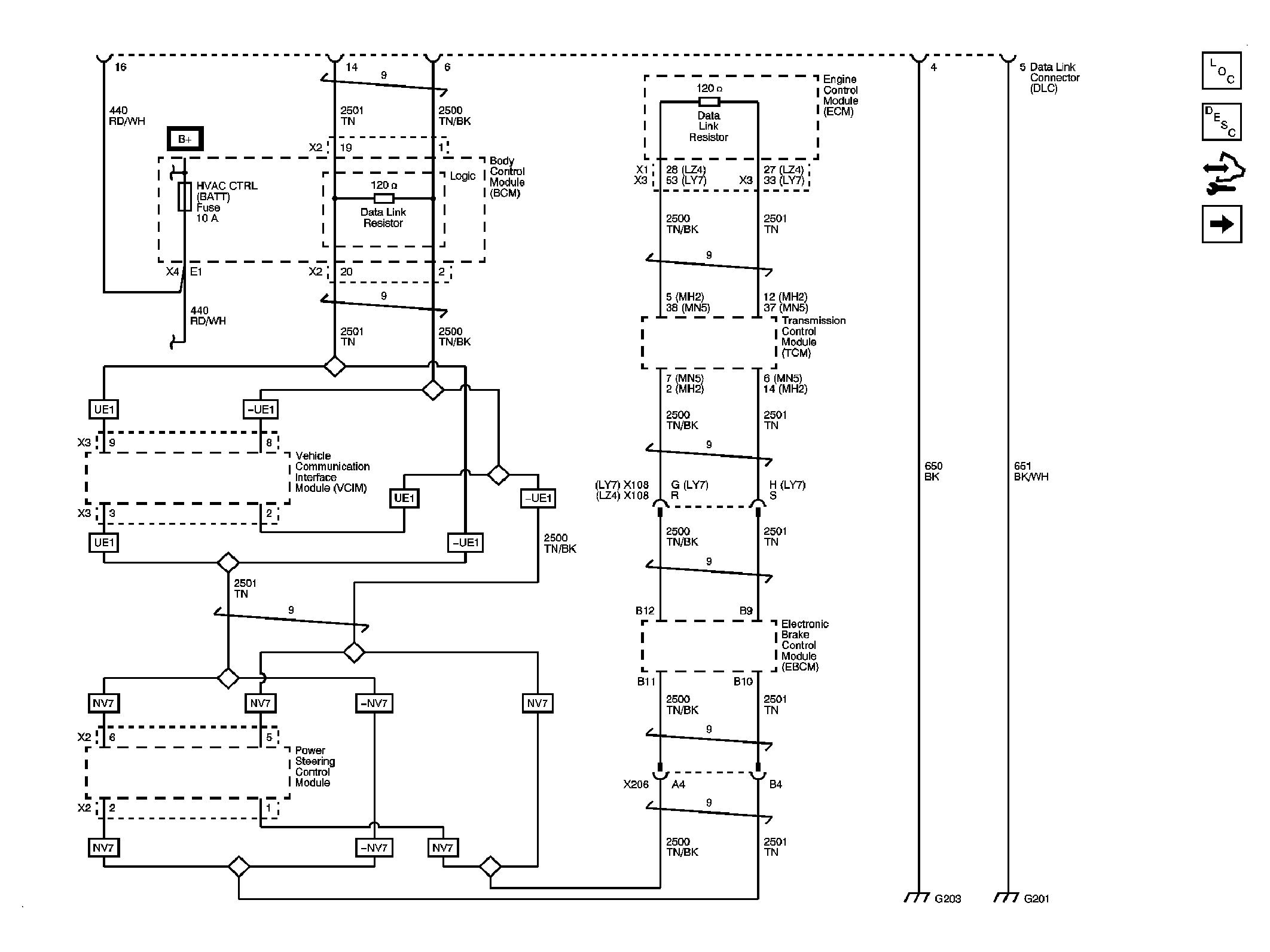

Fig 1: Power, Ground and High Speed Serial Data (w/o HP7) Schematic
GM1899529Courtesy of GENERAL MOTORS CORP.

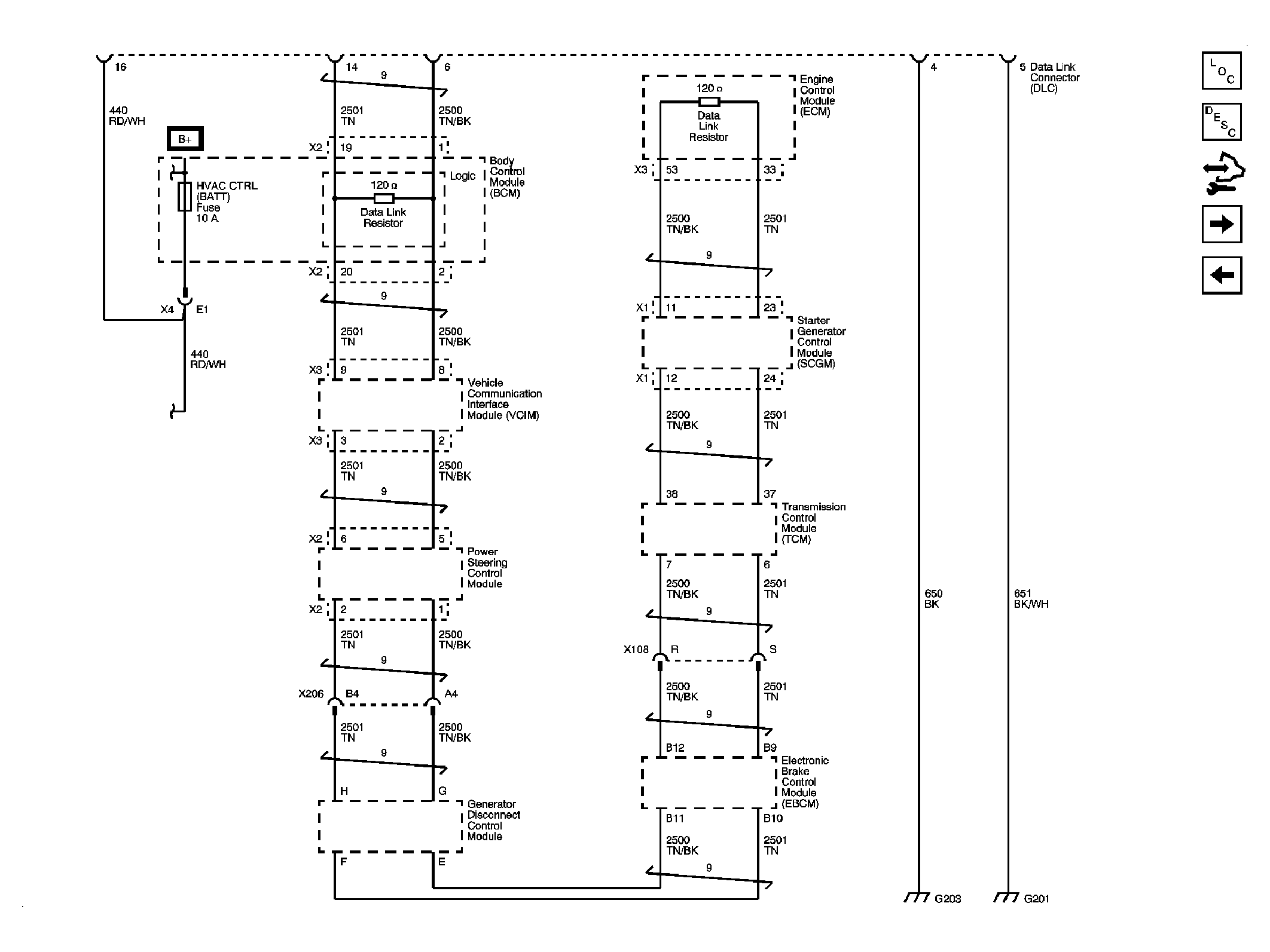

Fig 2: Power, Ground and High Speed Serial Data (HP7) Schematic
GM1899606Courtesy of GENERAL MOTORS CORP.

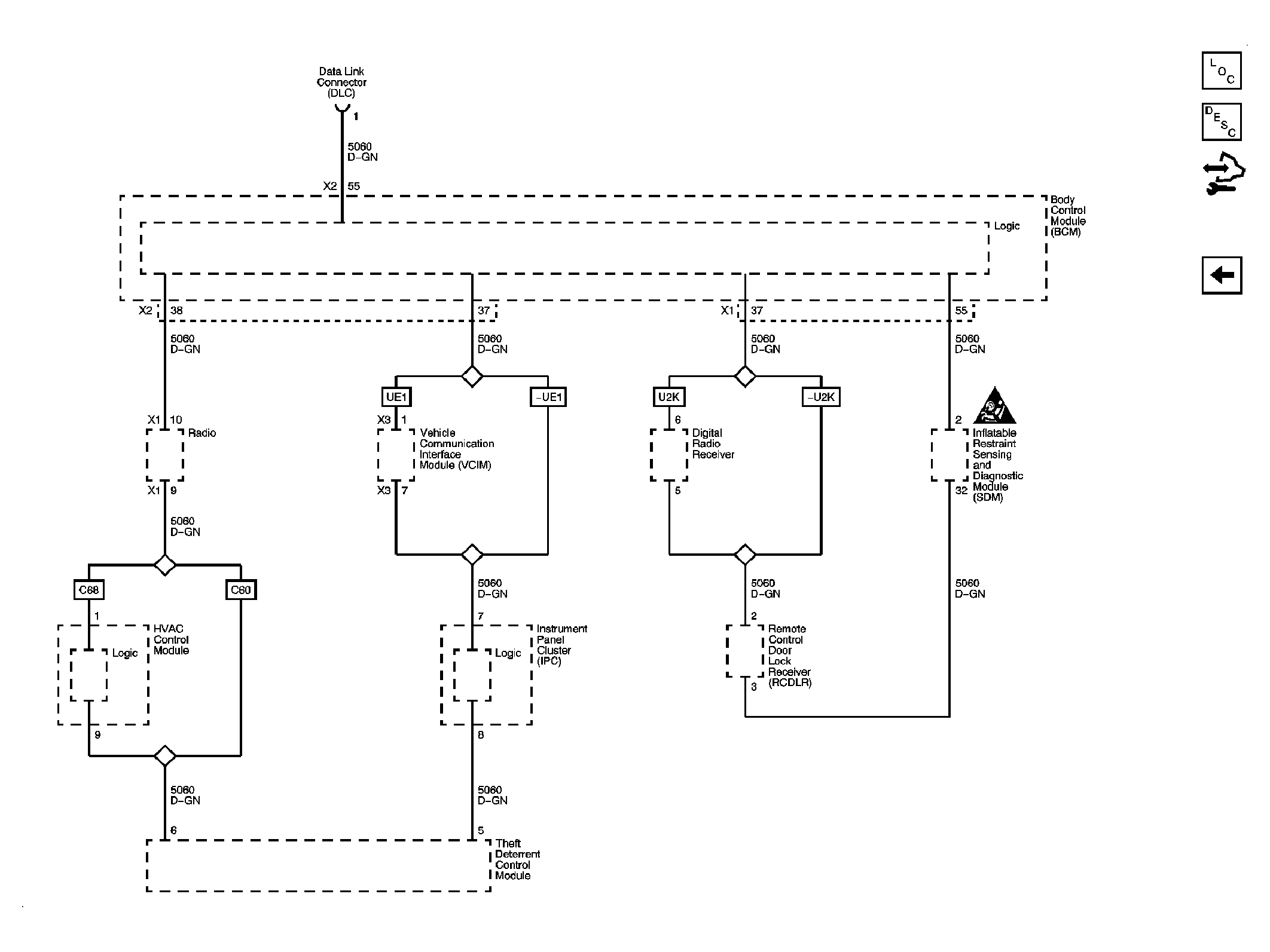

Fig 3: Low Speed Serial Data Schematic
GM1899533Courtesy of GENERAL MOTORS CORP.
