Wheels/Vehicle Underbody Component Views

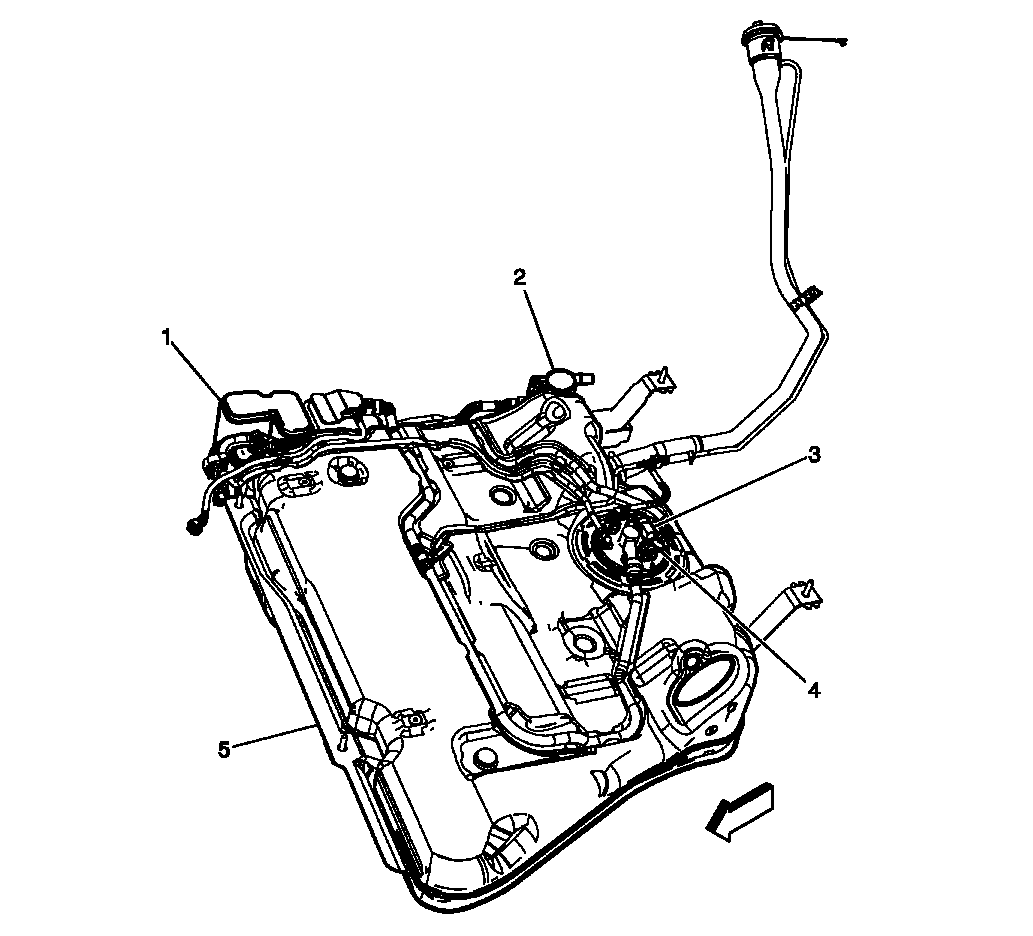

Fig 1: View Of Fuel Tank Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Evaporative Emission (EVAP) Canister
2	Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3	Fuel Pump and Sender Assembly
4	Fuel Tank Pressure (FTP) Sensor
5	Fuel Tank

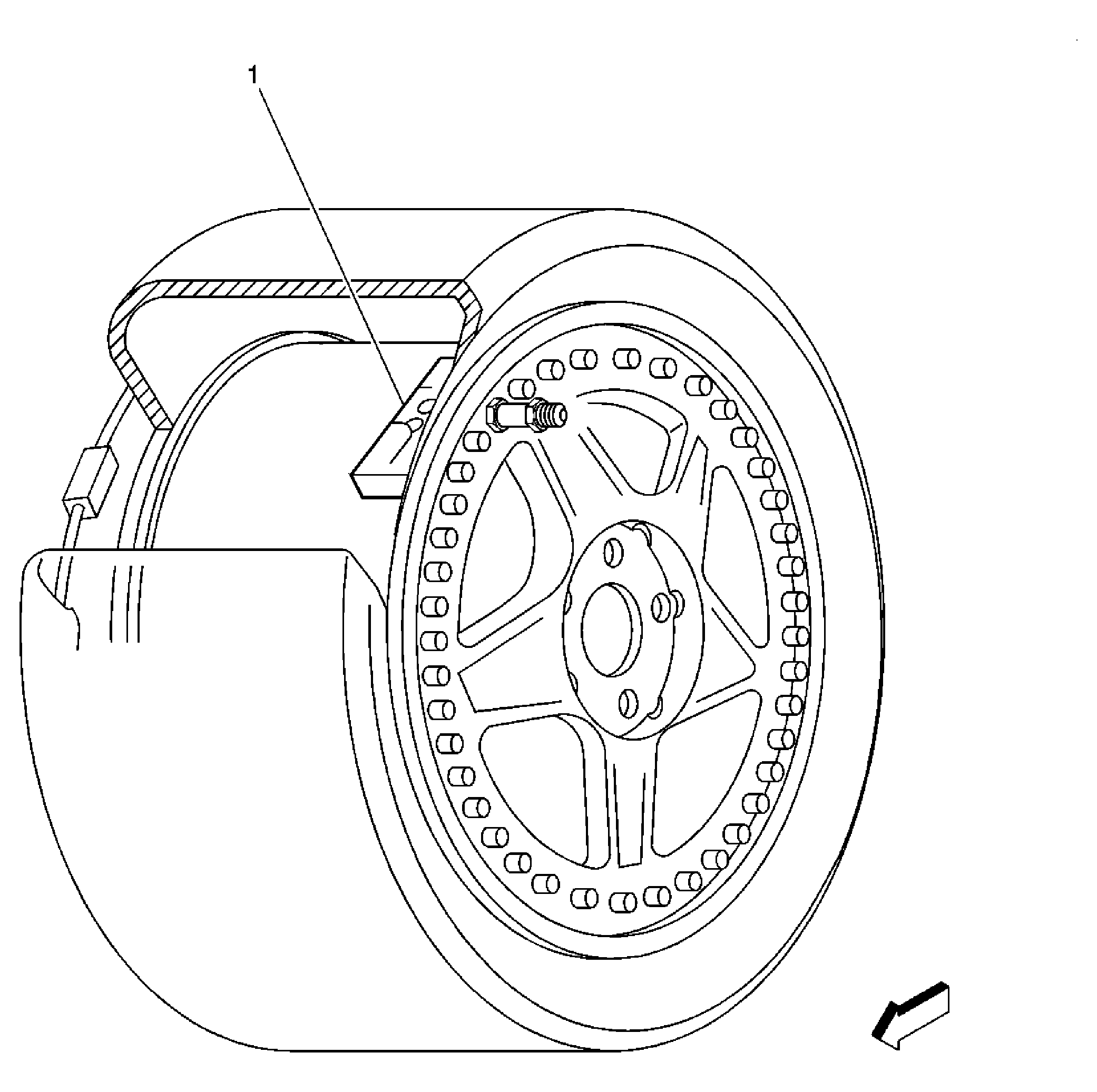

Fig 2: View Of Tire Pressure Monitoring System Component

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tire Pressure Monitoring Sensor

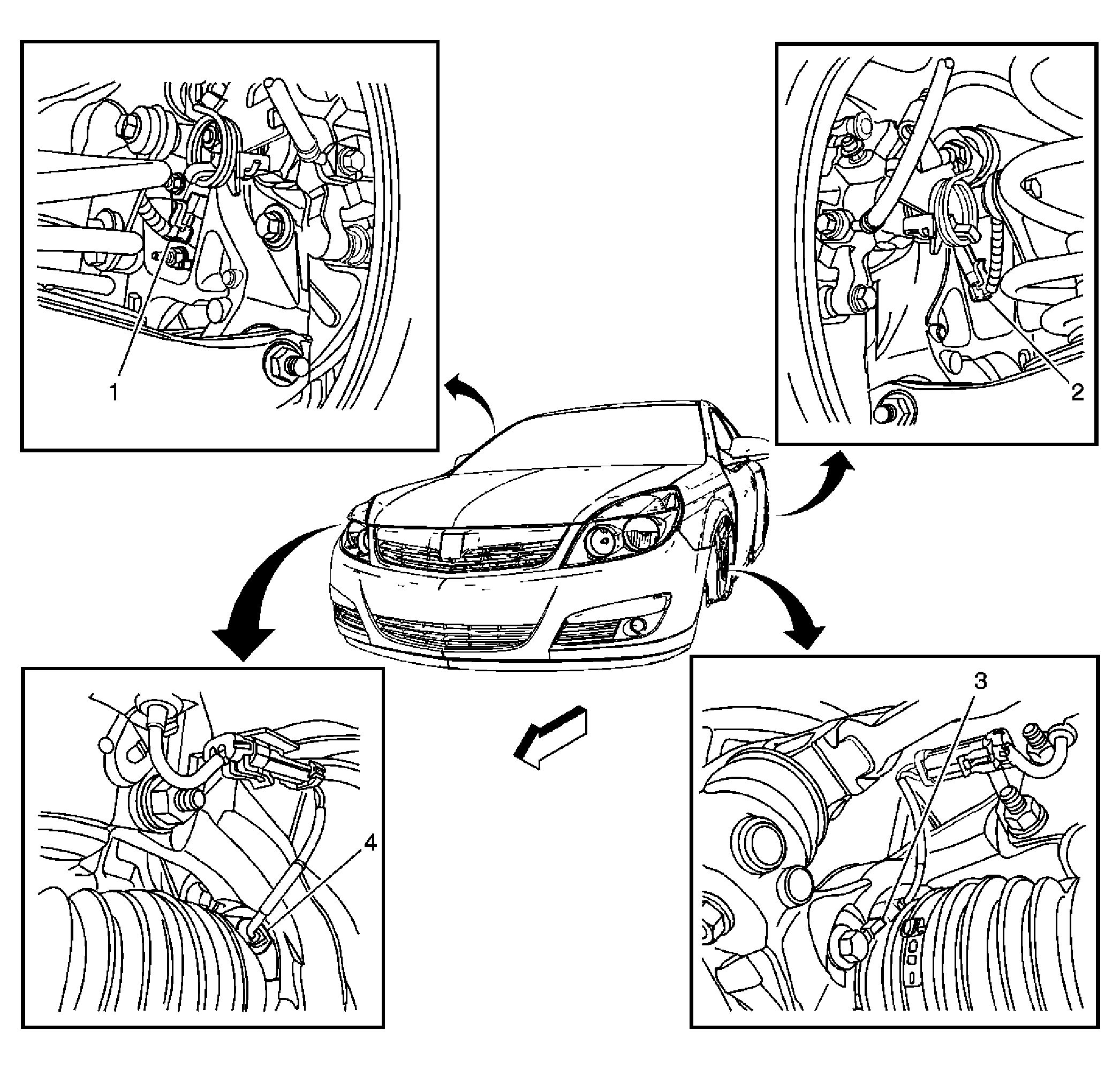

Fig 3: Identifying Wheel Speed Sensors Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Wheel Speed Sensor (WSS) - Right Rear
2	Wheel Speed Sensor (WSS) - Left Rear
3	Wheel Speed Sensor (WSS) - Left Front
4	Wheel Speed Sensor (WSS) - Right Front
