Luggage Compartment/Rear of Vehicle Component Views

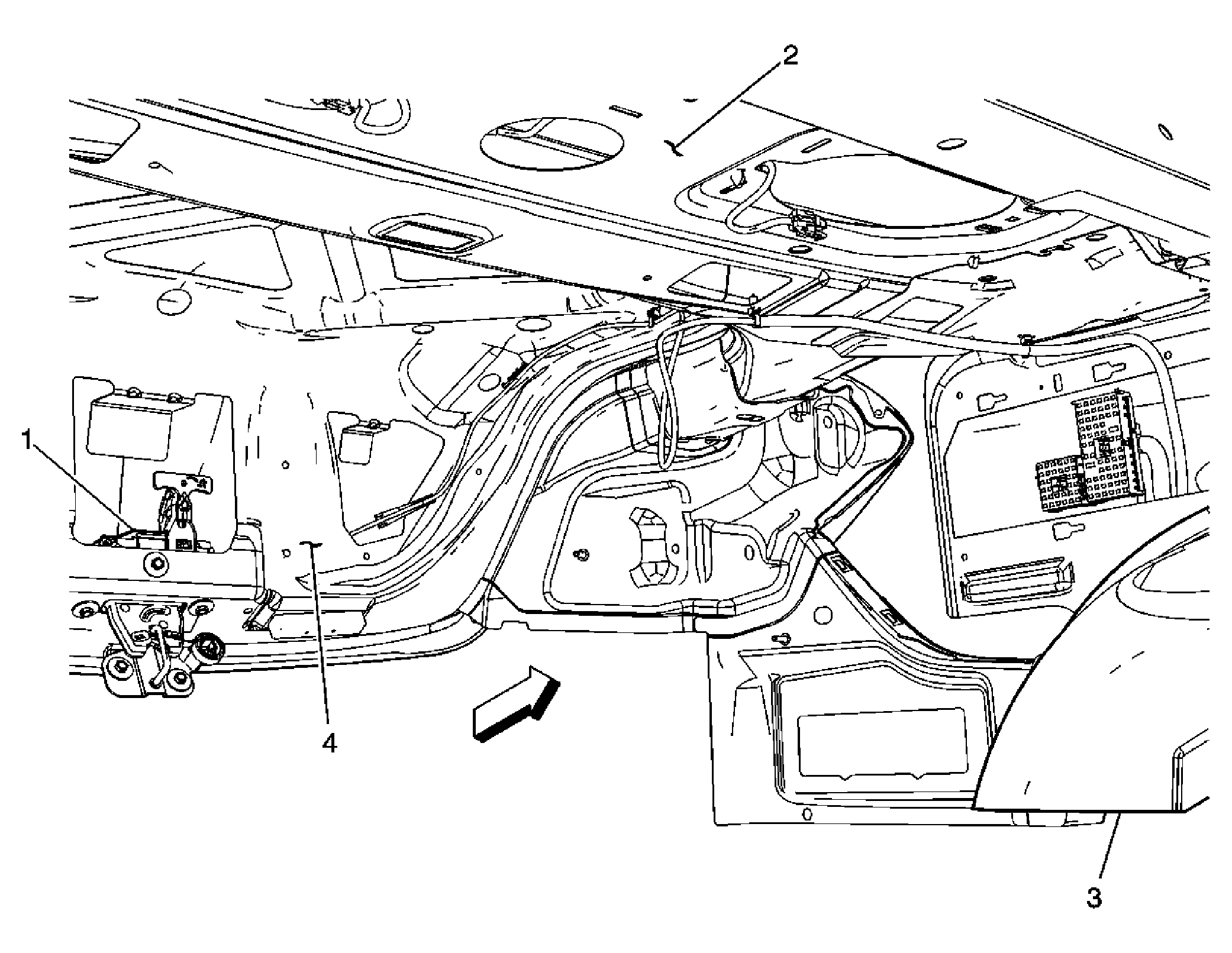

Fig 1: View Of Rear Compartment Lid Latch Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
2	Rear Shelf
3	Left Rear Wheel Panel
4	Rear Compartment Lid

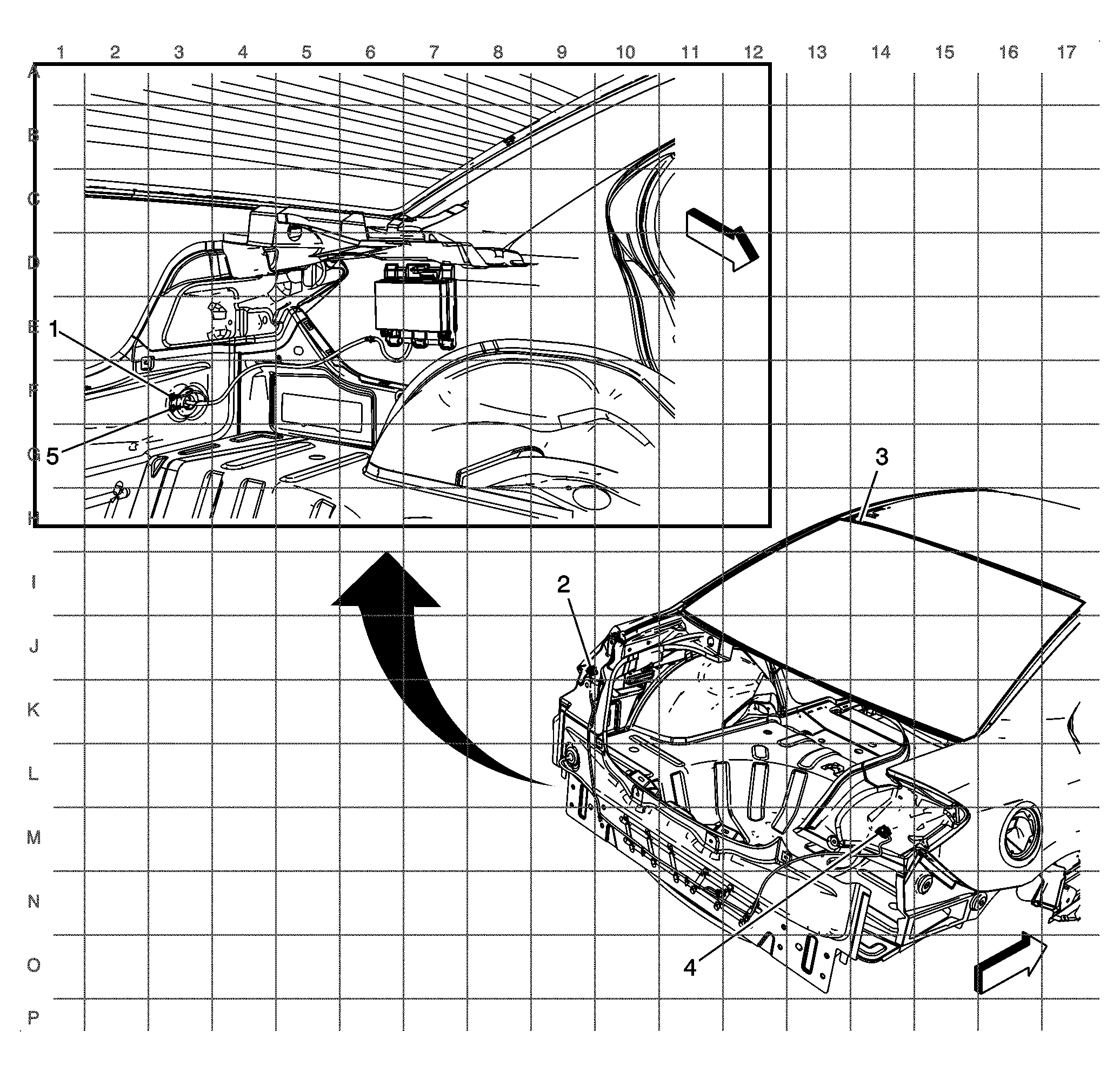

Fig 2: View Of Rear Lamp Harness Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G401
2	X401
3	Rear Window
4	X402
5	G403

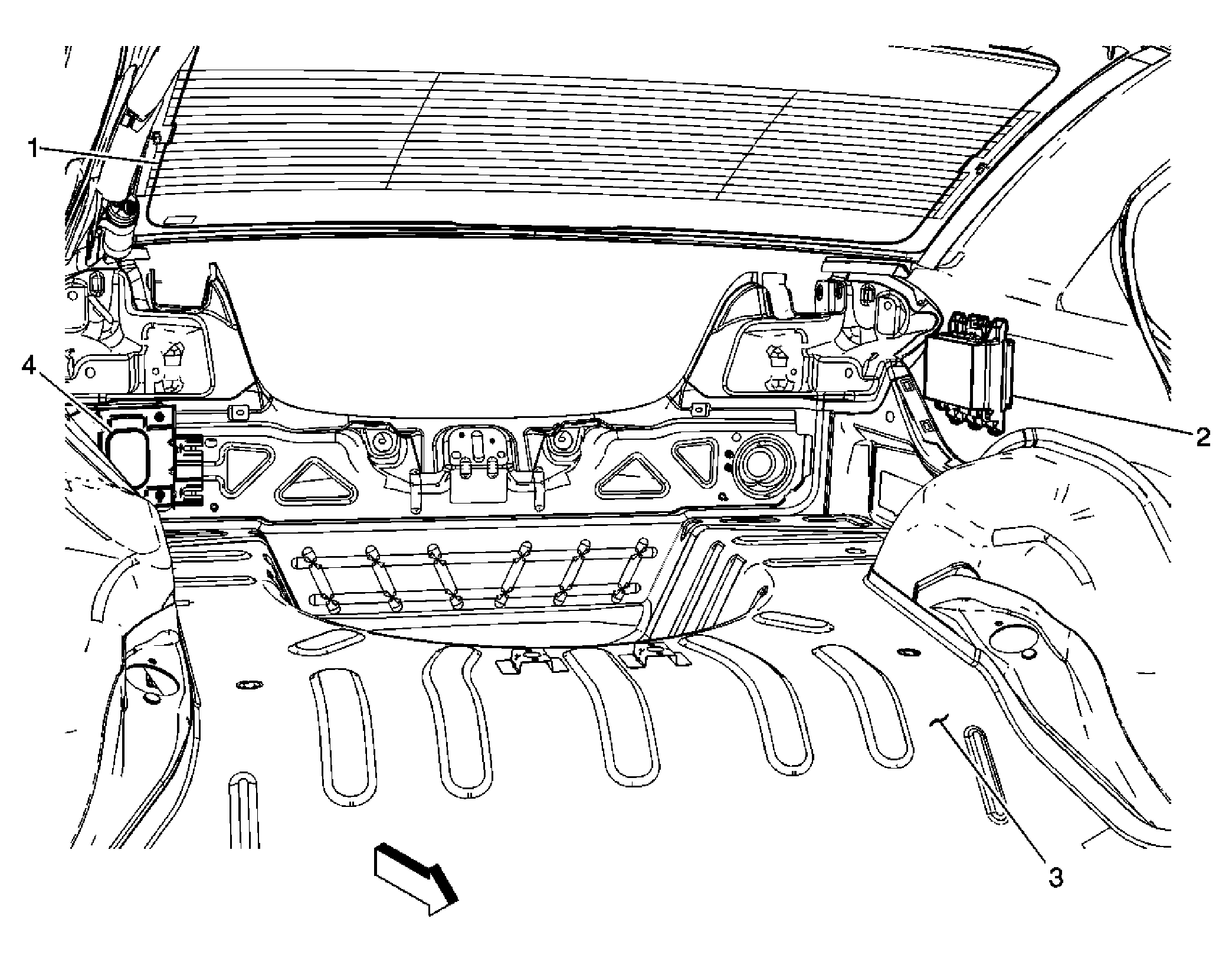

Fig 3: View Of Rear of the Luggage Compartment Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Fuse Block - Rear
3	Rear Floor
4	Audio Amplifier (UQ3)

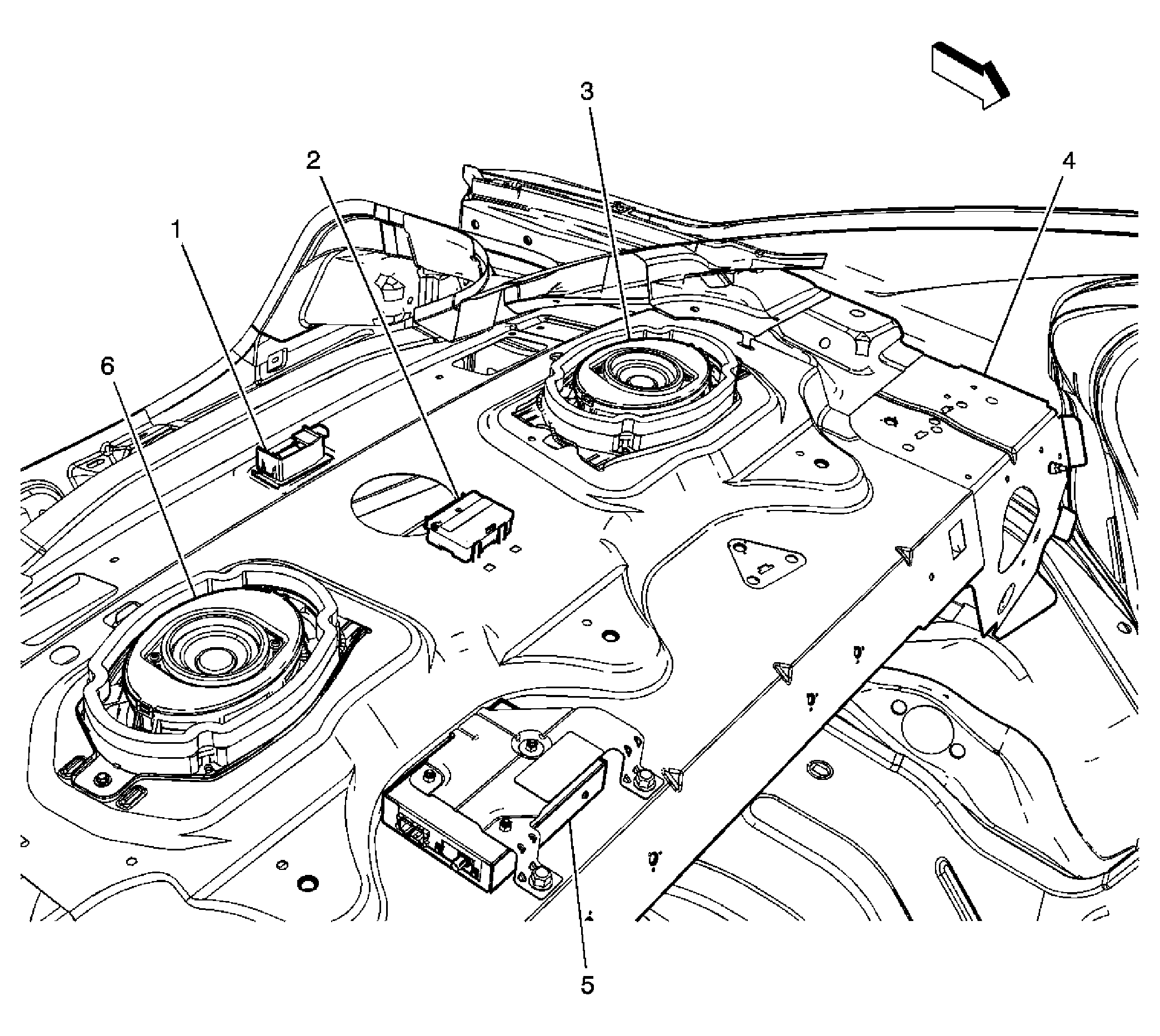

Fig 4: View Of Rear Shelf Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Courtesy Lamp
2	Remote Control Door Lock Receiver (RCDLR) (AUO)
3	Speaker - Left Rear
4	Rear Shelf
5	Digital Radio Receiver (U2K)
6	Speaker - Right Rear

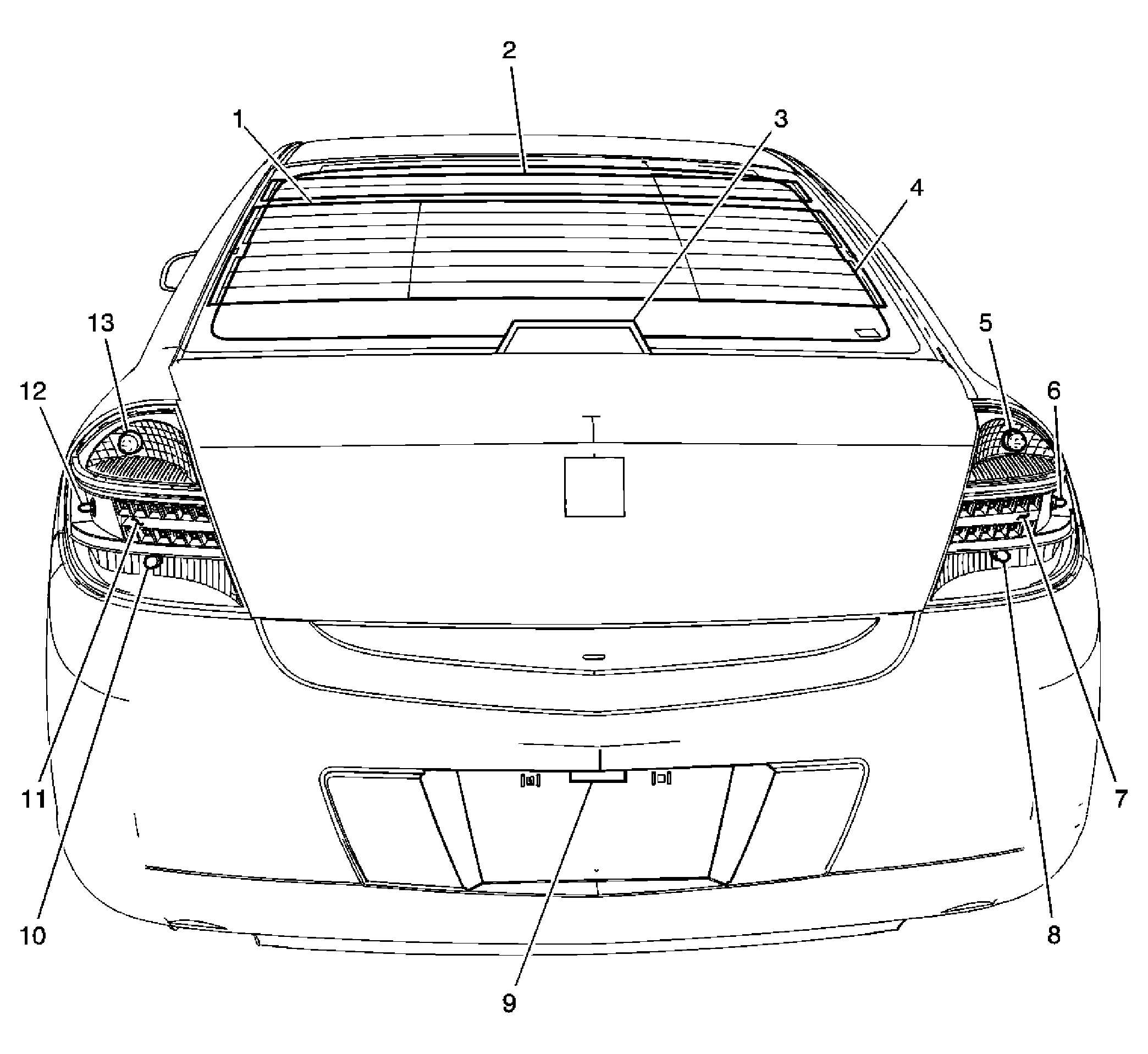

Fig 5: View Of Rear Of Vehicle Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Defogger Grid
2	Radio Rear Window Antenna
3	Center High Mounted Stop Lamp (CHMSL)
4	Rear Window Defogger Grid
5	Turn Signal Lamp - Right Rear
6	Marker Lamp - Right Rear
7	Tail/Stop Lamp - Right
8	Backup Lamp - Right
9	License Lamp
10	Backup Lamp - Left
11	Tail/Stop Lamp - Left
12	Marker Lamp - Left Rear
13	Turn Signal Lamp - Left Rear
