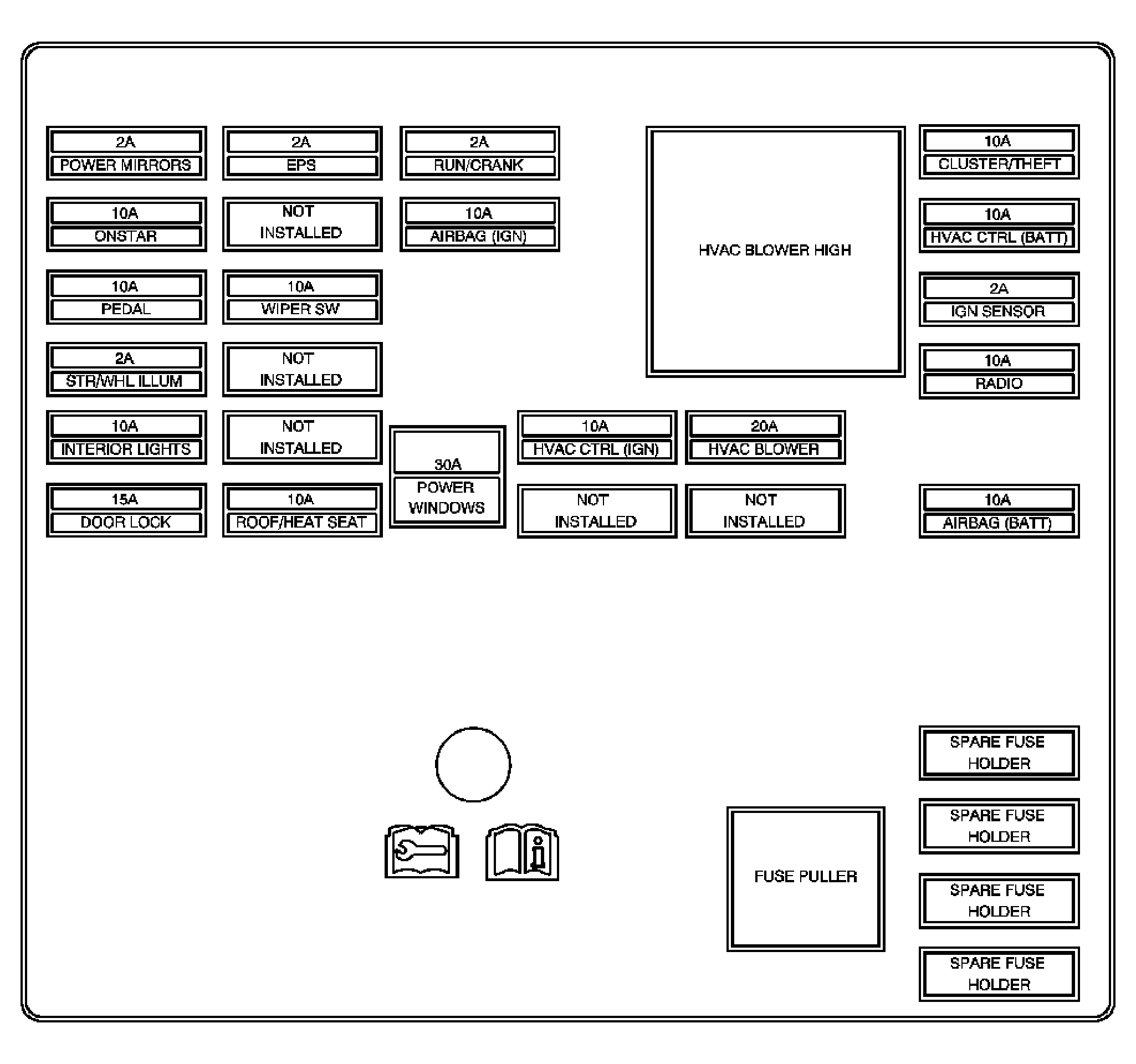

Body Control Module (BCM) Label
Body Control Module (BCM) Label Usage
| Device | Rating | Description |
|---|---|---|
| AIRBAG (BATT) Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| AIRBAG (IGN) Fuse | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| CLUSTER/THEFT Fuse | 10A | Instrument Panel Cluster (IPC) and Theft Deterrent Control Module |
| DOOR LOCK Fuse | 15A | Body Control Module (BCM) Logic |
| EPS Fuse | 2A | Power Steering Control Module |
| HVAC BLOWER Fuse | 20A | HVAC Control Module (C60) |
| HVAC BLOWER HIGH Relay | - | Blower Motor (C60) |
| HVAC CTRL (BATT) Fuse | 10A | Data Link Connector (DLC) and HVAC Control Module |
| HVAC CTRL (IGN) Fuse | 10A | HVAC Control Module |
| IGN SENSOR Fuse | 2A | Ignition Switch |
| INTERIOR LIGHTS Fuse | 10A | Body Control Module (BCM) Logic |
| ONSTAR Fuse | 10A | Vehicle Communication Interface Module (VCIM) (UE1) |
| PEDAL Fuse | 10A | Adjustable Pedals Module (JF4) and Adjustable Pedals Position Switch (JF4) |
| POWER MIRRORS Fuse | 2A | Outside Rearview Mirror Switch |
| POWER WINDOWS Fuse | 30A | Window Switch - Driver and Window Switch - Passenger |
| RADIO Fuse | 10A | Radio |
| ROOF/HEAT SEAT Fuse | 10A | Heated Seat Control Module - Driver (KA1), Heated Seat Control Module - Passenger (KA1), Heated Seat Switch - Driver (KA1), Heated Seat Switch - Passenger (KA1), Inside Rearview Mirror (DD8), and Sunroof Control Module (CF5) |
| RUN/CRANK Fuse | 2A | A/T Shift Lock Control Assembly, Cruise Control On/Off Switch |
| STR/WHL ILLUM Fuse | 2A | Steering Wheel Controls |
| WIPER SW Fuse | 10A | Windshield Wiper/Washer Switch |
| Printed Circuit Board (PCB) Relays | ||
| DOOR LOCK PCB Relay | - | Door Lock Actuator - Driver, Door Lock Actuator - Passenger, Door Lock Actuator - LR, Door Lock Actuator - RR |
| DOOR UNLOCK PCB Relay | - | Door Lock Actuator - Driver, Door Lock Actuator - Passenger and Door Lock Actuator - LR |
| DR DOOR UNLOCK PCB Relay | - | Door Lock Actuator - Driver |
| INTERIOR LIGHTS PCB Relay | - | Courtesy Lamp, Dome/Reading Lamp, Dome Lamp (C3Y), Rear Compartment Courtesy Lamp, Vanity Mirror Lamp - Left and Vanity Mirror Lamp - Right |
