Electronic Traction Control Switch Replacement

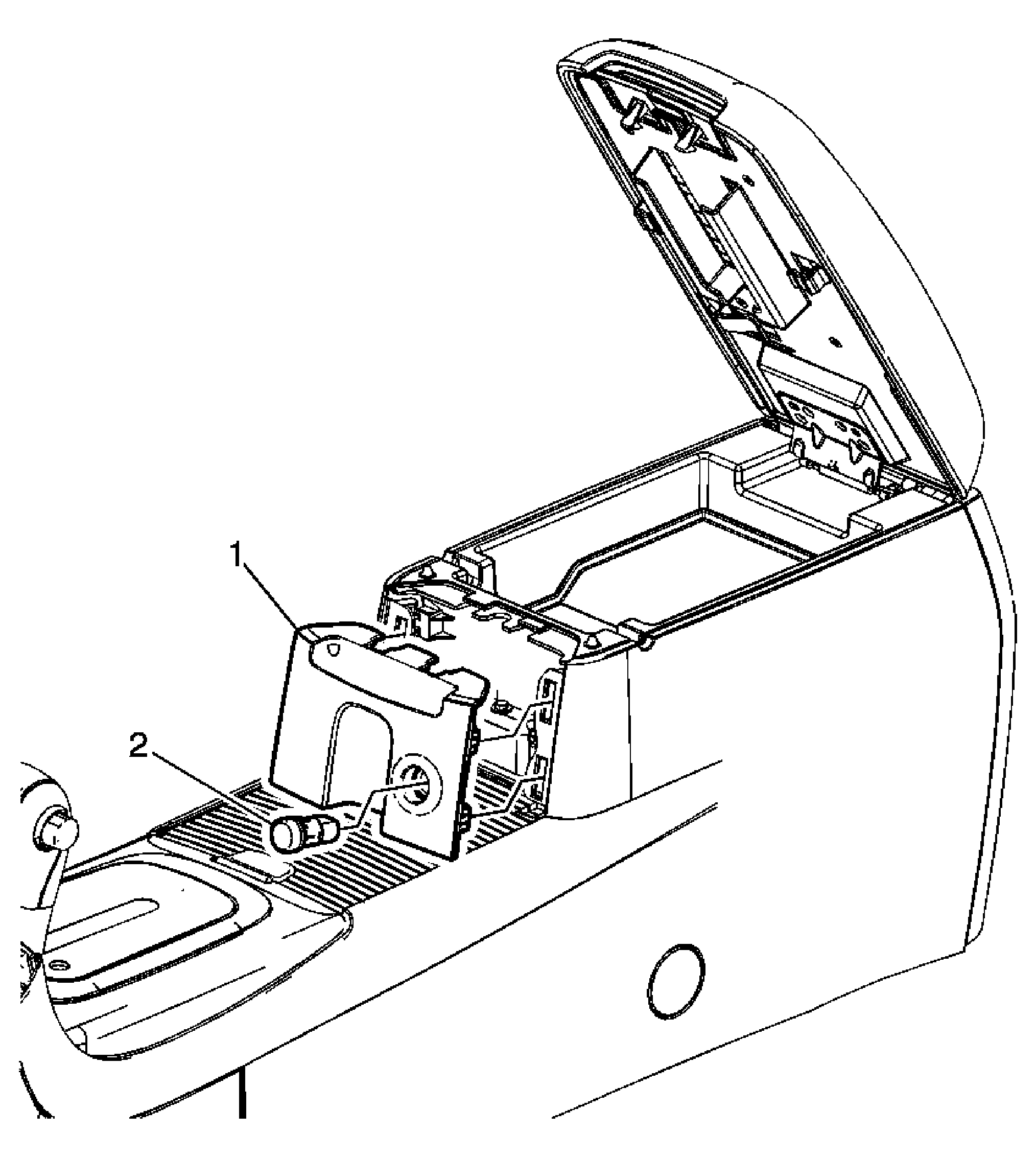

Fig 1: Identifying Electronic Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Console Front Trim Plate Tip:  Disconnect electrical connections.
2	Traction Control Switch Assembly Tip:  Squeeze the tabs in order to release the switch from the trim plate.
