Removal Procedure

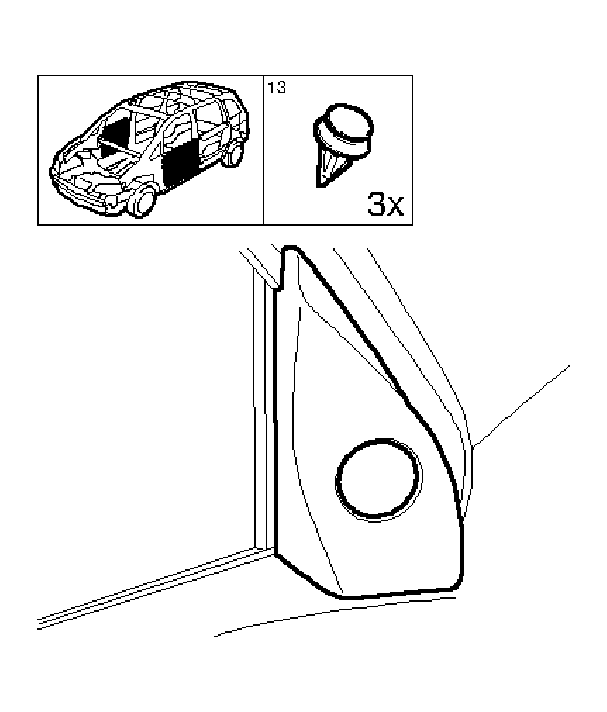

    Fig 1: View Of Upper Extension Trim Panel
    GM1937553Courtesy of GENERAL MOTORS CORP.
  1. Remove the upper extension trim panel.
  2. Release the 3 clips.
  3. Disconnect the wiring harness plug.

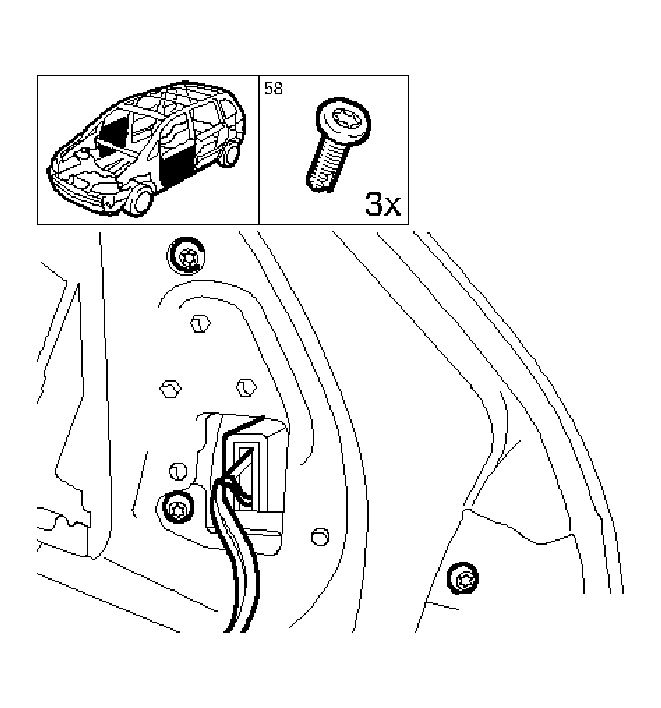

    4. Fig 2: Identifying Front Door Outer Mirror
    GM1941005Courtesy of GENERAL MOTORS CORP.
  4. Remove the front door outer mirror.
    1. Disconnect the wiring harness plug.
    2. Remove the 3 bolts.
    3. Remove the outer mirror.
