Installation Procedure

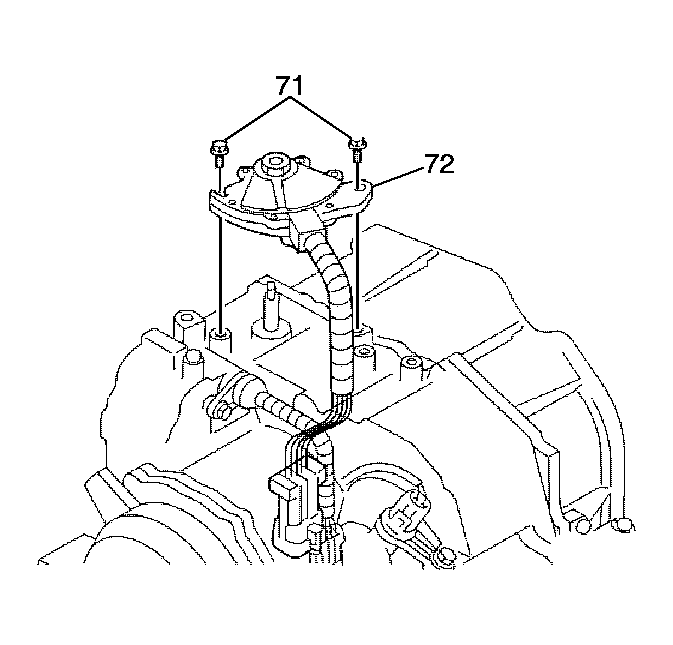

Fig 1: View Of Park/Neutral Position Switch Bolts And Position Switch

Courtesy of GENERAL MOTORS CORP.

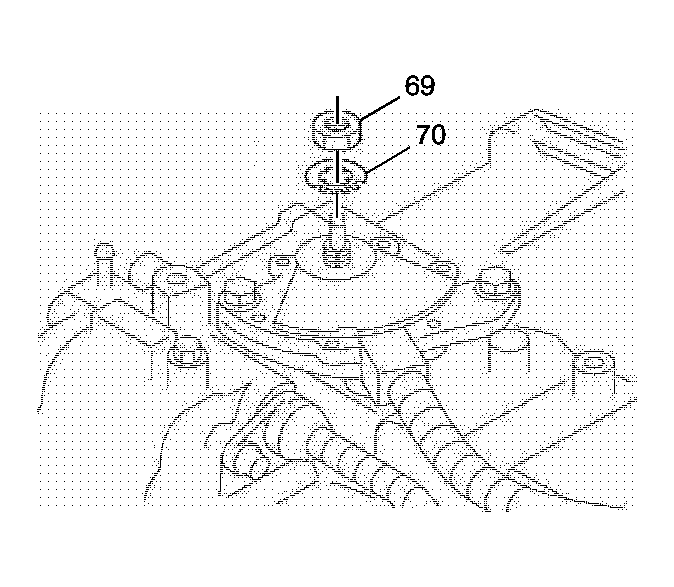

Fig 2: View Of Manual Shift Shaft Retaining Nut And Nut Lock Washer

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice .

Install the manual shift shaft retaining nut lock washer (70) and manual shift shaft retaining nut (69).
Tighten: Tighten the nut to 6.9 N.m (61 lb in).

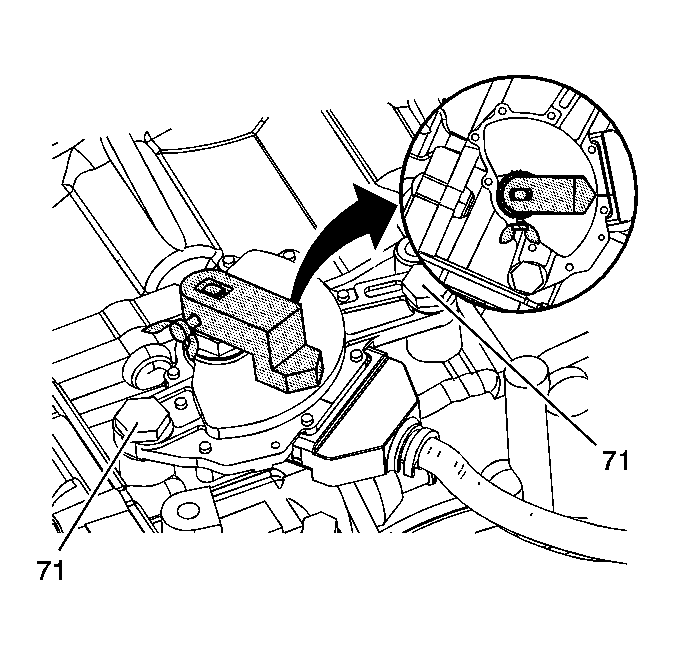

Fig 3: View Of Park/Neutral Position Switch Bolts

Courtesy of GENERAL MOTORS CORP.

Place the manual shift detent lever assembly in the Neutral (N) position.
Install the J 45404 to the manual shift detent lever assembly. See Special Tools .
Rotate the park/neutral position switch until the neutral base line on the switch assembly lines up with the indicator line on J 45404 . See Special Tools .
Tighten the 2 park/neutral position switch bolts (71).
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
Remove J 45404 from the manual shift detent lever assembly. See Special Tools .

Fig 4: View Of Manual Shift Shaft Retaining Nut Lock Washer And Park/Neutral Position Switch Bolts

Courtesy of GENERAL MOTORS CORP.

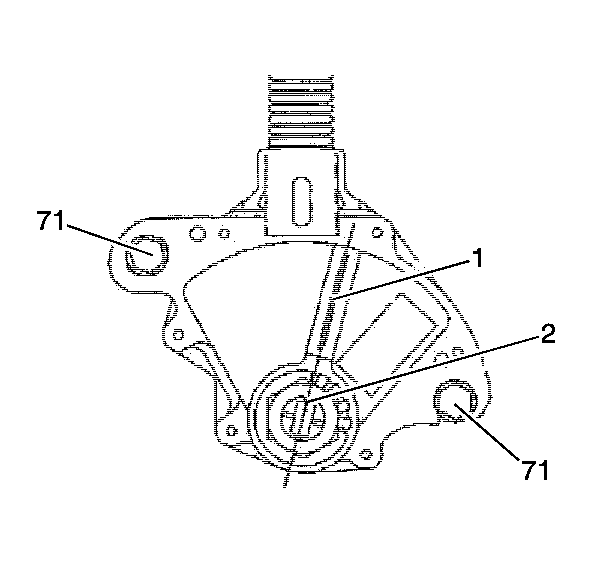

If no special tool available, align the groove and neutral basic line. Lock the park/neutral position switch with the 2 park/neutral position switch bolts (71).
Tighten: Tighten the bolts to 25 N.m (18 lb ft).

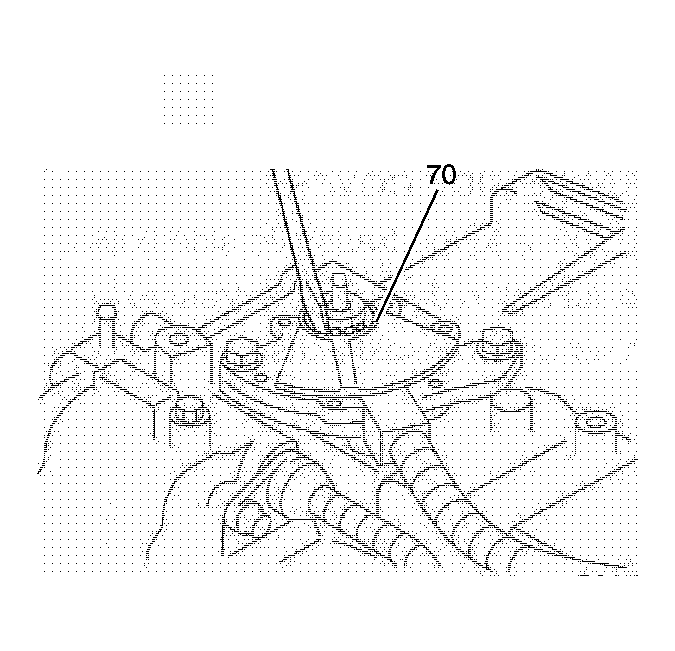

Fig 5: View Of Manual Shift Shaft Retaining Nut Lock Washer

Courtesy of GENERAL MOTORS CORP.

Bend the tabs on the manual shift shaft retaining nut lock washer (70) with a screwdriver.
