Removal Procedure

CAUTION: Refer to Battery Disconnect Caution .

IMPORTANT: When replacing the control unit, before removing the control unit, carry out a Reset using TECH 2. For reprogramming procedures, refer to Control Module References .

Disconnect the battery.

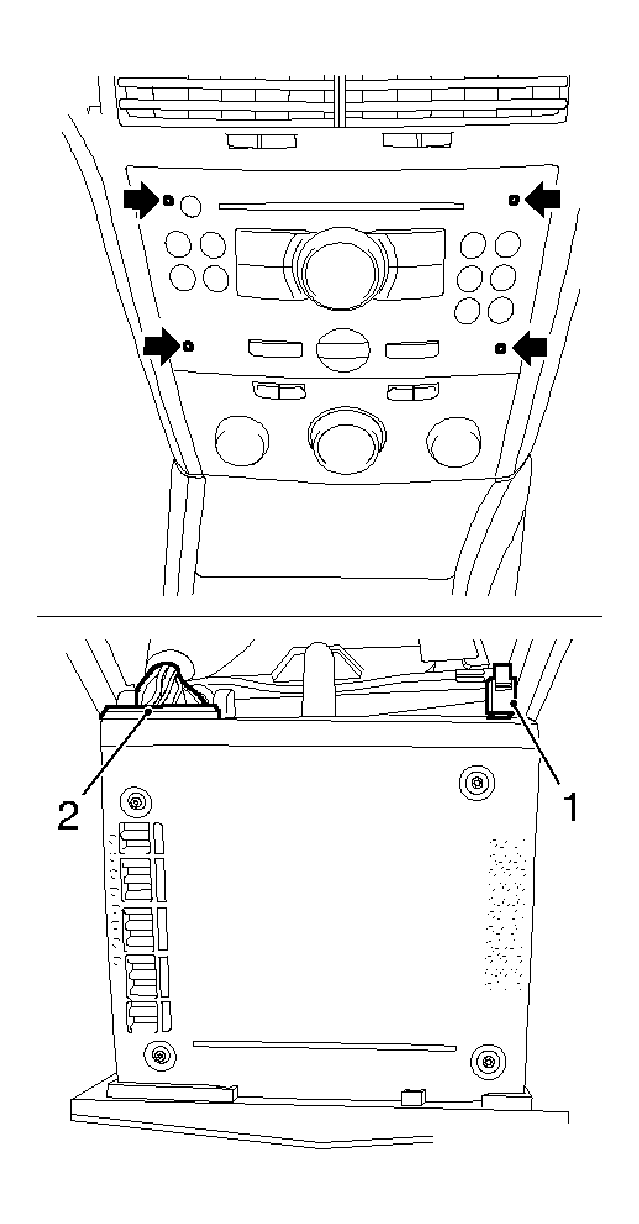

Fig 1: Identifying Antenna And Wiring Harness Plug

Courtesy of GENERAL MOTORS CORP.

Remove the radio.
- Install the removal bar KM6067 into the openings (arrows) until it engages. See Special Tools .
- Pull both removal bars outwards and at the same time withdraw the radio from the holder.
Disconnect the wiring harness plug.
Disconnect the 2 wiring harness plugs (1, 2).
