Astra XR, 2D Hatchback, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
Secondary And Configurable Customer Controls
>>
Schematic and Routing Diagrams
>>
Steering Wheel Secondary/Configurable Control Schematics
Steering Wheel Secondary/Configurable Control Schematics

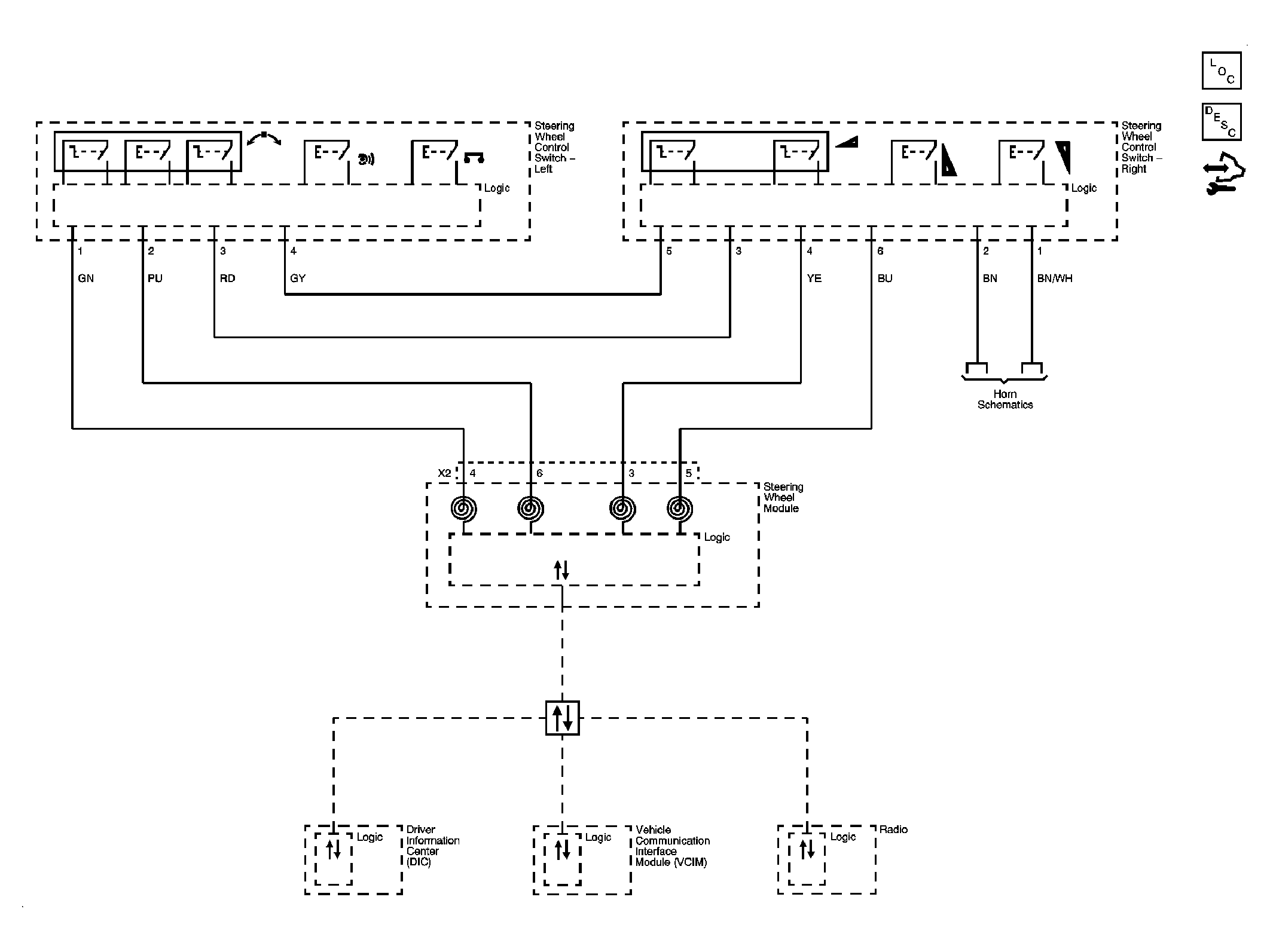

Fig 1: Steering Wheel Secondary/Configurable Control Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
