Removal Procedure

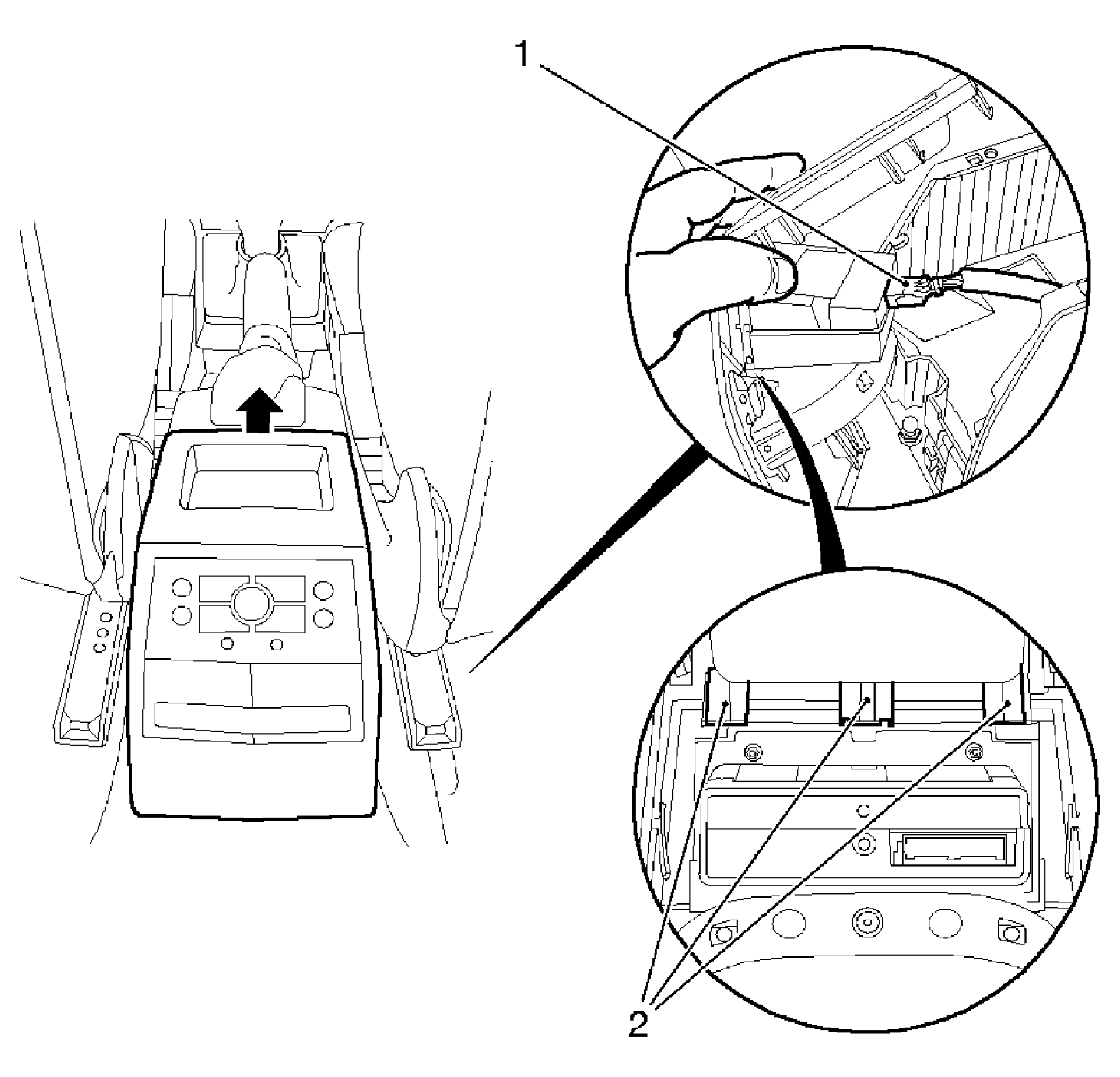

    Fig 1: View Of Rear Storage Compartment Wiring Harness Plug And Clips
    GM1941066Courtesy of GENERAL MOTORS CORP.
  1. Remove the rear storage compartment in the front floor console.
    • Remove the storage compartment in the direction of the arrow.
    • Disconnect the wiring harness plug (1).
  2. Remove the rear seat audio control from the storage compartment.

    Release the 3 clips (2).
