Automatic Transmission Electronic Component Views

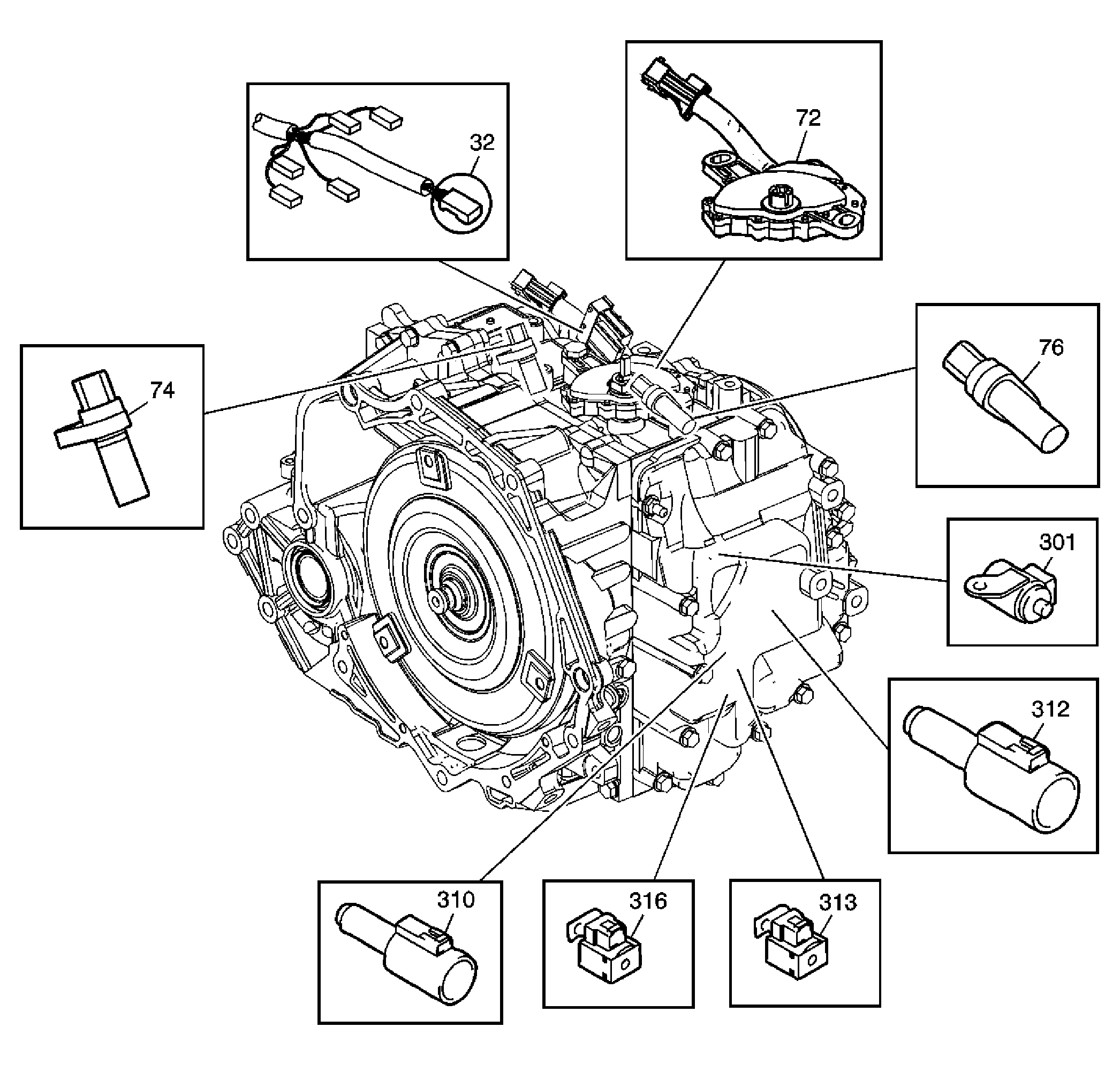

Fig 1: Electronic Components View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
32	Transmission Fluid Temperature Sensor
72	Park/Neutral Position Switch
74	Transmission Output Speed Sensor Assembly
76	Transmission Input Speed Sensor Assembly
301	Neutral Switching Solenoid Valve
310	Lock Up Control Solenoid (SLU)
312	Line Pressure Control Solenoid Valve Assembly (SLT)
313	2-3, 3-4 Shift Solenoid Valve Assembly (S1)
316	1-2/3-4 Shift Solenoid Valve Assembly (S2)
