Disassembled Views

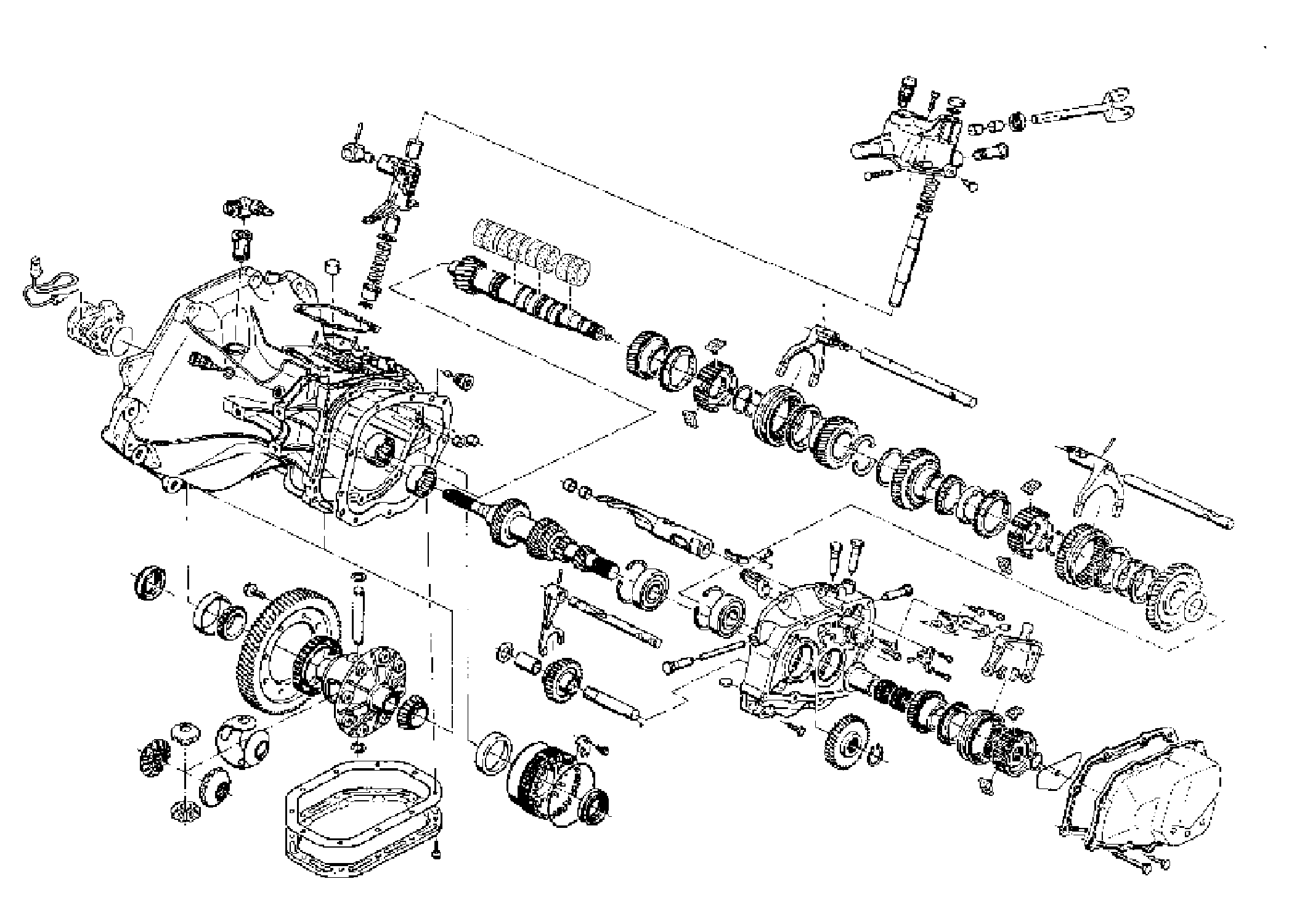

Fig 1: Exploded View Of Manual Transmission (F17+)

Courtesy of GENERAL MOTORS CORP.

Fig 2: View Of Drive Shaft Components(F17+)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Drive Shaft with Gear Cluster
2	Retaining Ring
3	Ball Bearing (Closed)

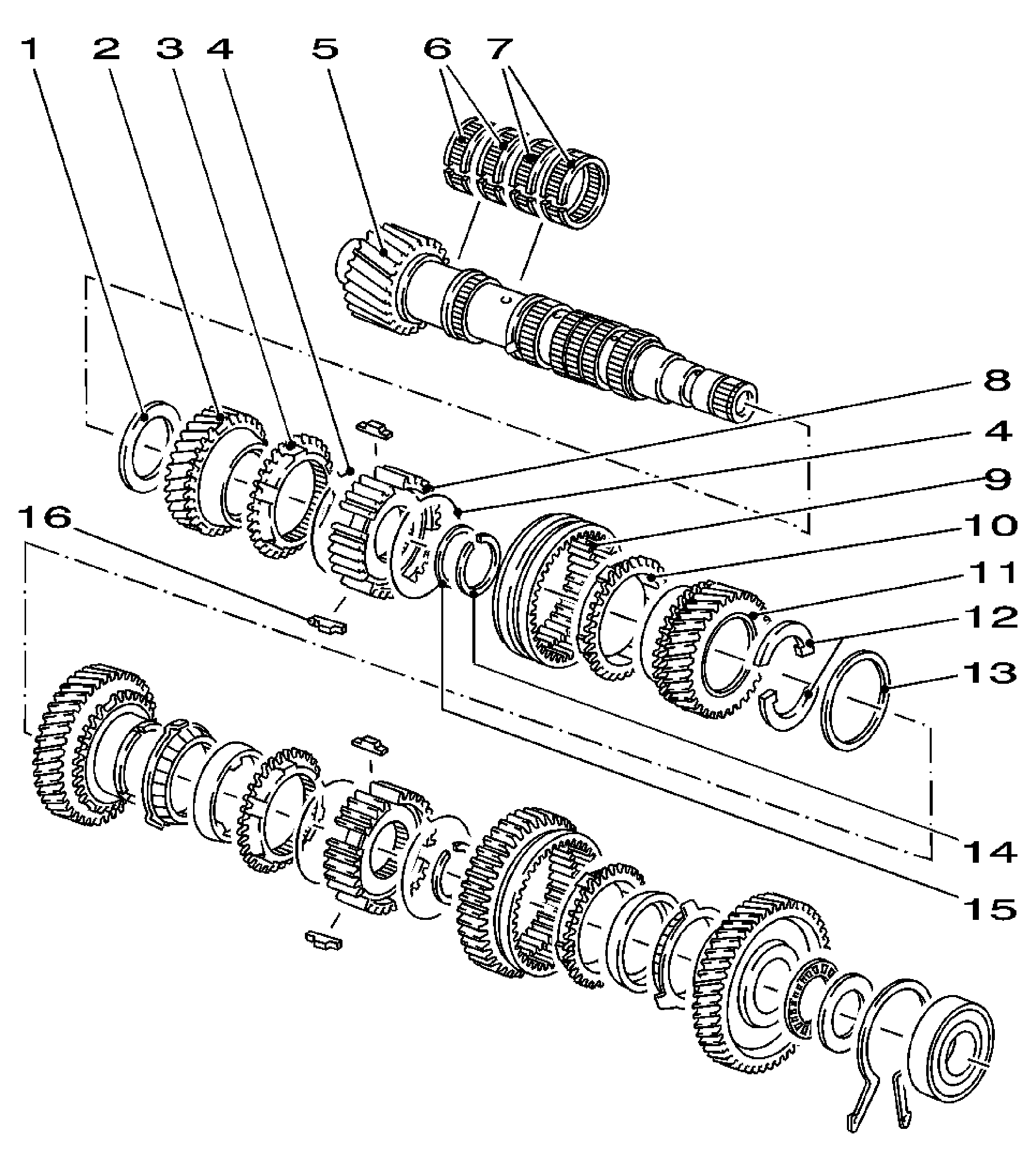

Fig 3: Exploded View Of Main Shaft 1 (F17+/F17+ MTA) Components (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

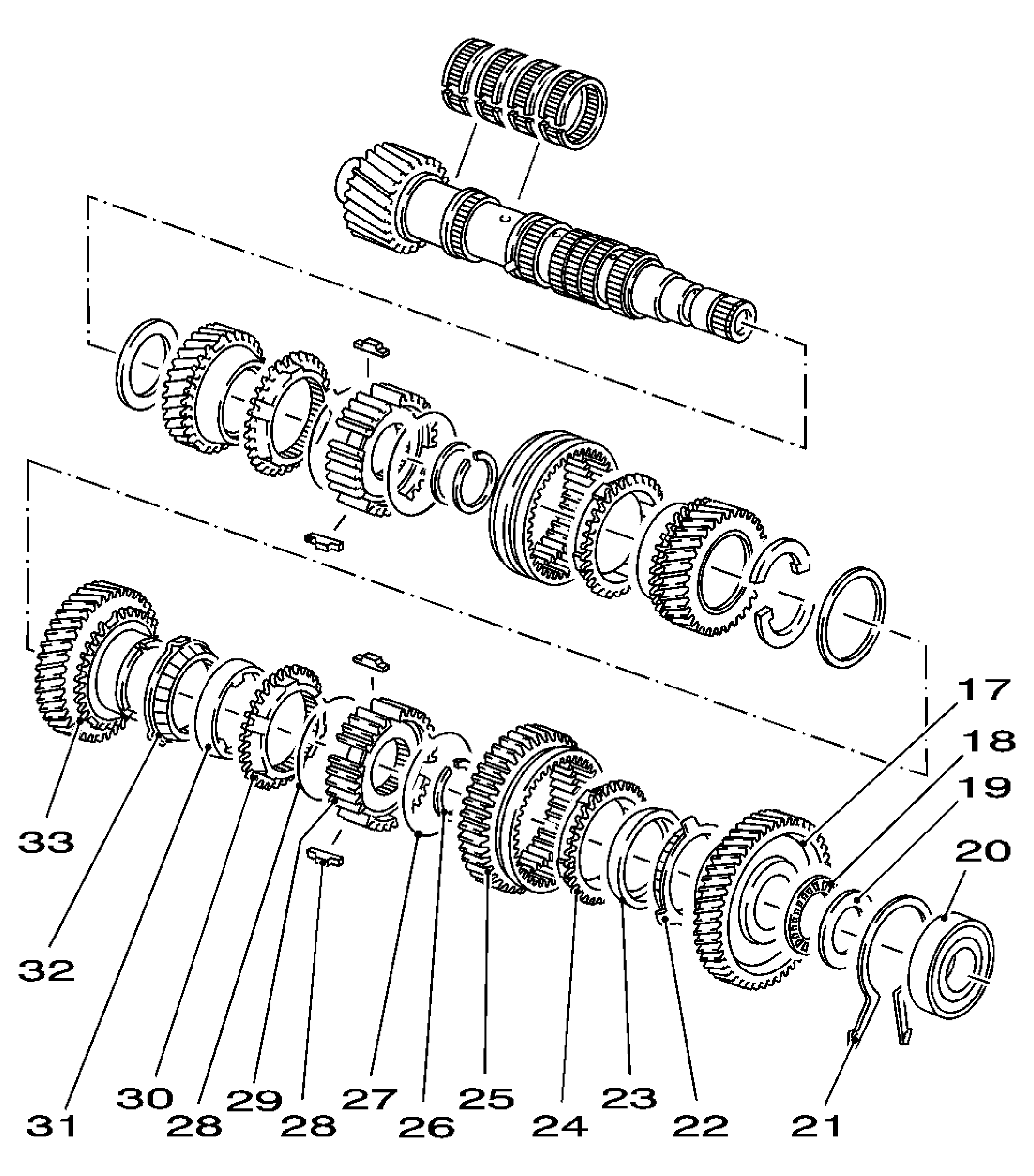

Fig 4: Exploded View Of Main Shaft Components (F17+/F17+ MTA) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
17	1st Gear
18	Axial Needle Bearing
19	Thrust Washer
20	Ball Bearing
21	Retaining Ring
22	1st Gear Inner Synchronizer Ring
23	1st Gear Intermediate Ring
24	1st Gear Outer Synchronizer Ring
25	1st/2nd Gear Shift Sleeve
26	Retaining Ring
27	Synchronizer Spring
28	Sliding Block
29	1st/2nd Gear Synchro Body
30	2nd Gear Outer Synchronizer Ring
31	2nd Gear Intermediate Ring
32	2nd Gear Inner Synchronizer Ring
33	2nd Gear

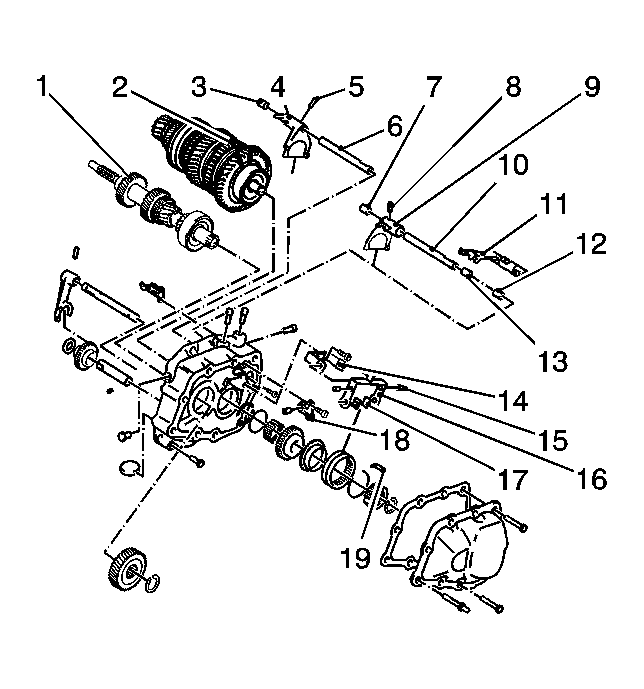

Fig 5: Exploded View Of End Shield Components(F17+/F17+ MTA) (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

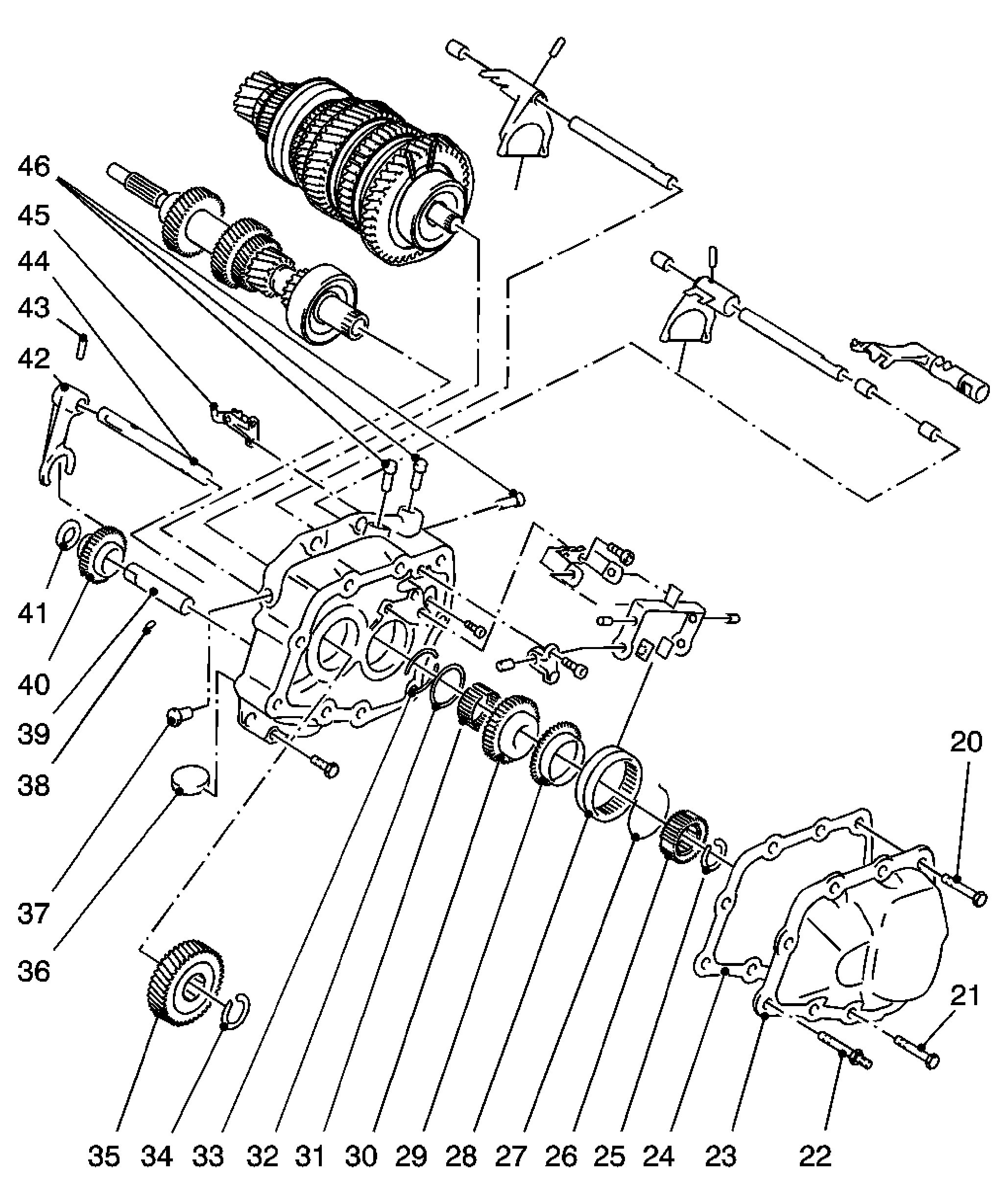

Fig 6: Exploded View Of End Shield Components(F17+/F17+ MTA) (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
