Removal Procedure

  1. Remove the starter. Refer to Starter Motor Replacement .

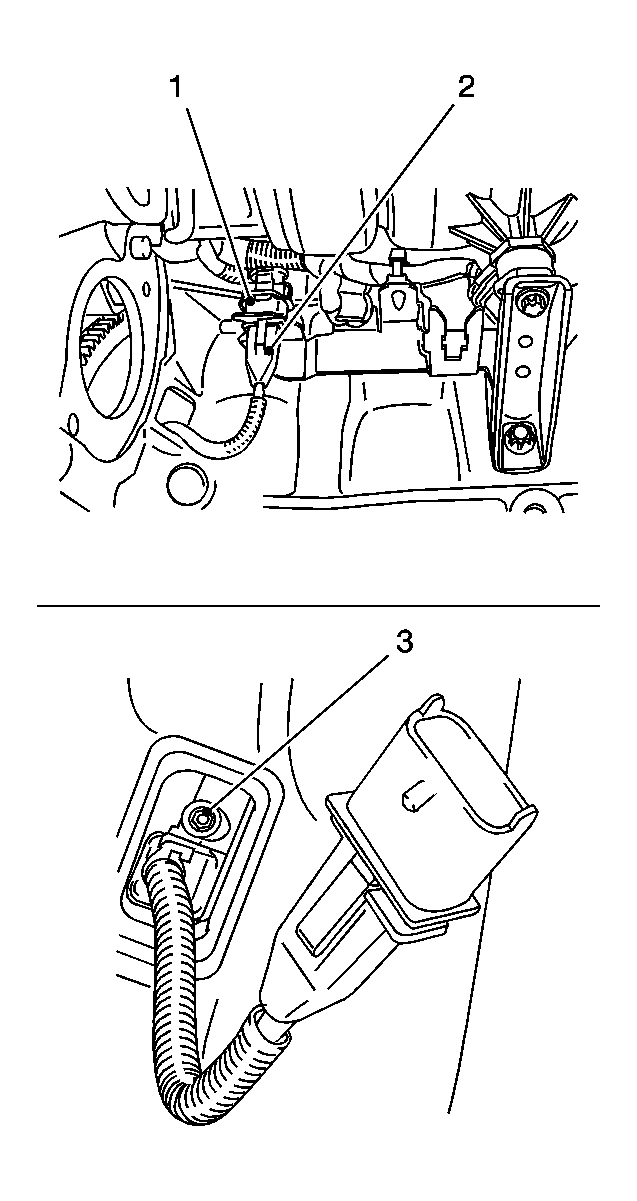

    2. Fig 1: View Of Wiring Harness Plug, Crankshaft Position Sensor And Bolt
    GM1945798Courtesy of GENERAL MOTORS CORP.
  2. Remove the crankshaft position sensor.
    • Disconnect the wiring harness plug (1).
    • Disconnect the crankshaft position sensor (2) from the bracket.
    • Remove the bolt (3).
