Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the connector to the switch.
  2. Install the switch
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.

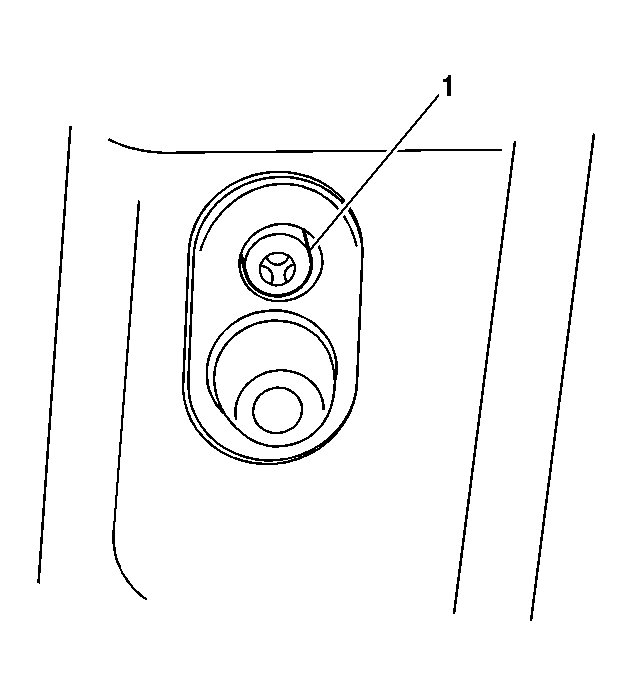

    Fig 1: Removing & Installing Front Door Jamb Switch
    GM1237248Courtesy of GENERAL MOTORS CORP.
  3. Install the screw (1).

    Tighten:  Tighten the screw (1) to 2 N.m (18 lb in).
