Interior Lights Schematics

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

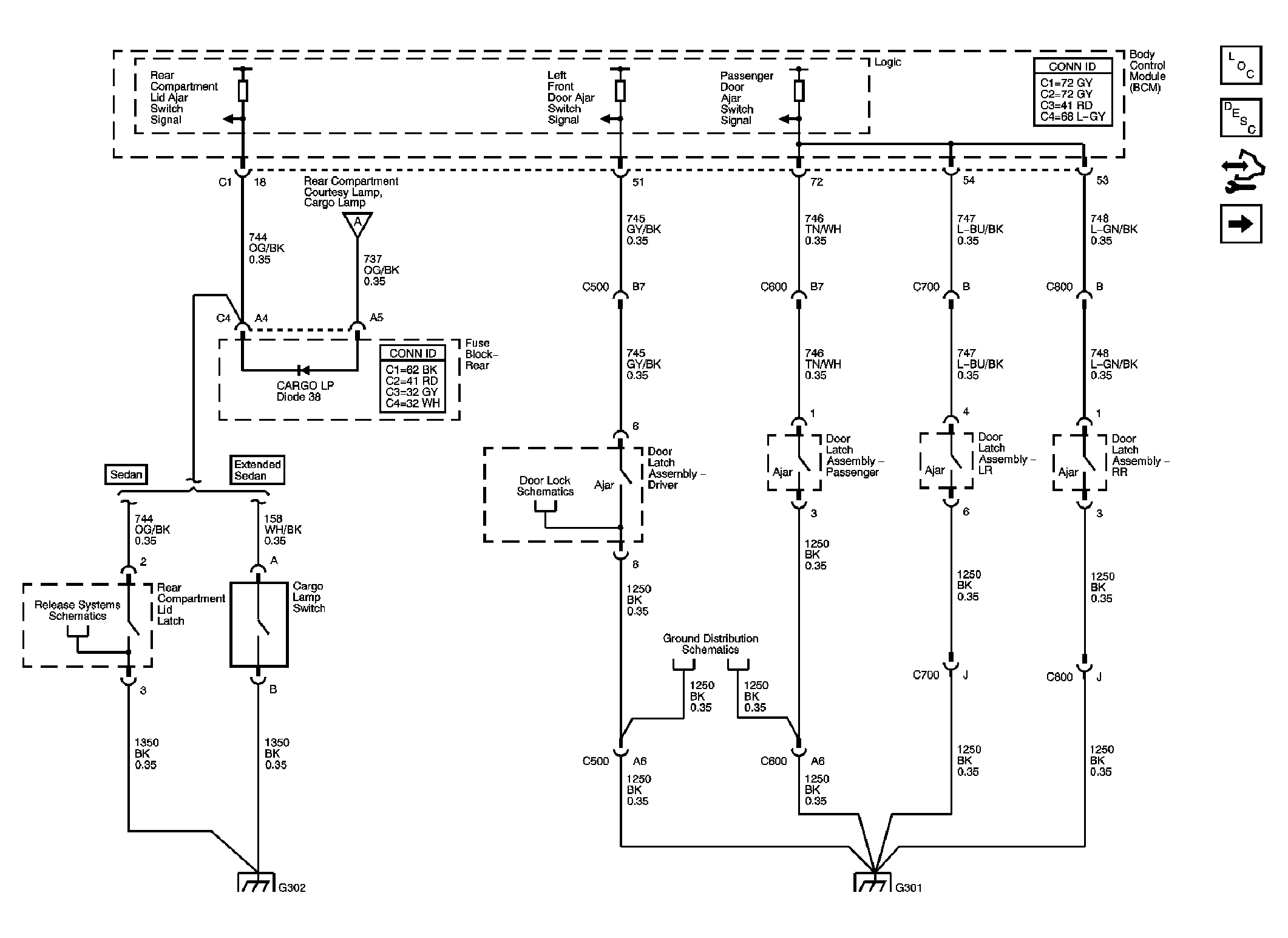

Fig 1: Inputs Schematics
GM1787062Courtesy of GENERAL MOTORS CORP.

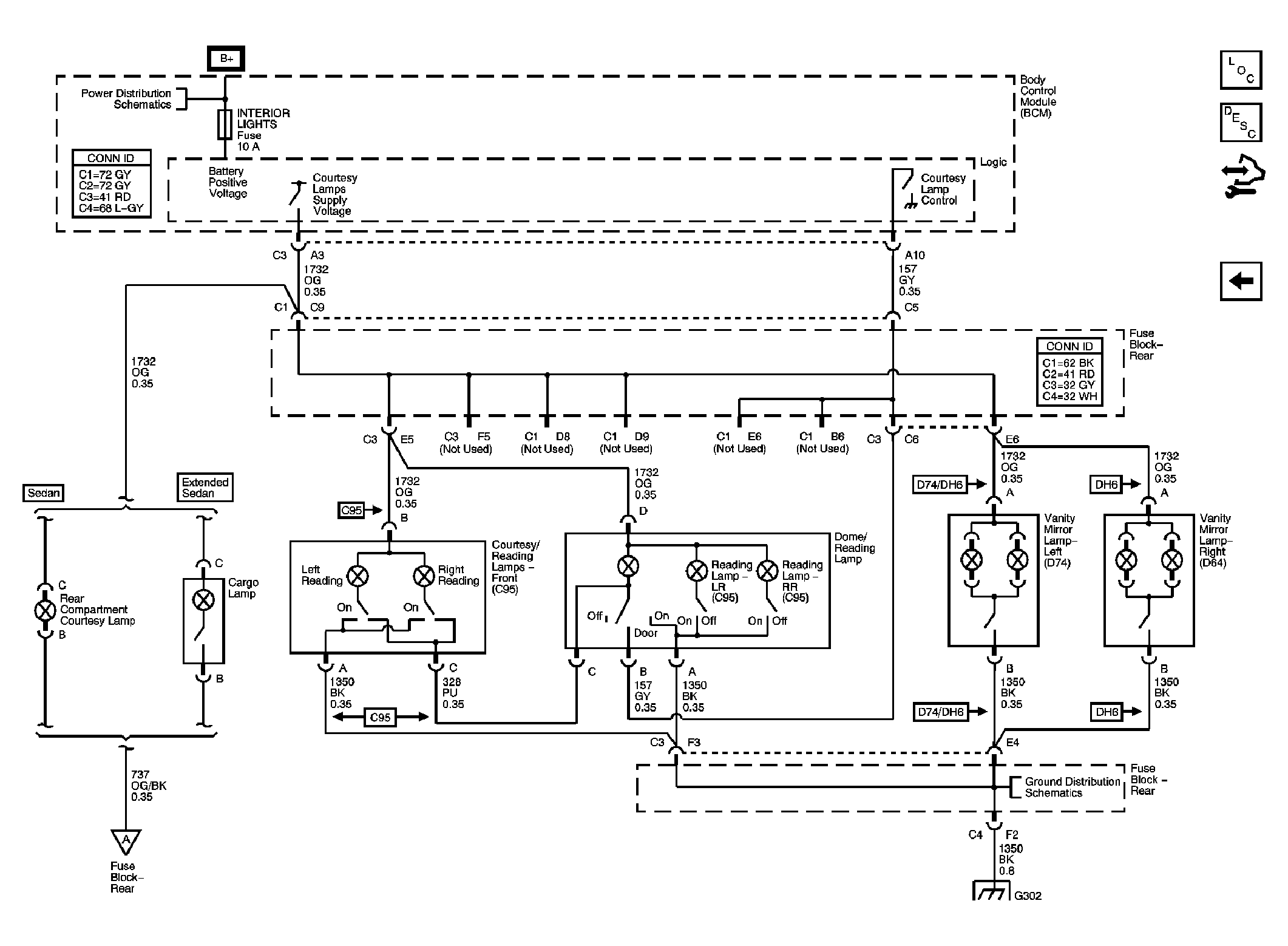

Fig 2: Outputs Schematics
GM1787065Courtesy of GENERAL MOTORS CORP.
