Installation Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

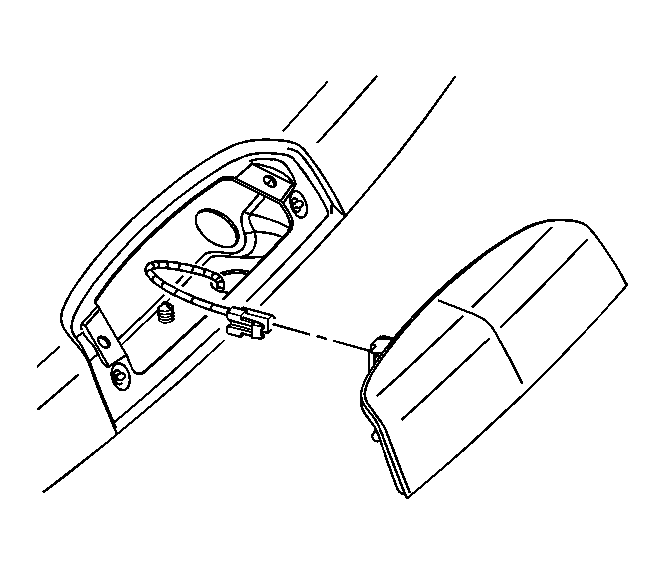

    Fig 1: Identifying Electrical Connector
    GM1326370Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector.
  2. Position the CHMSL to the liftgate. Carefully seat the CHMSL into the lamp opening.

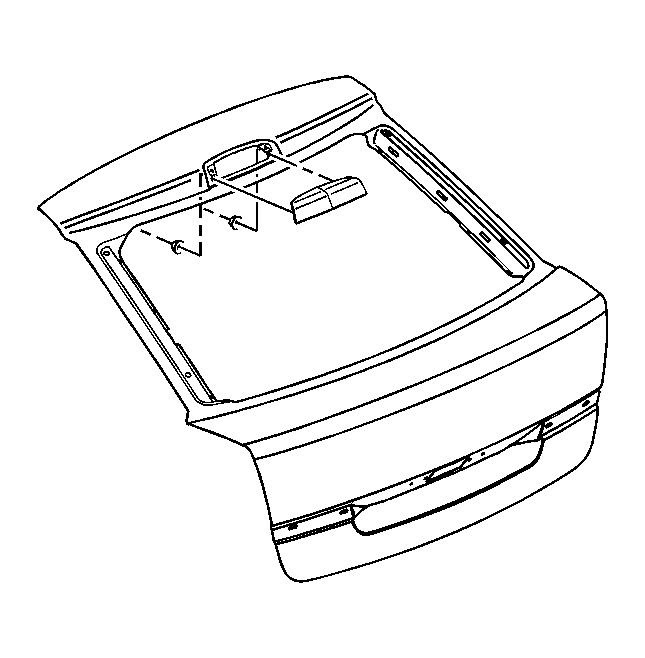

    3. Fig 2: View Of Nuts From Center High-Mounted Stop Lamp
    GM1326340Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. From the underside of the liftgate, install the nuts to the CHMSL.

    Tighten:  Tighten the center high-mounted stop lamp bolts to 2 N.m (18 lb in).

  4. Close the liftgate.
