Disabling Procedure

WARNING: This page is about a different car, the 2006 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the steering wheel so that the vehicle wheels are pointing straight ahead.
  2. Turn the ignition switch to the OFF position.
  3. Remove the key from the ignition switch.
  4. Locate the body control module fuse center, then remove the fuse center cover.
    5. IMPORTANT: With the AIR BAG fuse removed and the ignition switch in the ON position, the AIR BAG warning indicator illuminates. This is normal operation, and does not indicate an SIR system malfunction.
  5. Locate and remove the AIR BAG fuse from the body control module fuse center.

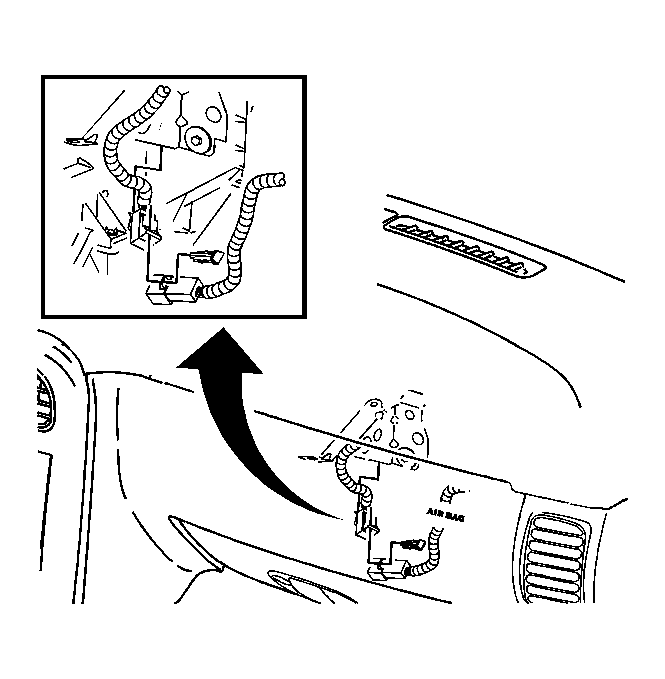

    6. Fig 1: CPA & I/P Module Connector
    GM1244712Courtesy of GENERAL MOTORS CORP.
  6. Remove the connector position assurance (CPA) from the instrument panel module (IPM) connector.
  7. Disconnect the IPM connector from the vehicle harness connector.
