Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

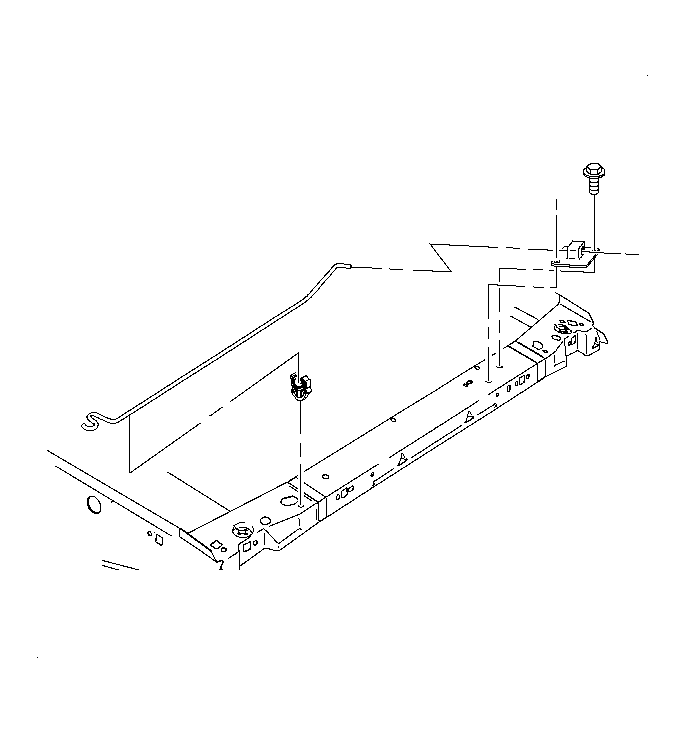

    Fig 1: Removing & Installing Prop Rod & Bracket
    GM894178Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the prop rod bracket and screws.

    Tighten:  Tighten the screws to 8 N.m (71 lb in).

  2. Remove the auxiliary prop device.
  3. Close the hood.
