Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing & Installing Driver Side Carpet Retaining Fastener

Courtesy of GENERAL MOTORS CORP.

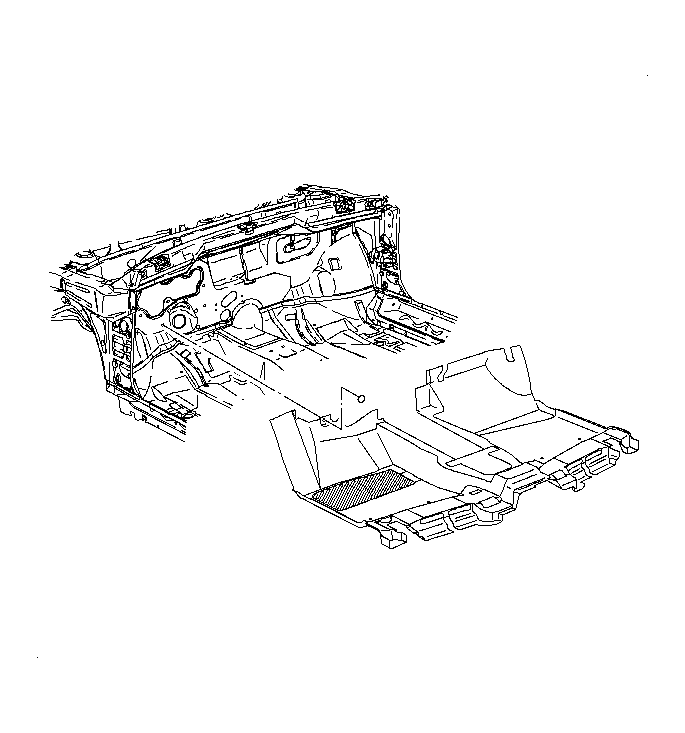

Cut the replacement carpet in the same location as the removed carpet.
Install the front carpet in the vehicle tucking the carpet under the HVAC module and under the shift rod. Make sure that the carpet is properly placed to prevent wrinkles.
Install the driver side carpet retaining fastener.

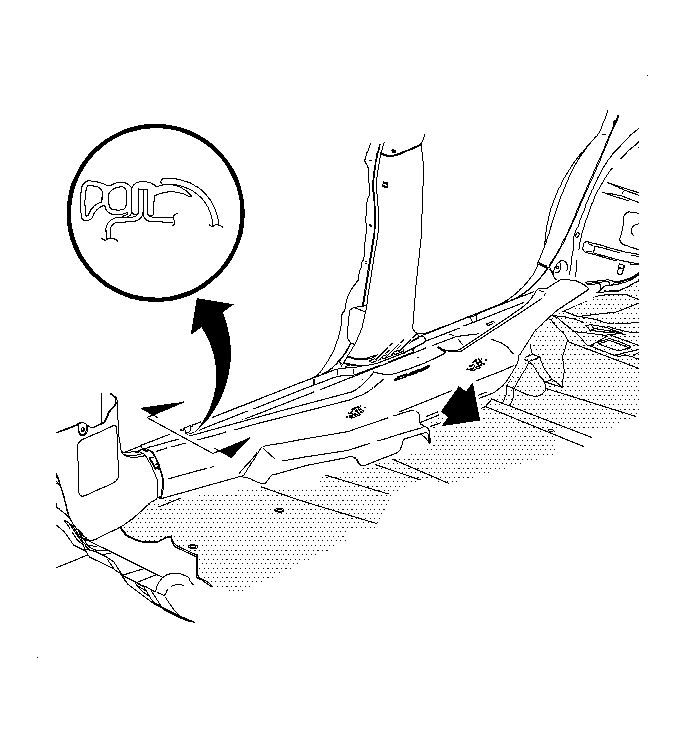

Fig 2: Removing & Installing Carpet Retainers

Courtesy of GENERAL MOTORS CORP.

Install the right and the left carpet retainers. Refer to Carpet Retainer Replacement .

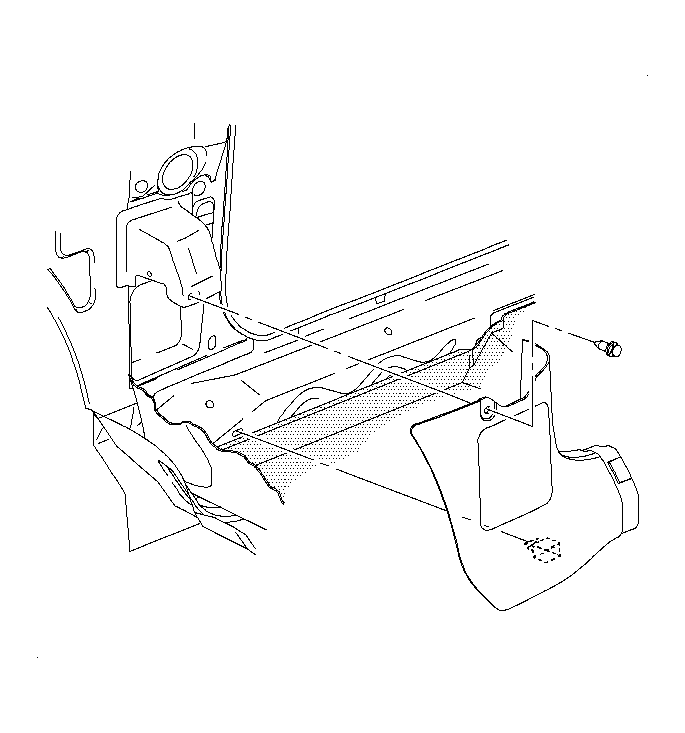

Fig 3: Removing & Installing Hinge Pillar Trim

Courtesy of GENERAL MOTORS CORP.

Install the hinge pillar. Refer to Trim Replacement - Hinge Pillar .

Fig 4: Removing & Installing Console

Courtesy of GENERAL MOTORS CORP.

Install the center console. Refer to Console Replacement .

Fig 5: Removing/Installing Front Seat

Courtesy of GENERAL MOTORS CORP.

Install the seats. Refer to Seat Replacement - Front Bucket .
