Rear Compartment Lid Latch Replacement

WARNING: This page is about a different car, the 2012 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

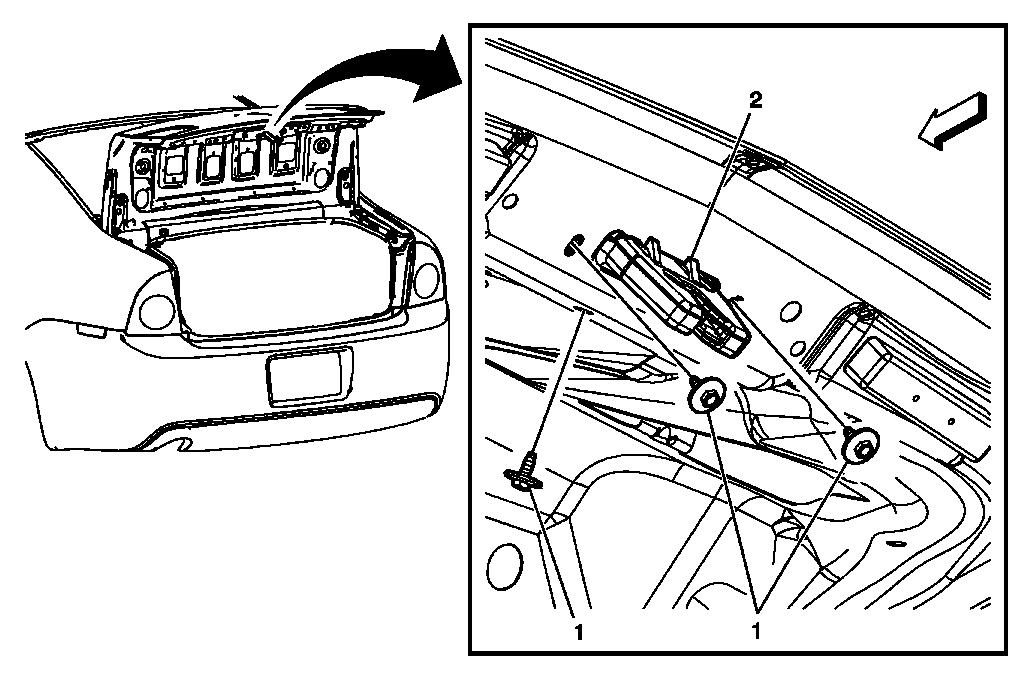

Fig 1: View Of Rear Compartment Lid Latch Components
GM2000948Courtesy of GENERAL MOTORS COMPANY
Rear Compartment Lid Latch Replacement

Callout Component Name
Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Latch Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Rear Compartment Lid Latch
