Windshield Washer Hose Replacement

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

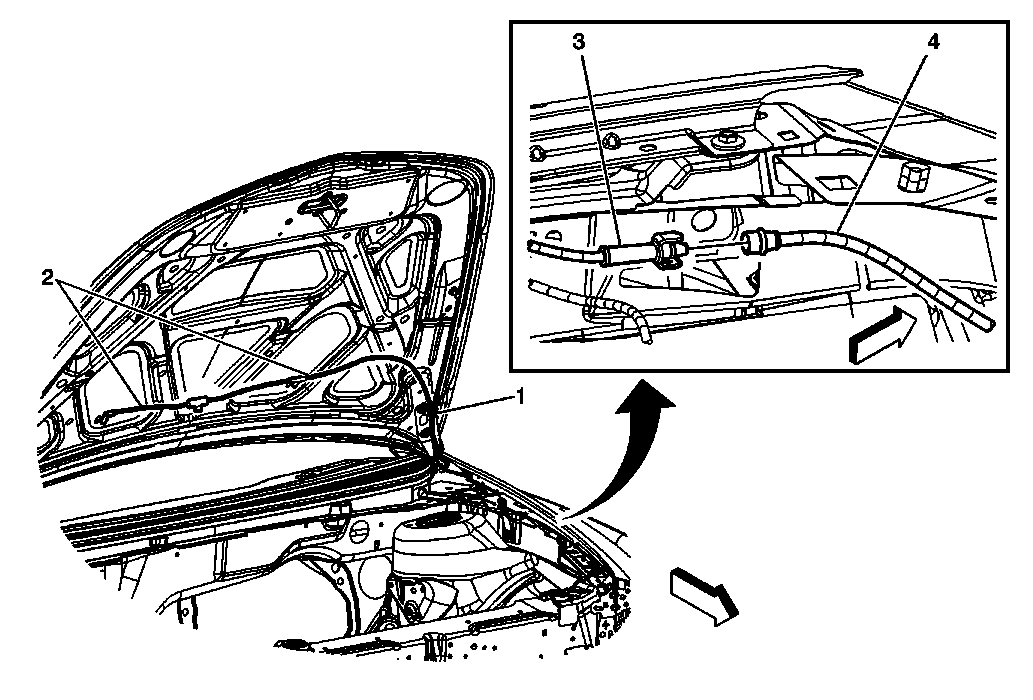

Fig 1: Identifying Windshield Washer Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the hood insulator. Refer to Hood Insulator Replacement . Place a clean container under the front driver side near where the windshield washer nozzle and windshield washer pump hose will be disconnected. Recover all lost windshield washer solvent.
1	Windshield Washer Hose Retainer to Hood Hinge
2	Windshield Washer Nozzle Hose Tip: Disconnect the washer hose from both hood mounted washer nozzles.
3	Windshield Washer Nozzle Hose Integral Connector Tip: Disconnect the hoses in order to remove the windshield washer nozzle hose.
4	Windshield Washer Pump Hose
