Navigation Antenna Replacement
WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

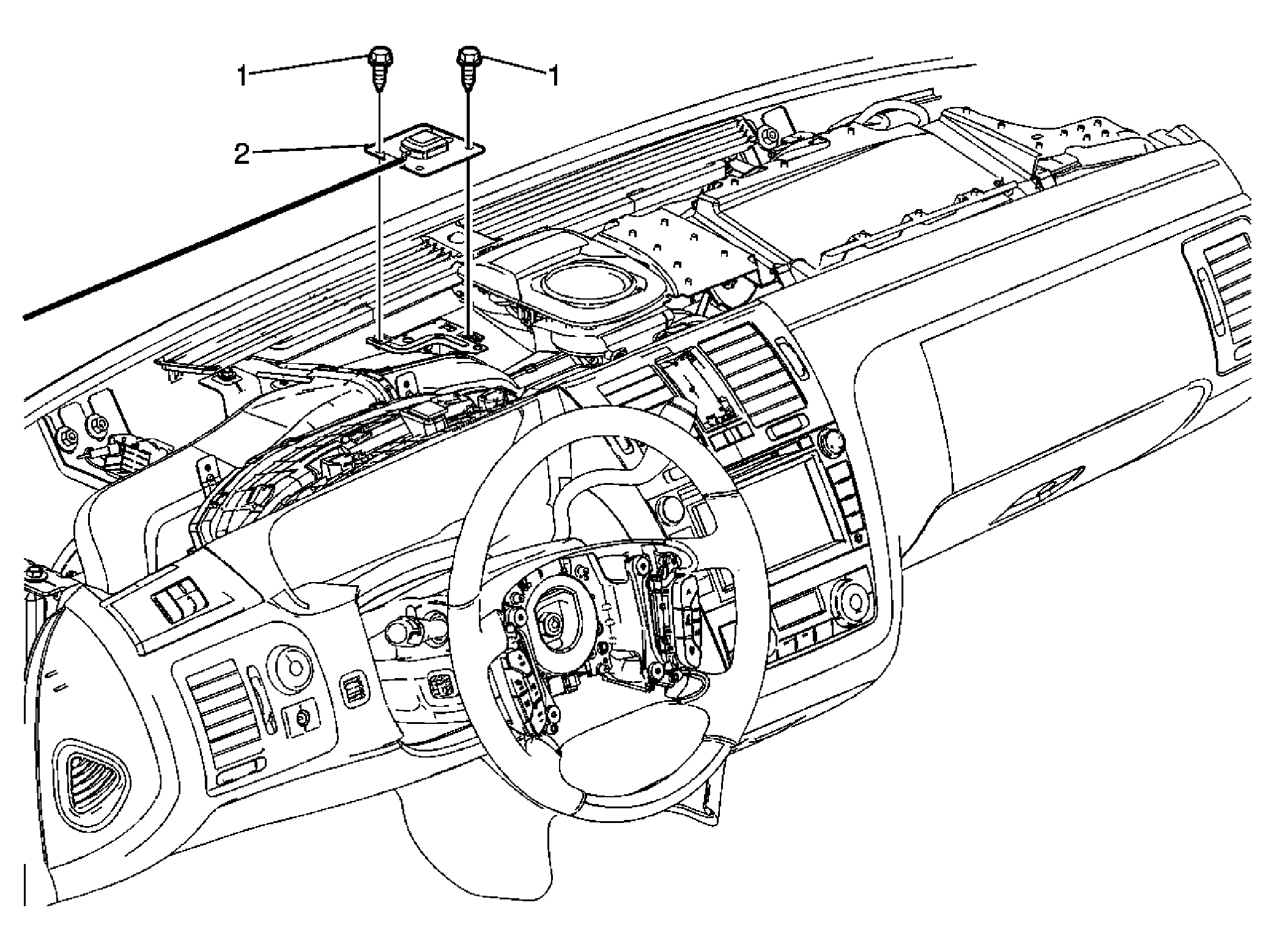

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement |
|
| 1 | Navigation Antenna Bolts (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | Navigation Antenna Assembly |
