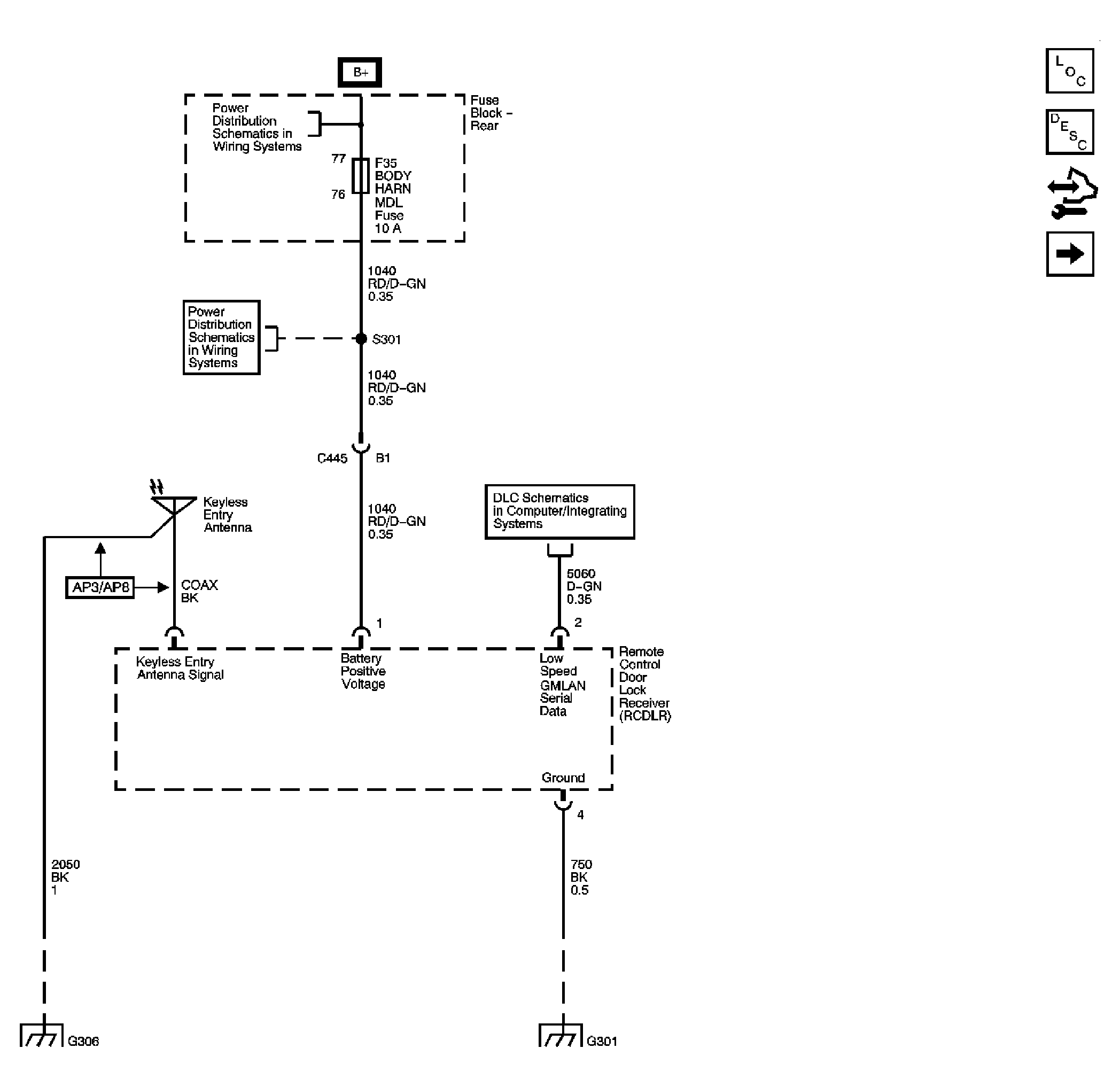

Fig 1: Remote Control Door Lock Receiver Schematics - RCDLR
Courtesy of GENERAL MOTORS CORP.

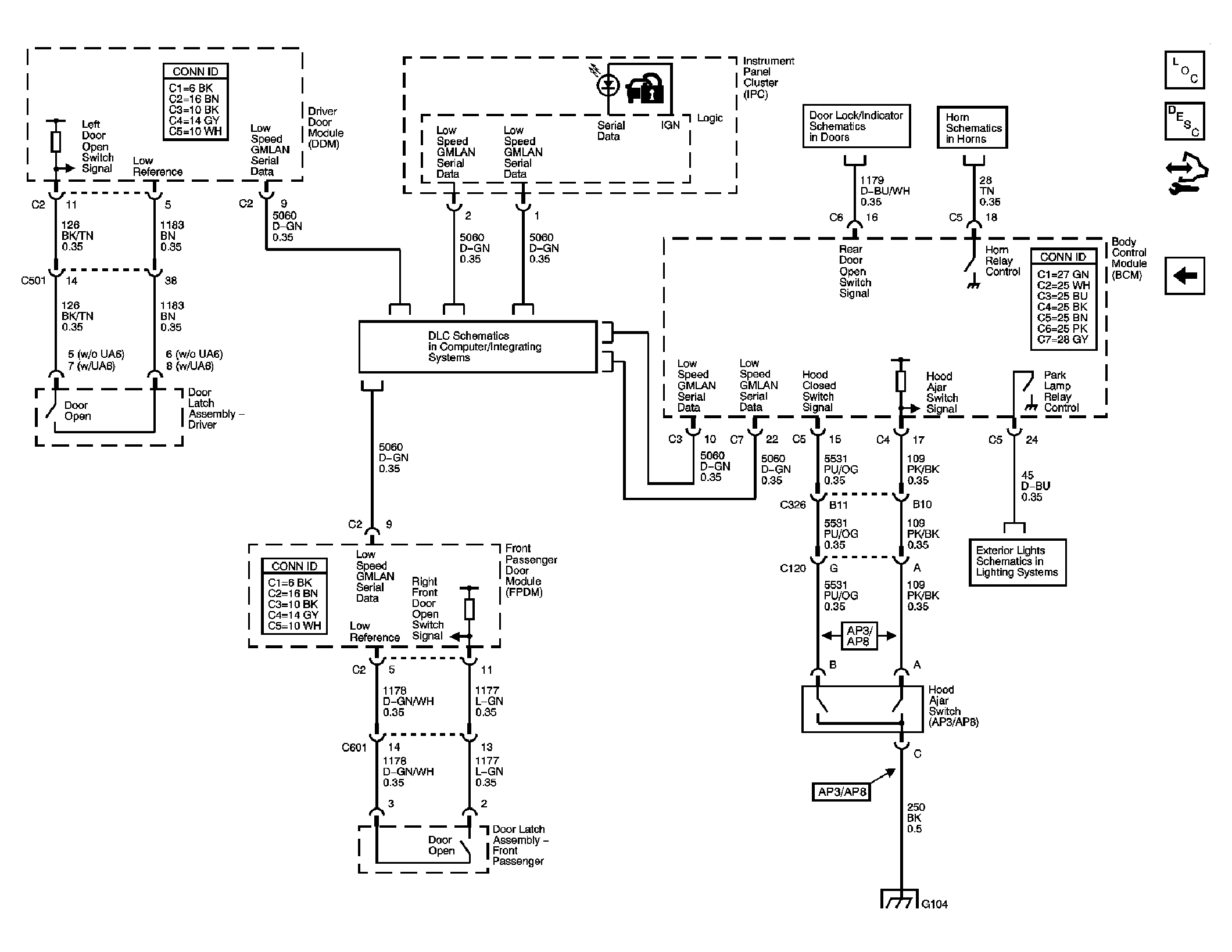

Fig 2: Door Latch Assemblies & Hood Ajar Switch Schematics
