Installation Procedure

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the mode actuator, aligning the slots in the electric actuator drive to the flats on the shaft.
  2. Align the locating hole to the alignment pin on the HVAC module assembly.
  3. Slide the actuator drive completely onto the shaft, with the mounting holes flush with the mounting screw holes on the HVAC module assembly.

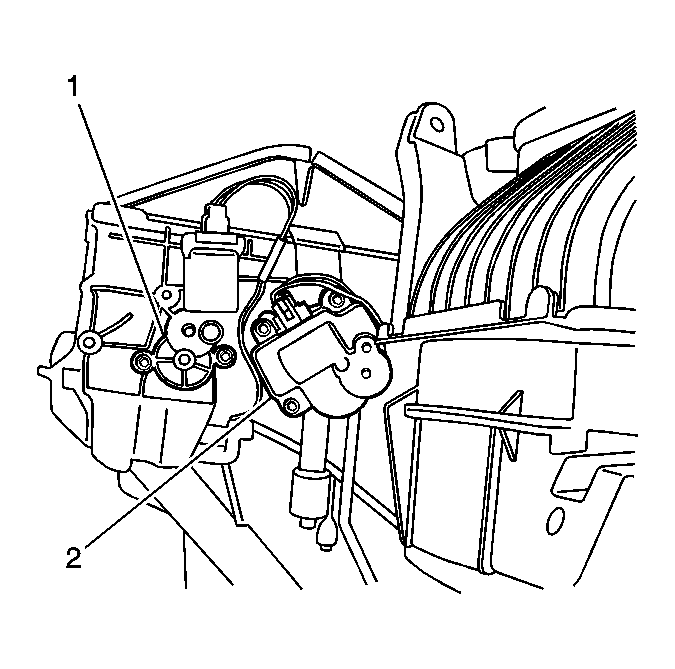

    4. Fig 1: View Of Right Air Temperature Actuator & Mode Actuator
    GM1194925Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the screws to the mode actuator (1).

    Tighten:  Tighten the screws to 1.5 N.m (13 lb in).

  5. Connect the electrical connector to the mode actuator.
  6. Install the I/P compartment. Refer to Compartment Replacement - Instrument Panel (I/P) in Instrument Panel, Gages and Console.
  7. Install the right I/P insulator. Refer to Closeout/Insulator Panel Replacement - Right in Instrument Panel, Gages and Console.
  8. Calibrate the actuator. Refer to Re-Calibrating Actuators .
