Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the negative cable between the battery and the engine block.

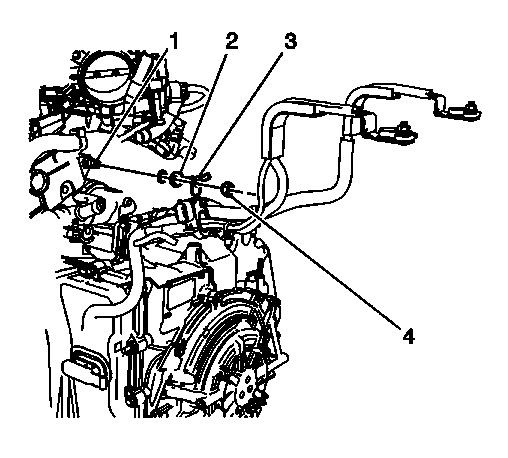

    2. Fig 1: View of Connecting Battery Negative Cable To Battery
    GM2211337Courtesy of GENERAL MOTORS CORP.
  2. Install the negative cable ground (2) to the stud/nut (1).
  3. Install the engine harness ground lead (3).
    4. CAUTION: Refer to Fastener Caution .
  4. Install the retaining nut for the ground wire (4) and tighten to 25 N.m (18 lb ft).
  5. Install the retaining clip for the battery cable.
  6. Install the ground wire.
  7. Install the retaining nut for the ground wire.
  8. Connect the negative cable. Refer to Battery Negative Cable Disconnection and Connection (LE5, LE9, LZ4, LZE, or LY7) .
  9. Install the battery box cover.
  10. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
