Rear License Plate Lamp Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

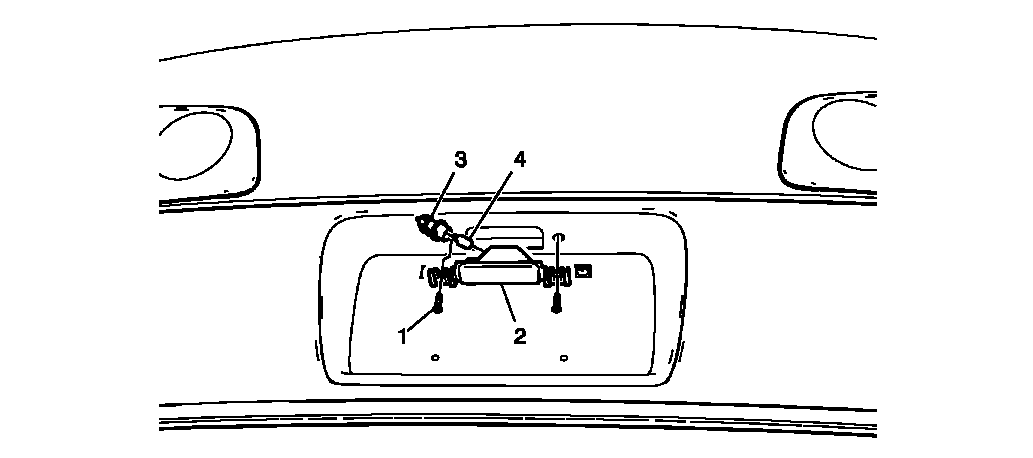

| Callout | Component Name |
|---|---|
| 1 | Rear License Plate Lamp Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 2 | Rear License Plate Lamp Tip: Rotate the left corner of the lamp assembly upward and pull the right side down out from the rear bumper fascia opening. |
| 3 | Rear License Plate Lamp Socket Tip: Rotate the lamp socket counterclockwise and remove. |
| 4 | Rear License Plate Lamp Bulb Tip: Service the bulb, as needed. |
