Roof Console Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

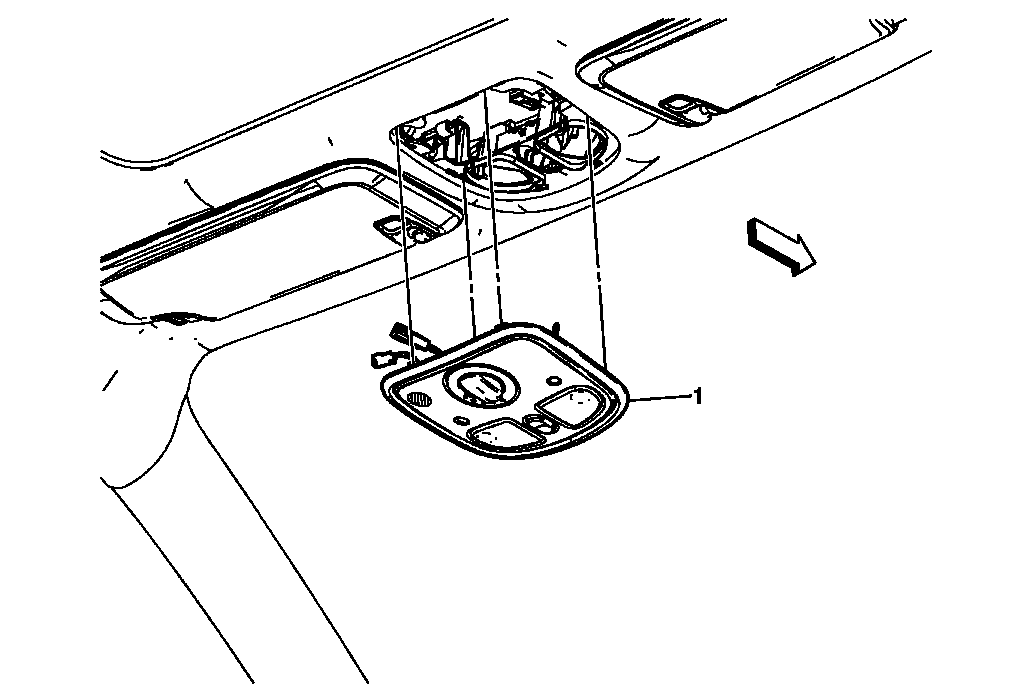

Fig 1: View Of Roof Console

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Roof Console Assembly Procedure Grasp the overhead console and pull downward disengaging the retainer clips securing the console to the headliner assembly. Disconnect the electrical connectors. When replacing the roof console assembly, transfer all necessary components.
