Power Distribution Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

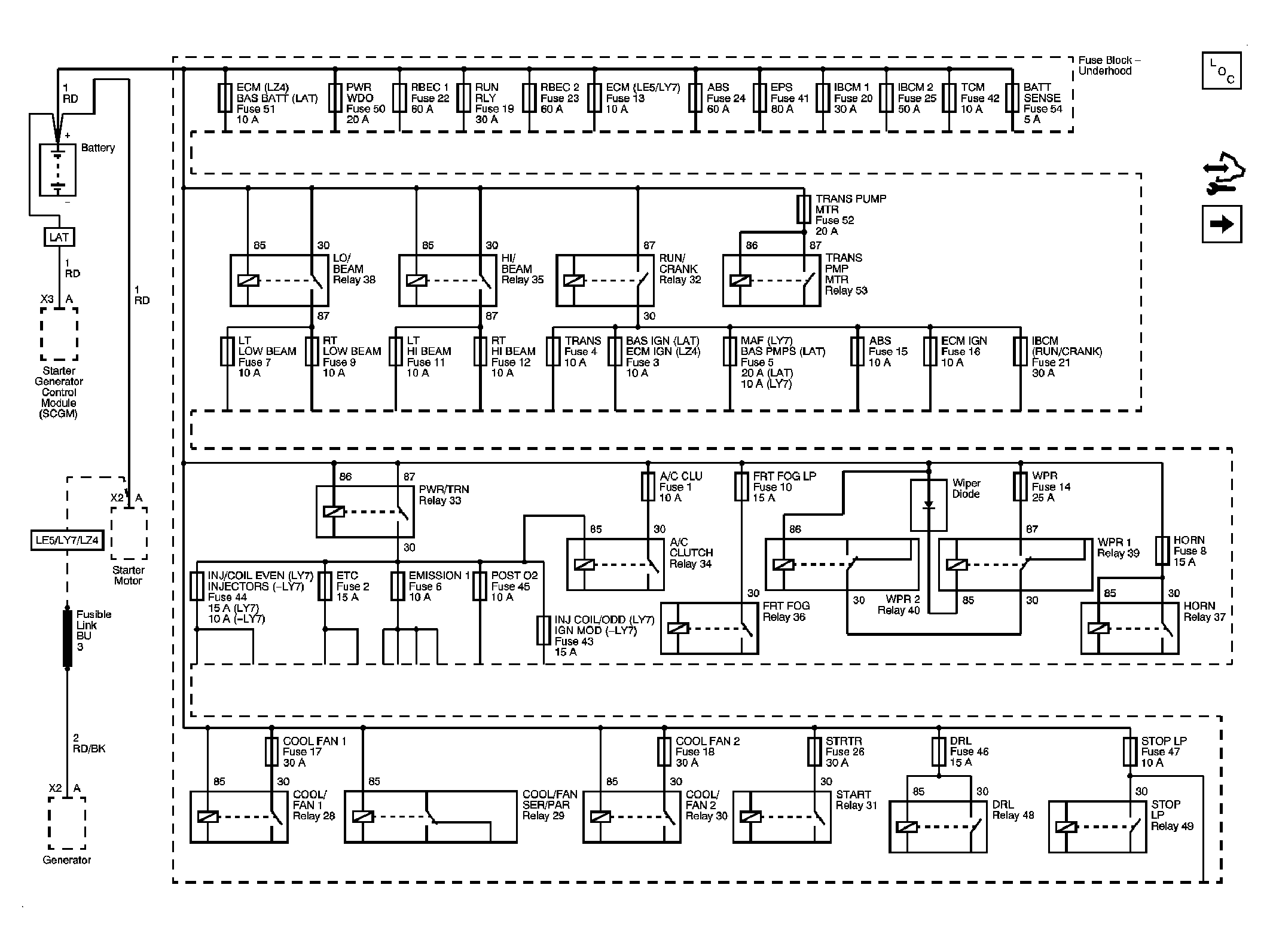

Fig 1: B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

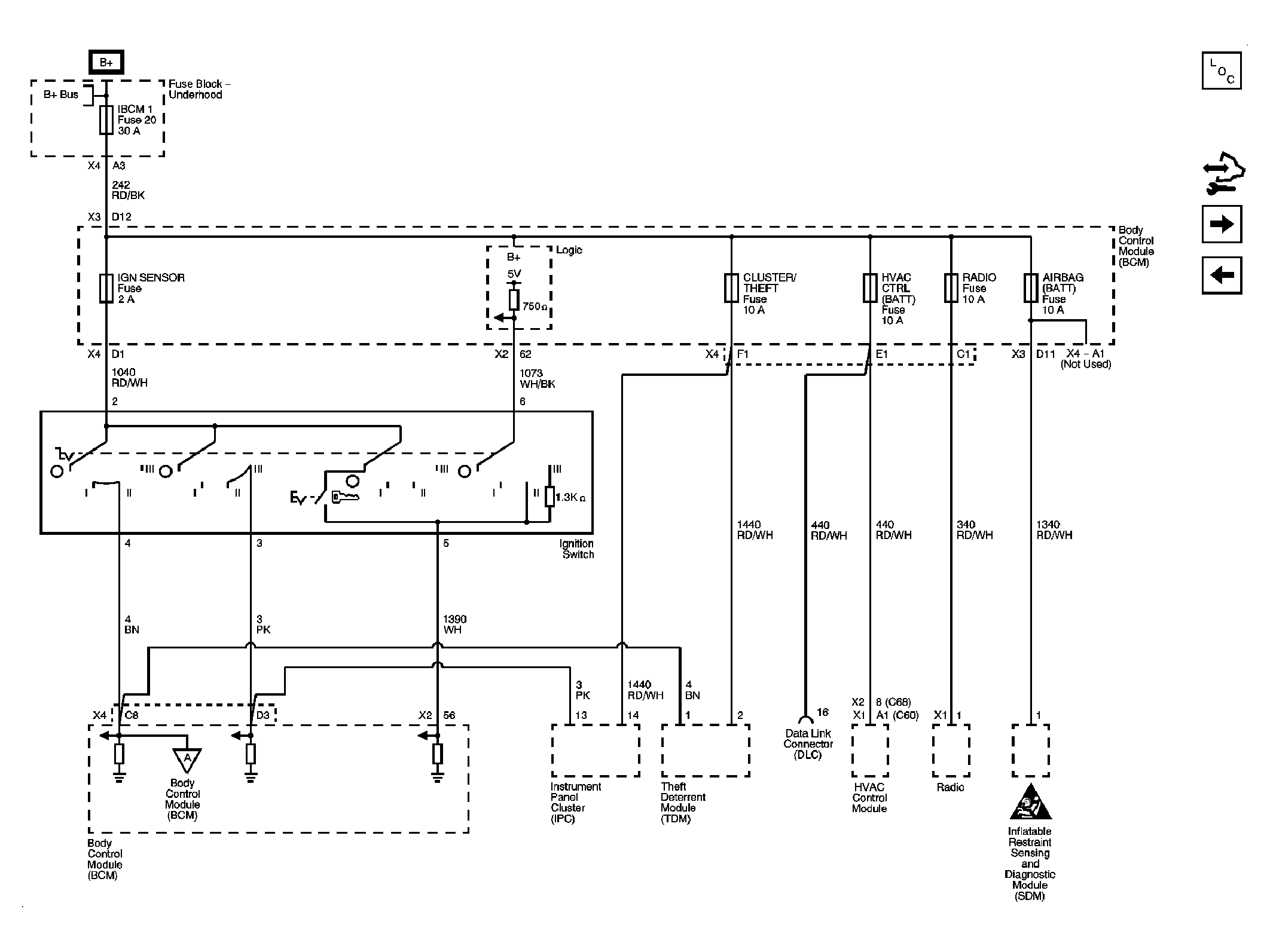

Fig 2: AIRBAG (BATT), CLUSTER/THEFT, HVAC CTRL (BATT), IBCM1, IGN SENSOR & RADIO Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

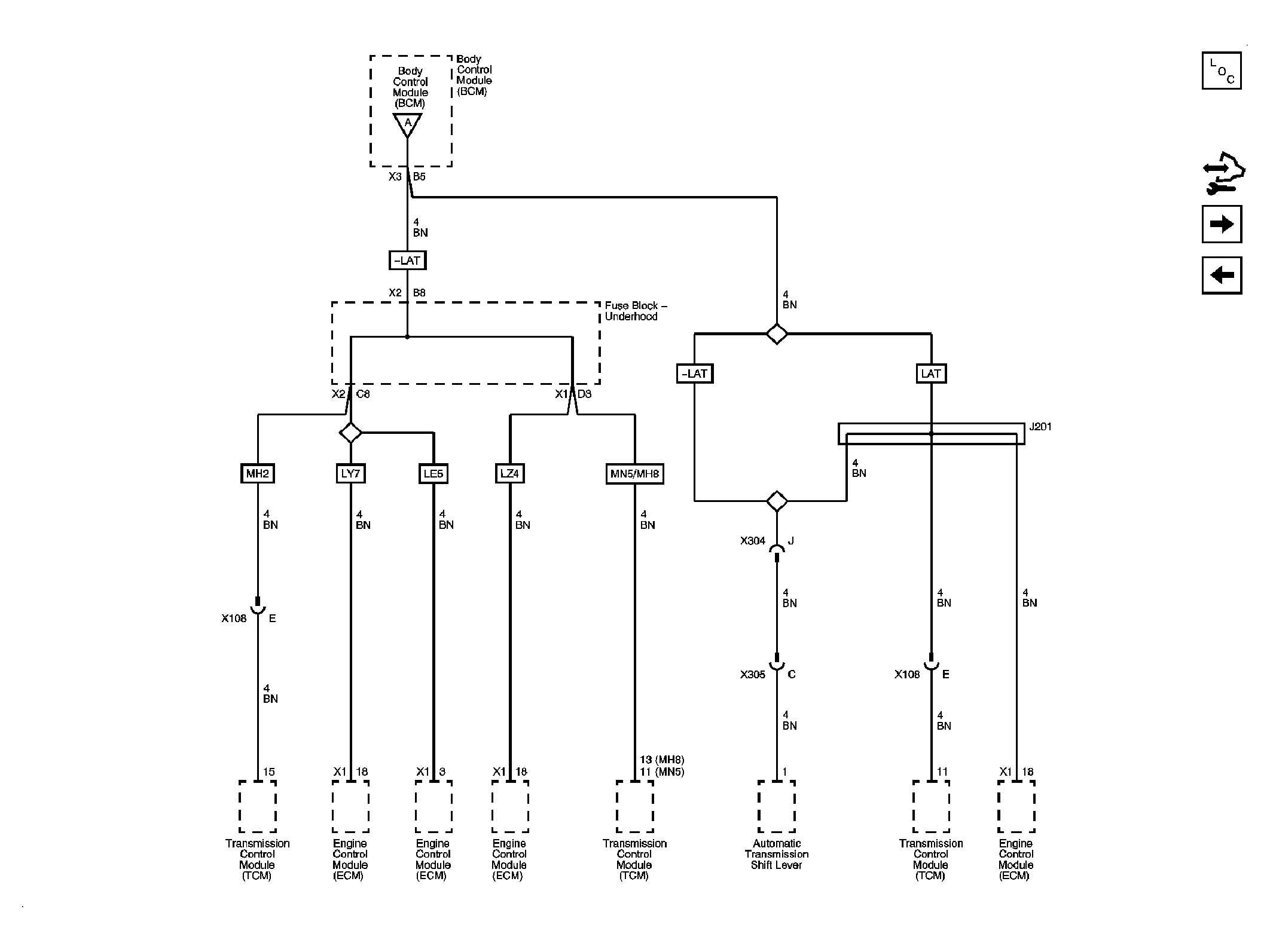

Fig 3: IGN I/II Schematic

Courtesy of GENERAL MOTORS CORP.

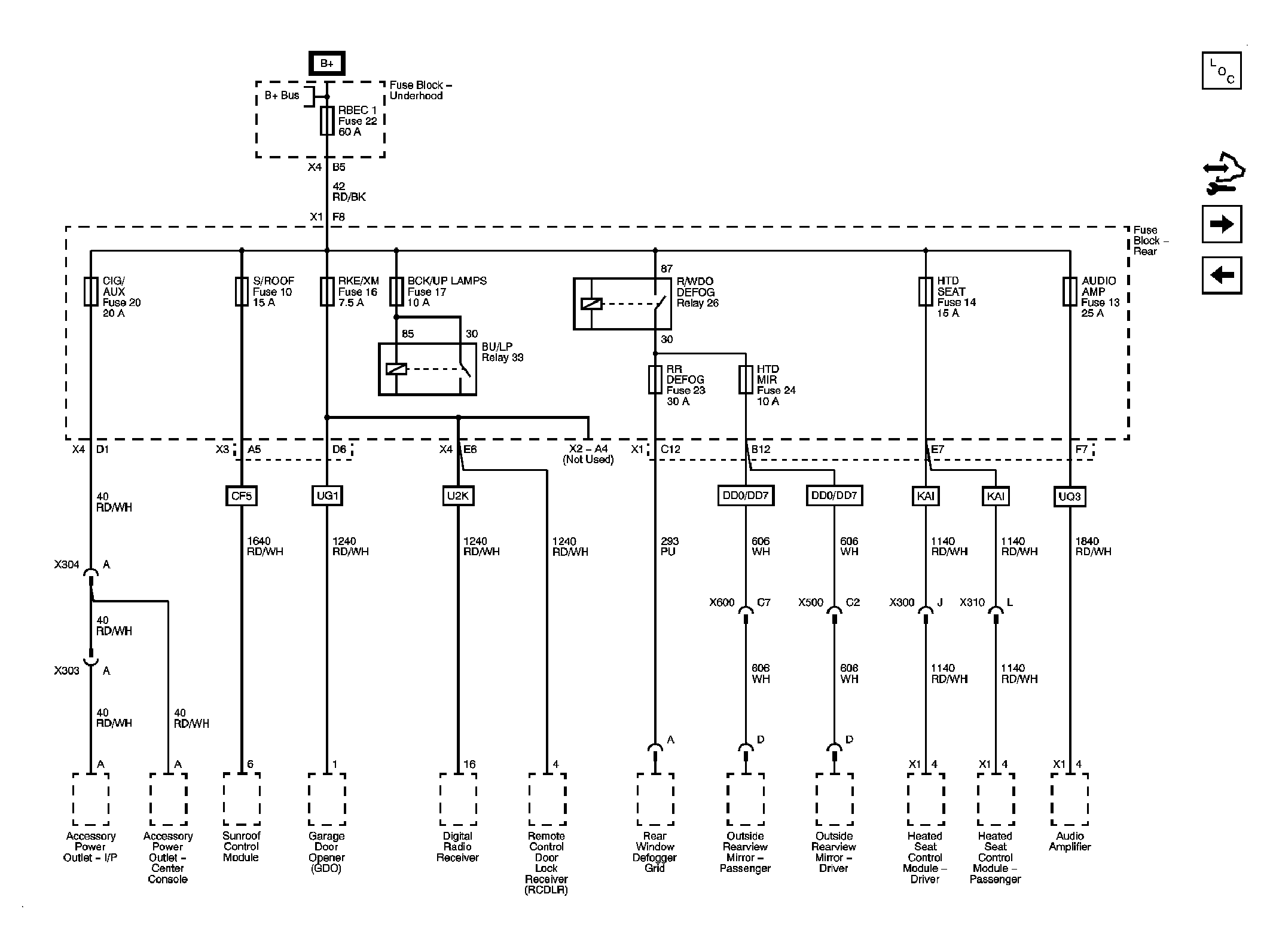

Fig 4: BCK/UP LAMPS, CIG/AUX, HTD MIR, HTD SEAT, RBEC 1, RKE/XM, RR DEFOG & S/ROOF Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

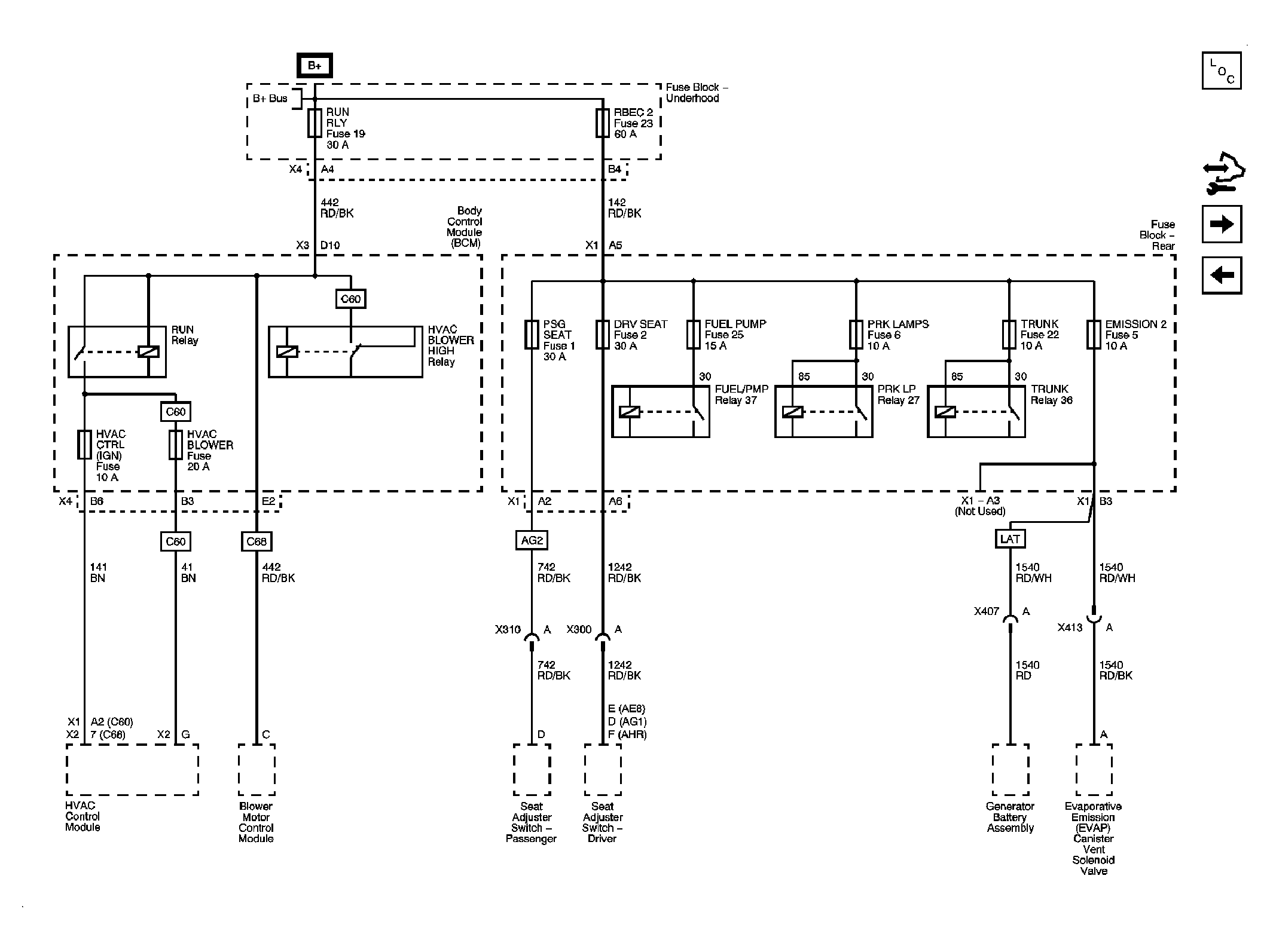

Fig 5: DRV SEAT, EMISSION 2, FUEL PUMP, HVAC BLOWER, HVAC CTRL (IGN), PRK LAMPS, PSG SEAT, RBEC 2, RUN RLY & TRUNK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

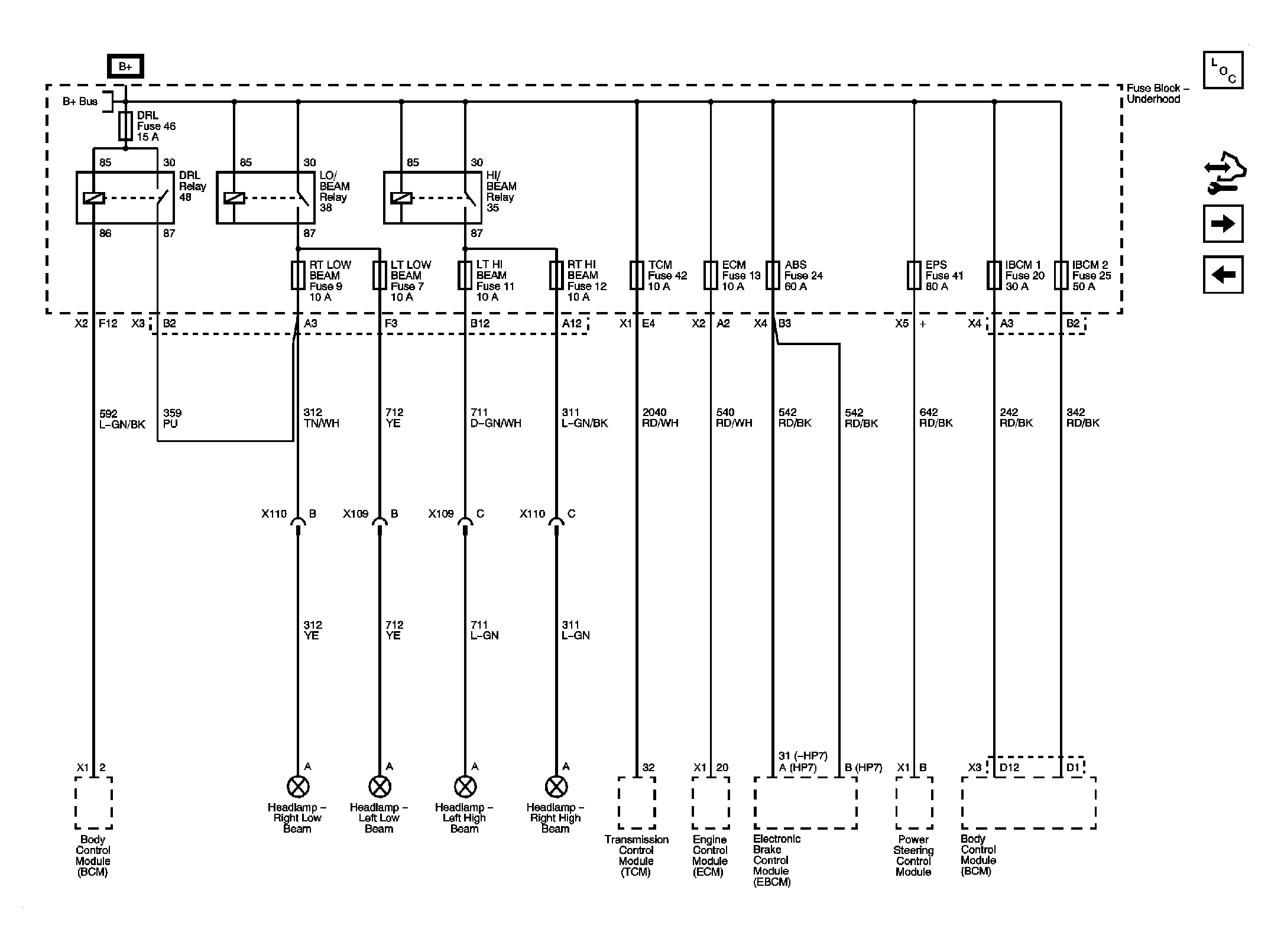

Fig 6: ABS, DRL, ECM, EPS, IBCM 1, IBCM 2, LT HIGH BEAM, LT LOW BEAM, RT HI BEAM, RT LOW BEAM & TCM Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 7: ABS, ECM IGN, IGN 1 ECM IGN BAS IGN, MAH INJECTORS BAS PUMPS & TRANS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

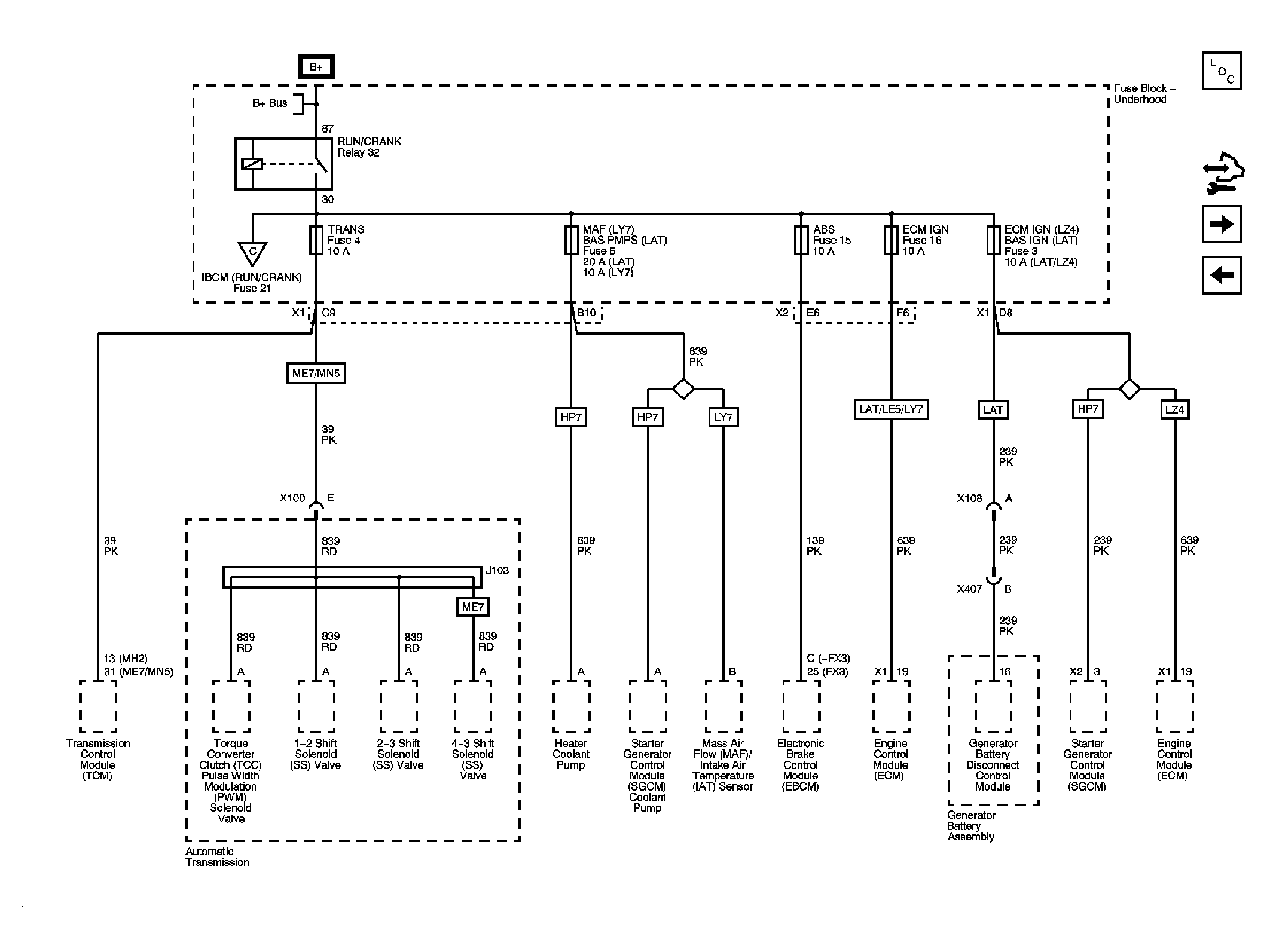

Fig 8: Underhood Fuse Block, ABS, BAS IGN (LAT), BAS PMPS (LAT), ECM IGN (without LZ4), ECM IGN (LZ4) MAF (LY7), TRANS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

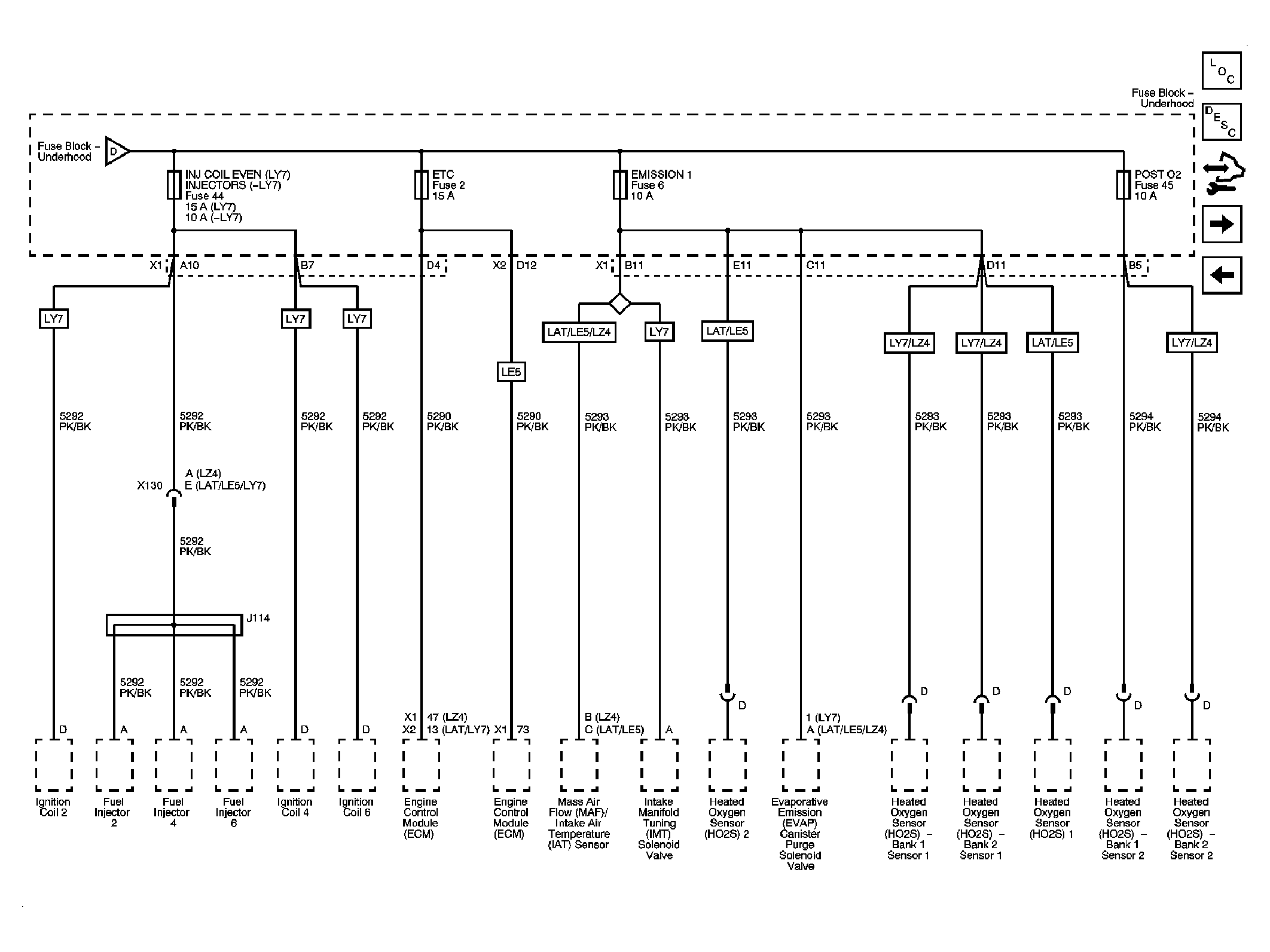

Fig 9: EMISSION 1, ETC, INJ COIL EVEN (LY7) INJECTORS (without LY7) & POST O2 Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

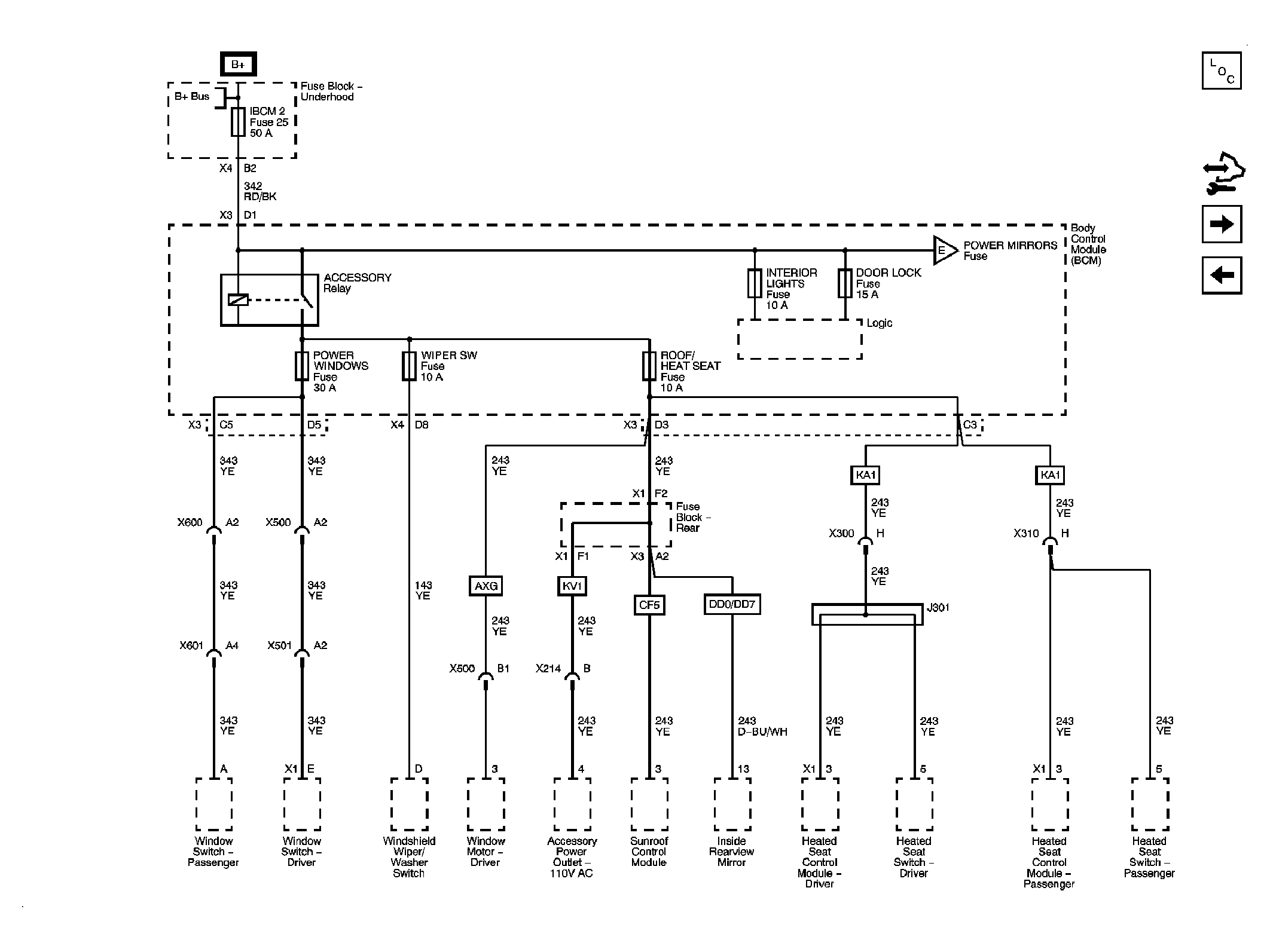

Fig 10: DOOR LOCK, IBCM 2, INTERIOR LIGHTS, POWER WINDOWS, ROOF/HEAT SEAT & WIPER SW Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

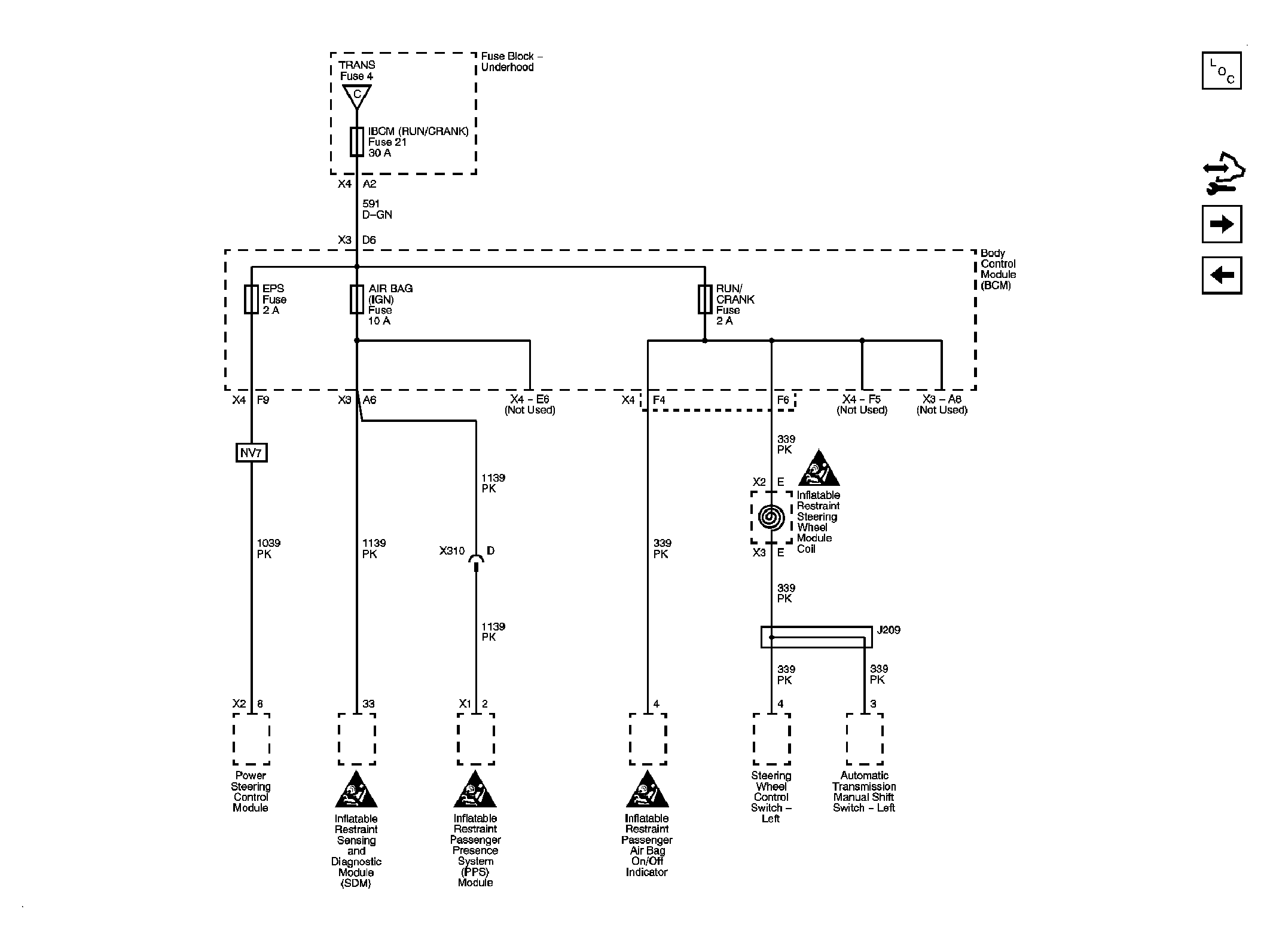

Fig 11: AIR BAG (IGN), EPS, IBCM (RUN/CRANK) & RUN/CRANK Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

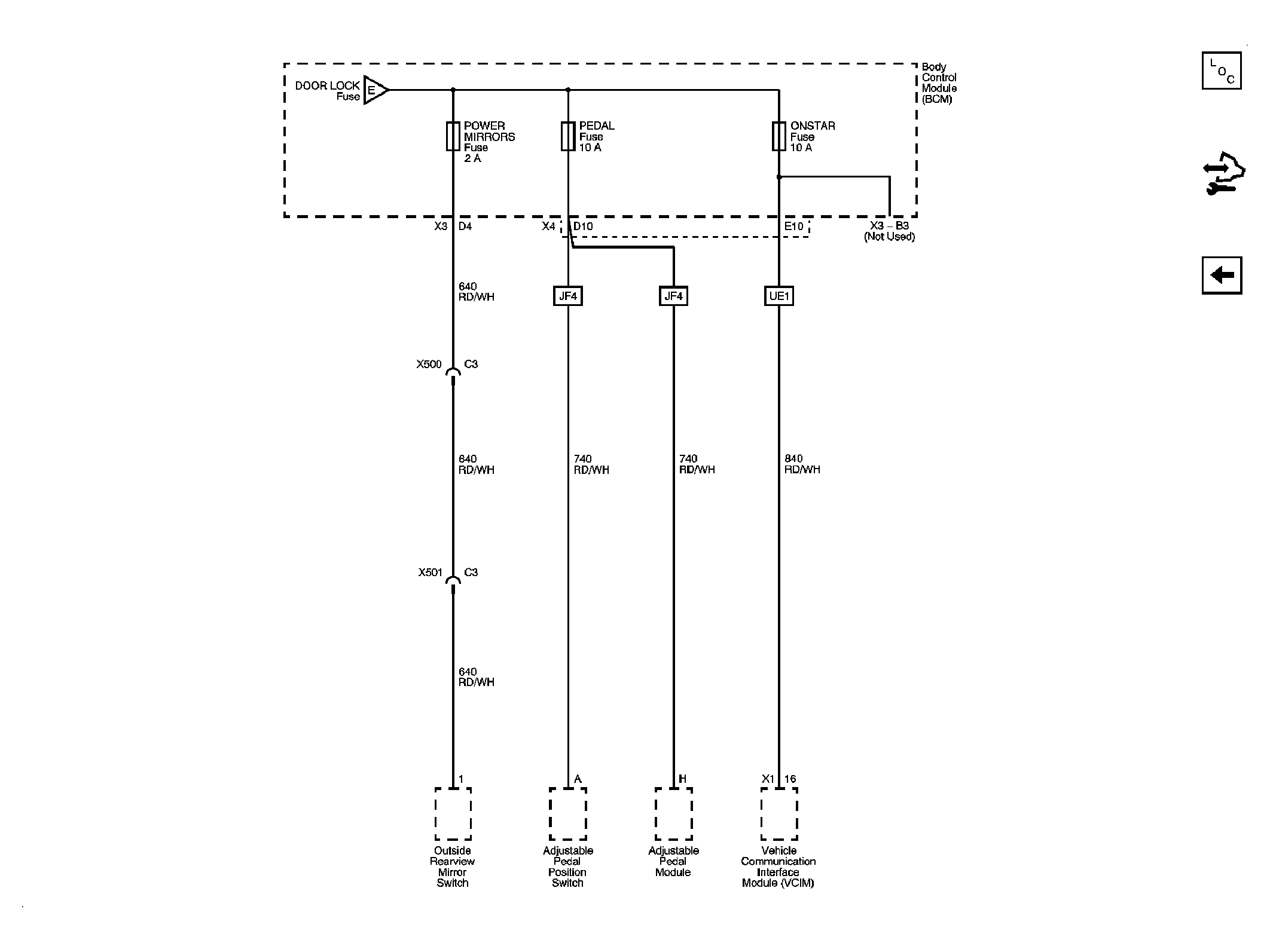

Fig 12: ONSTAR, PEDAL & POWER MIRRORS Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
