Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

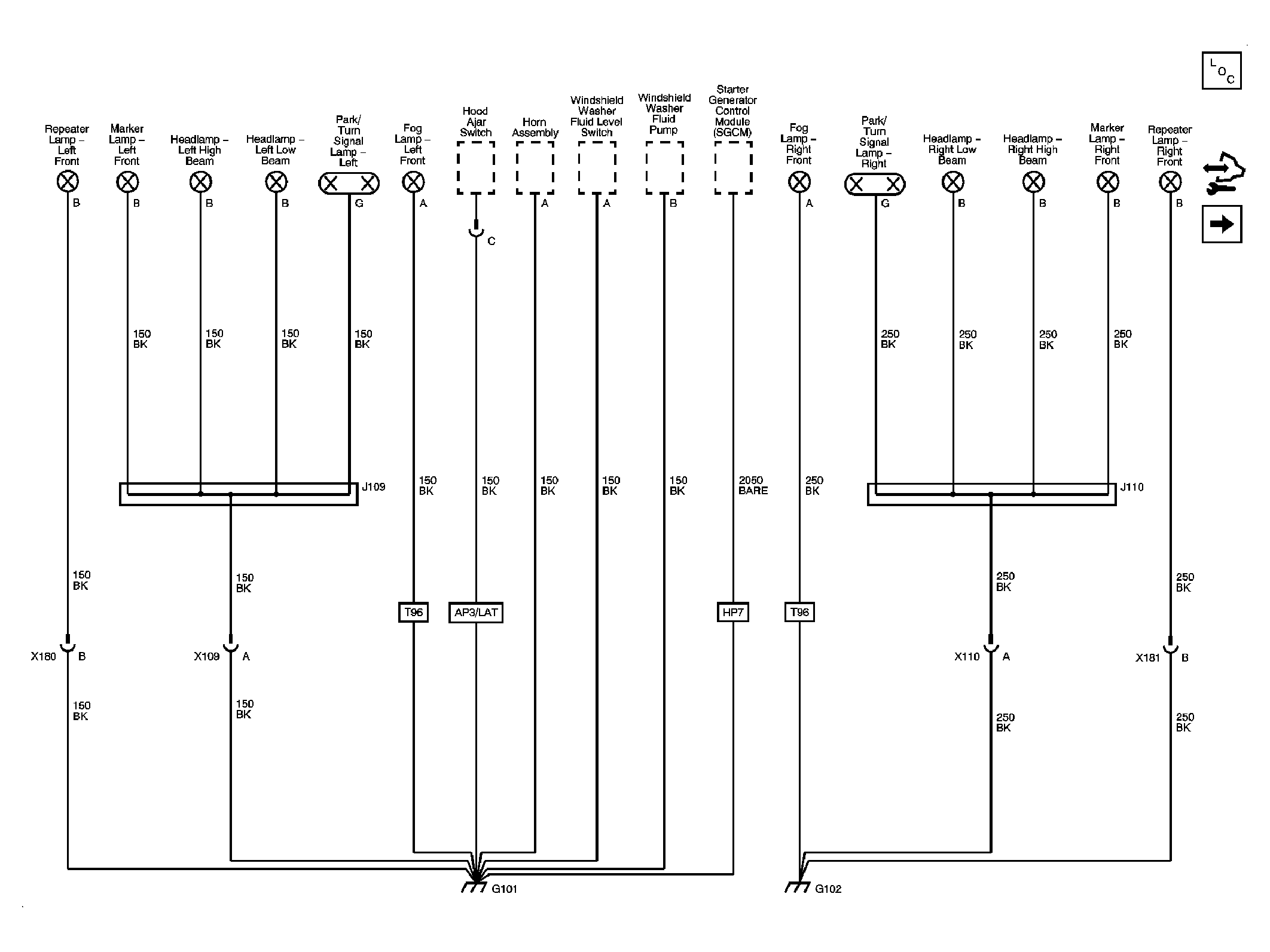

Fig 1: G101 and G102 Schematic

Courtesy of GENERAL MOTORS CORP.

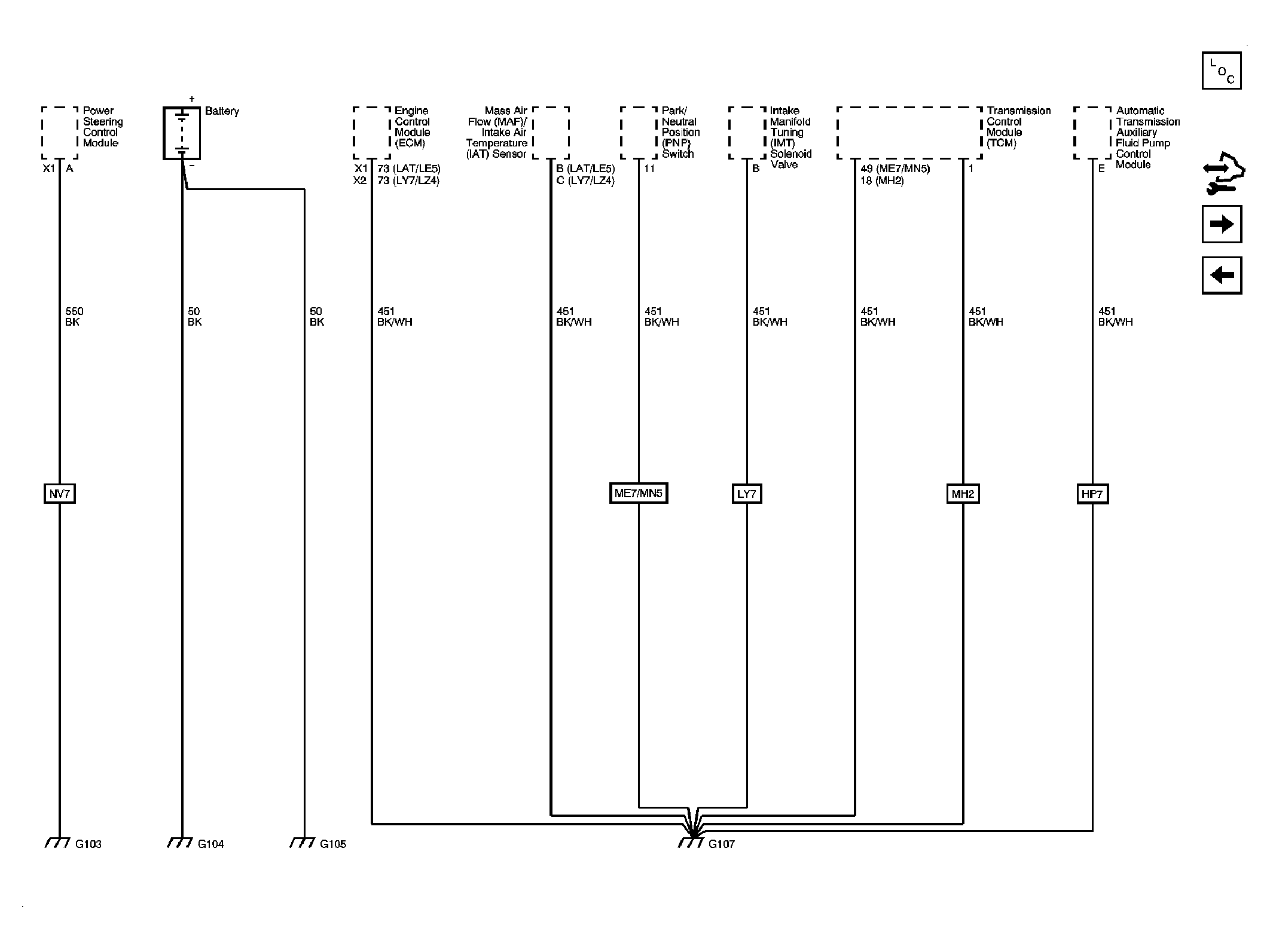

Fig 2: G103, G104, G105 & G107 Schematic

Courtesy of GENERAL MOTORS CORP.

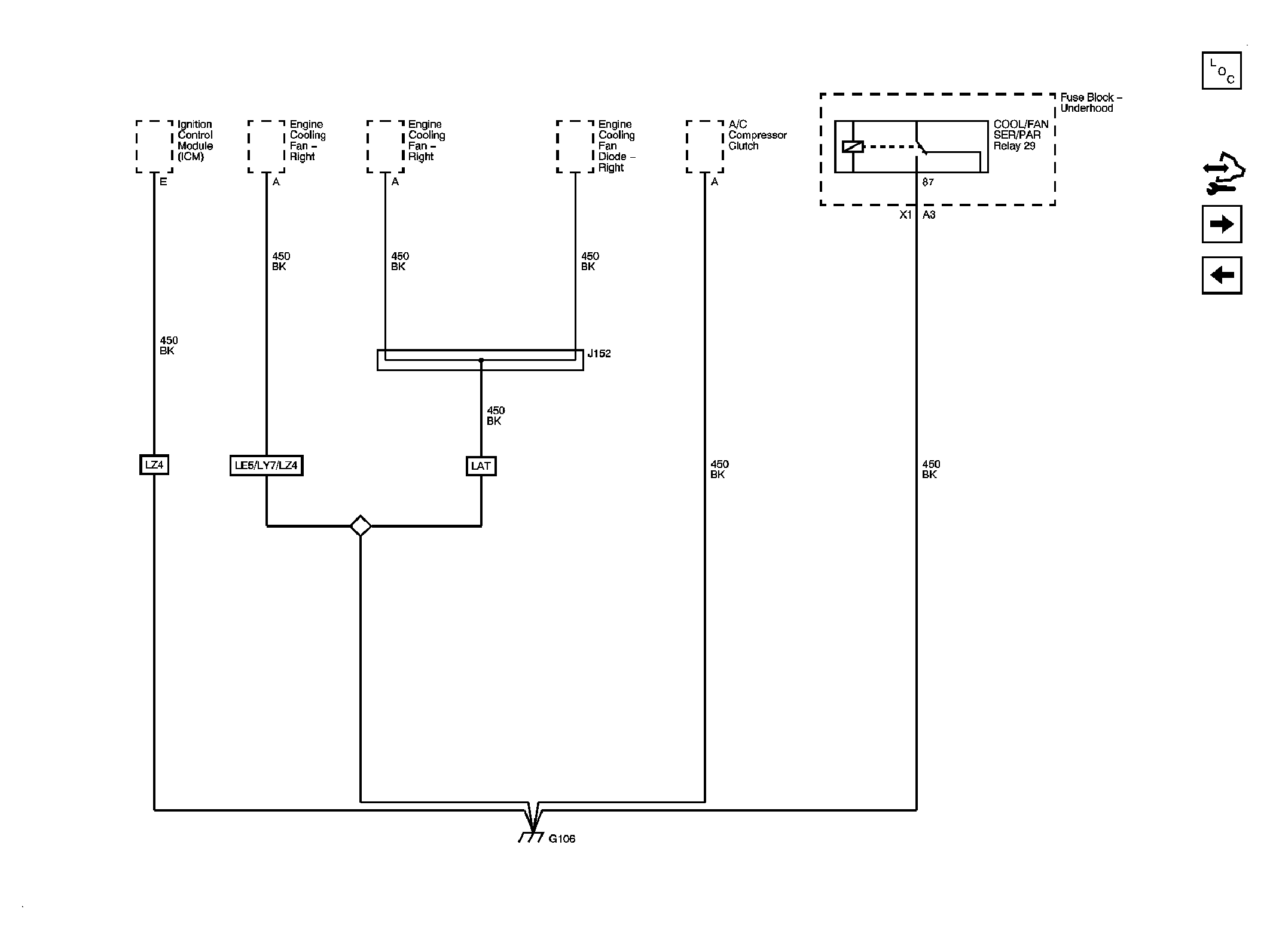

Fig 3: G106 Schematic

Courtesy of GENERAL MOTORS CORP.

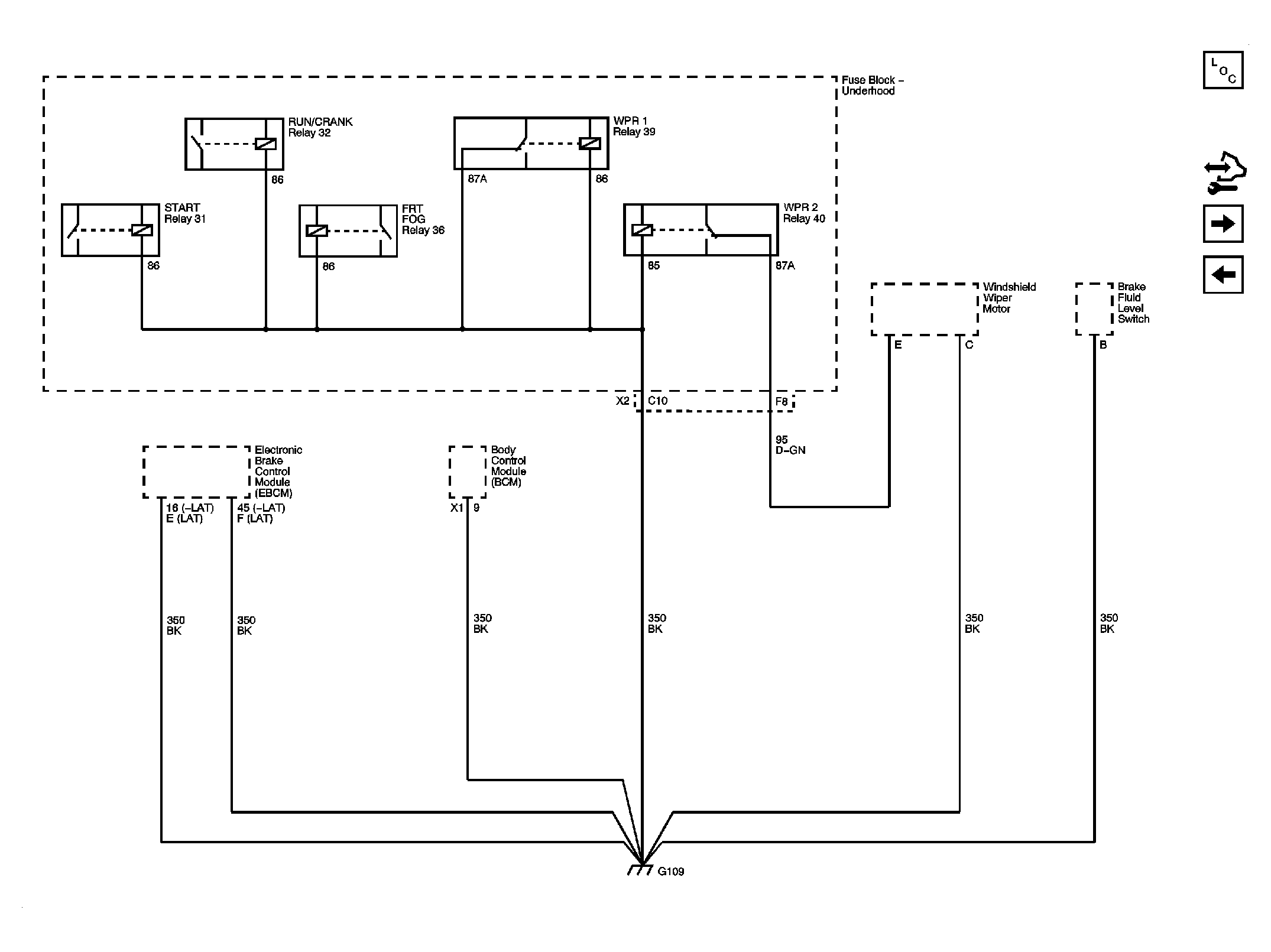

Fig 4: G109 Schematic

Courtesy of GENERAL MOTORS CORP.

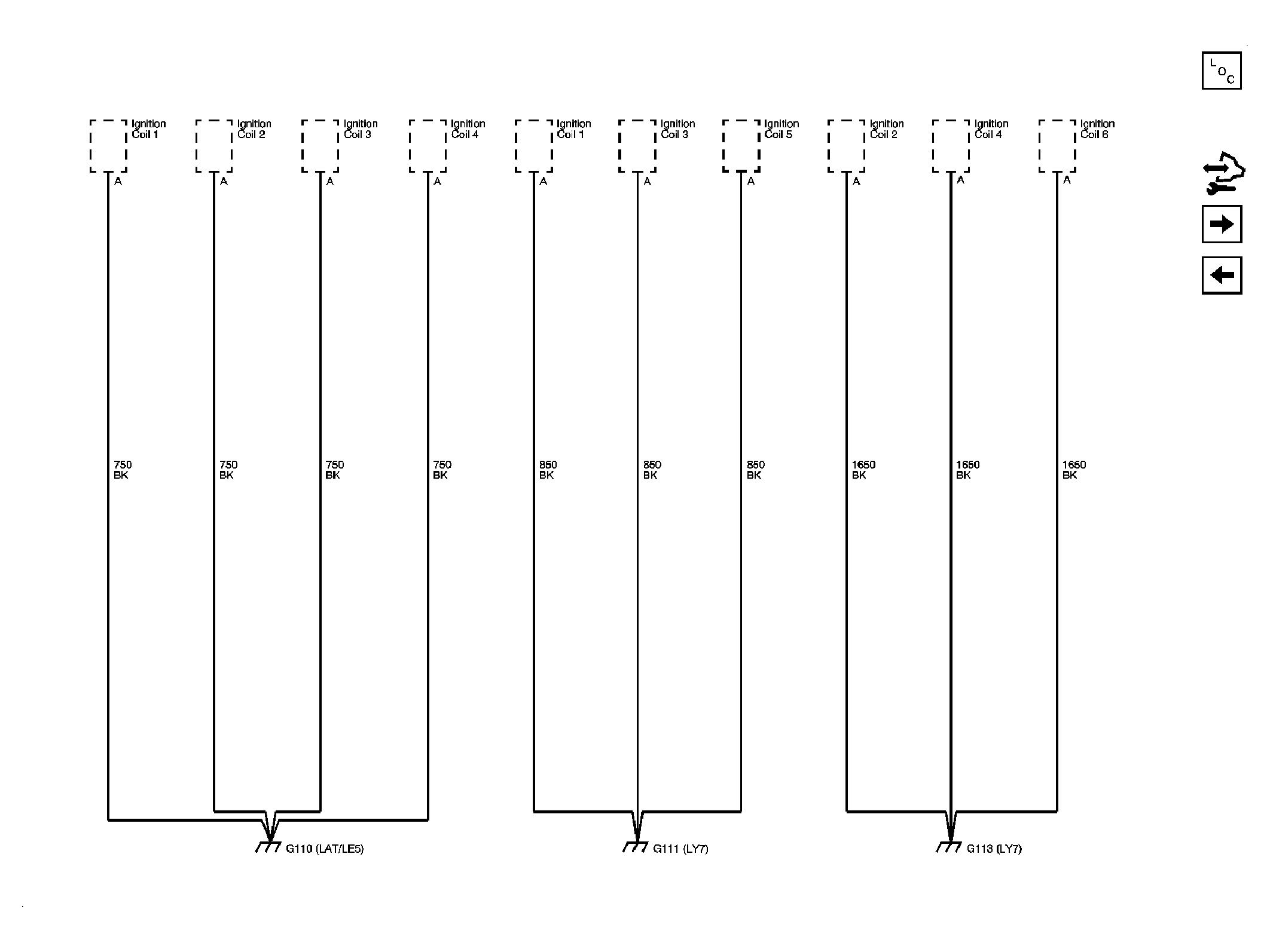

Fig 5: G110, G111 & G113 Schematic

Courtesy of GENERAL MOTORS CORP.

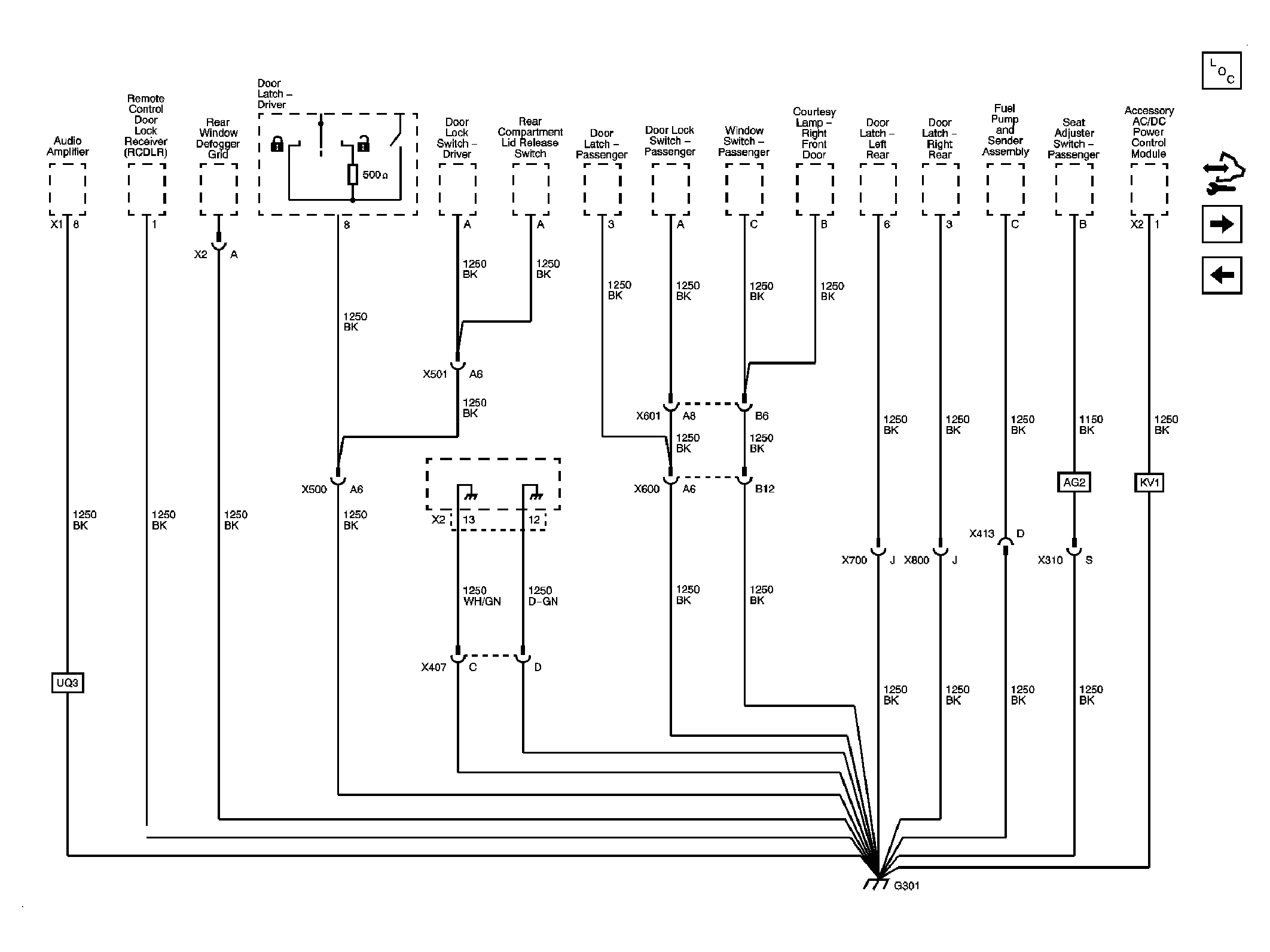

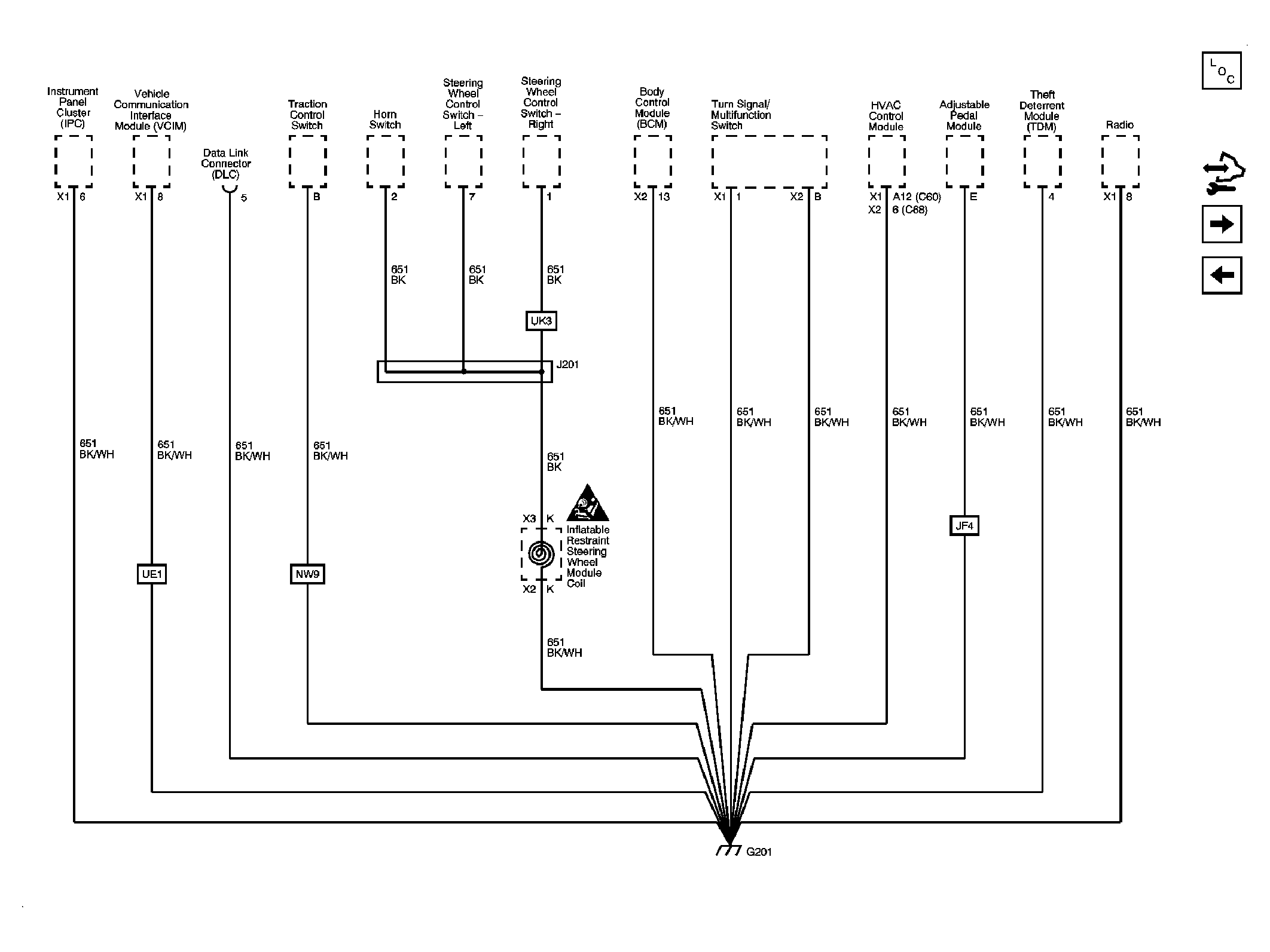

Fig 6: G201 Schematic

Courtesy of GENERAL MOTORS CORP.

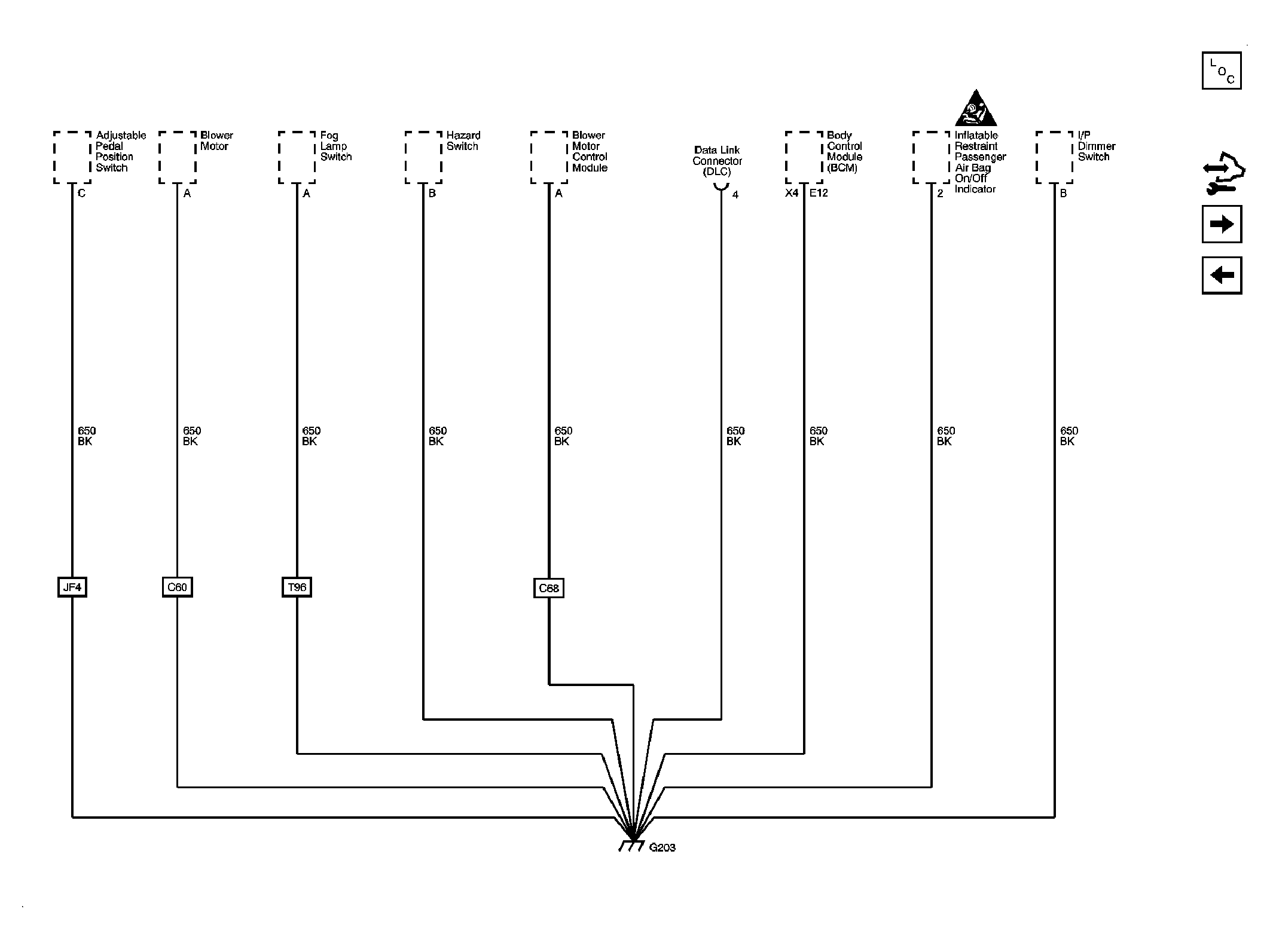

Fig 7: G203 Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 8: G301 Schematic

Courtesy of GENERAL MOTORS CORP.

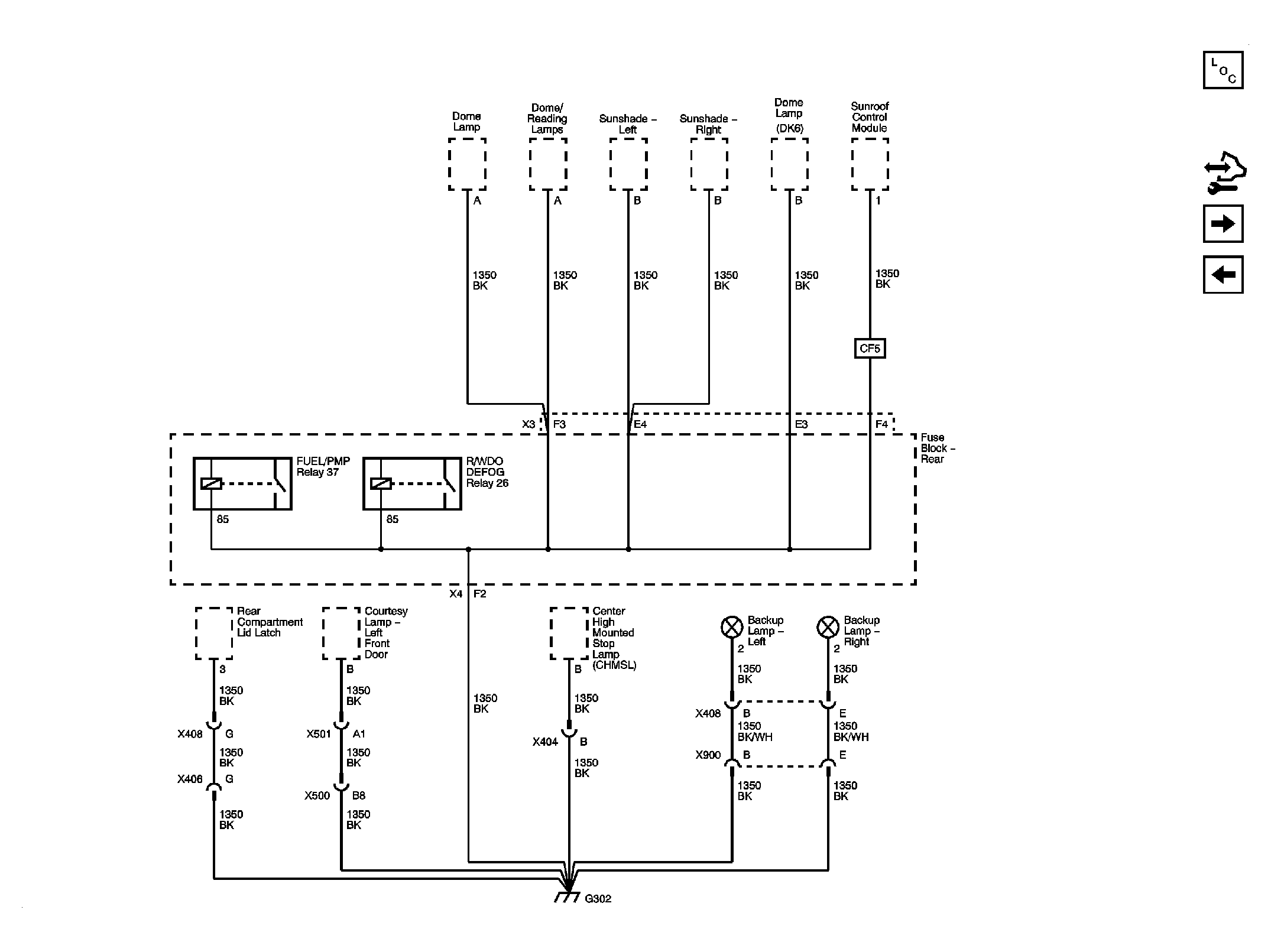

Fig 9: G302 Schematic

Courtesy of GENERAL MOTORS CORP.

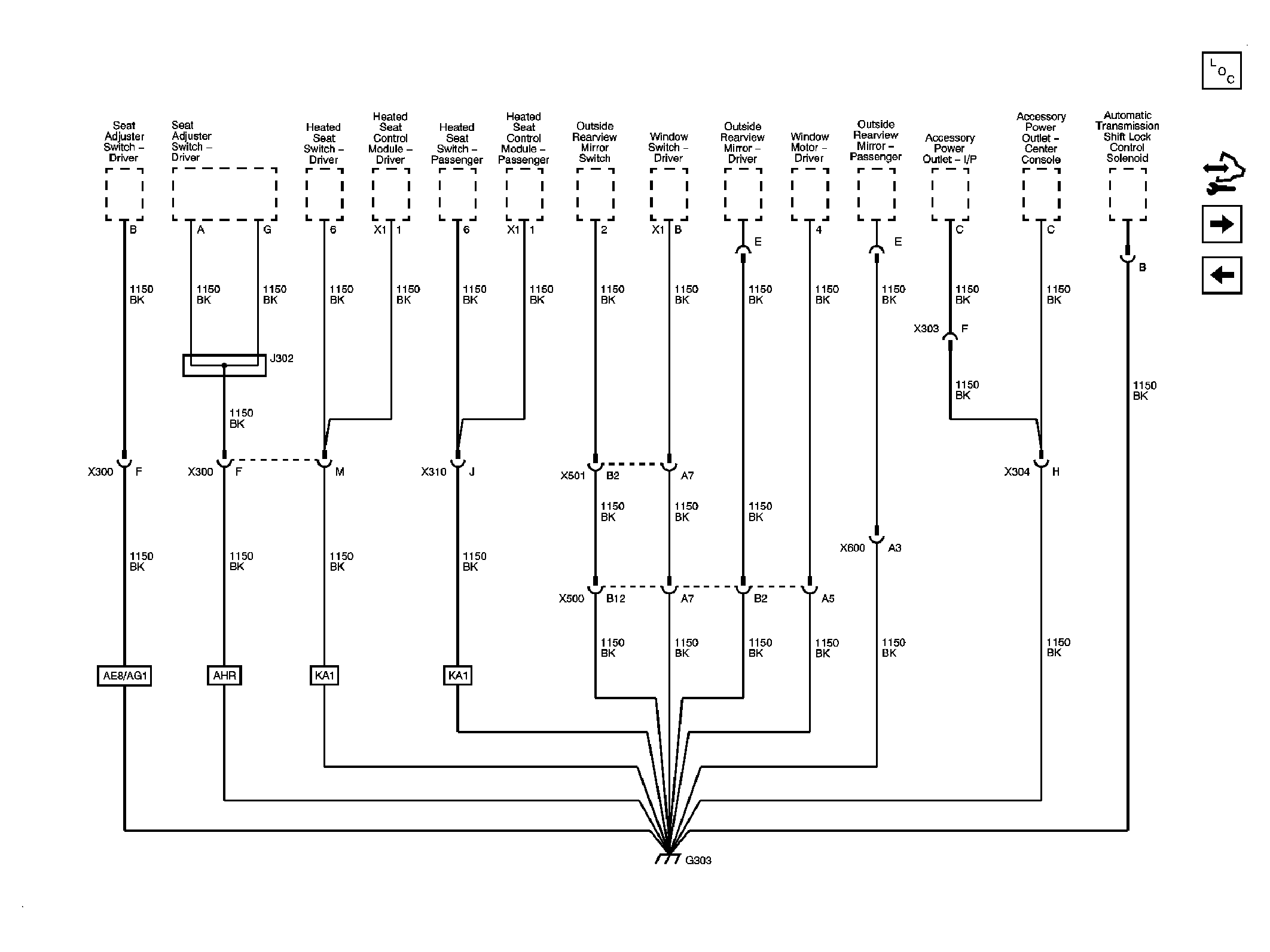

Fig 10: G303 Schematic

Courtesy of GENERAL MOTORS CORP.

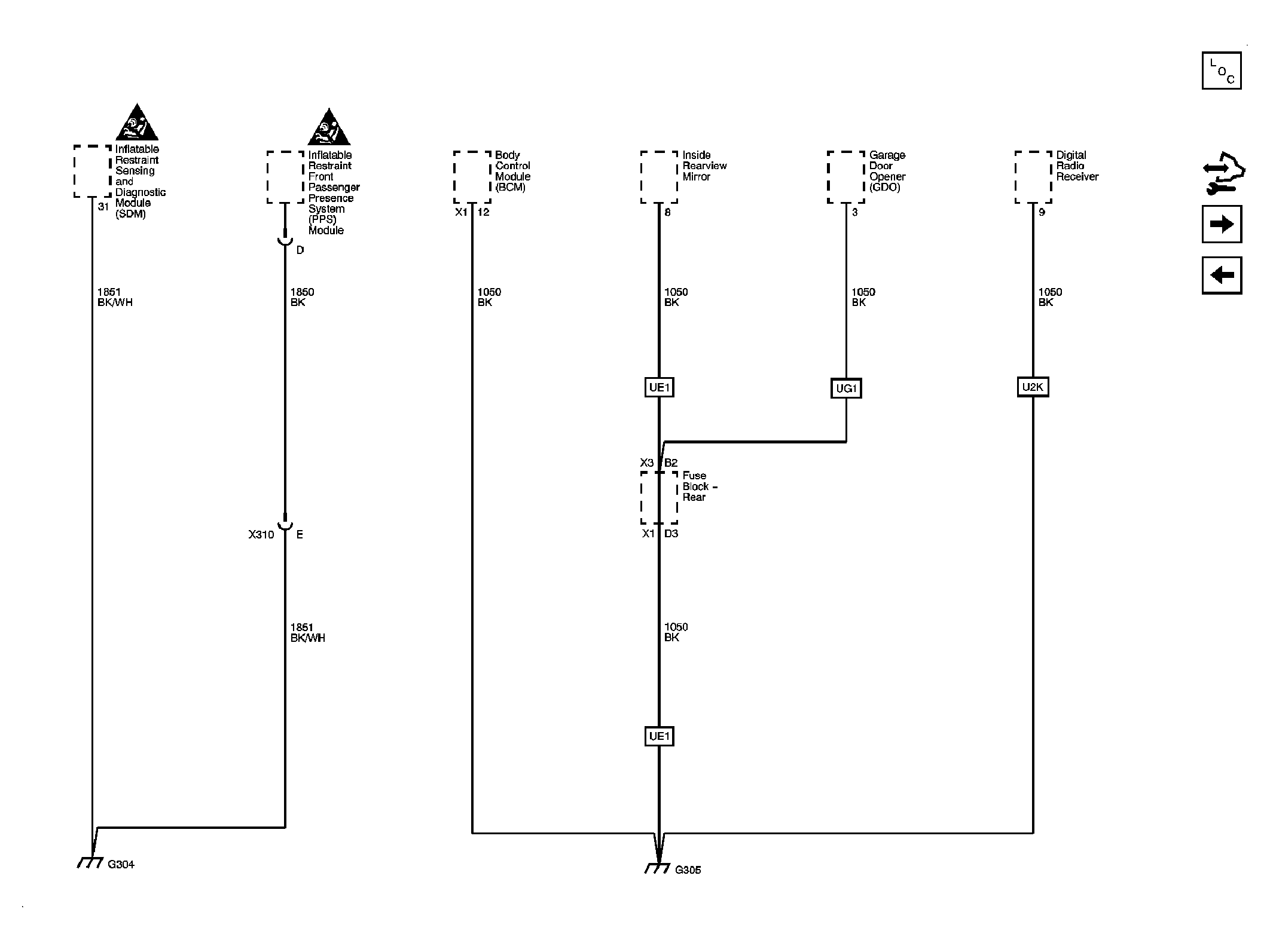

Fig 11: G304 & G305 Schematic

Courtesy of GENERAL MOTORS CORP.

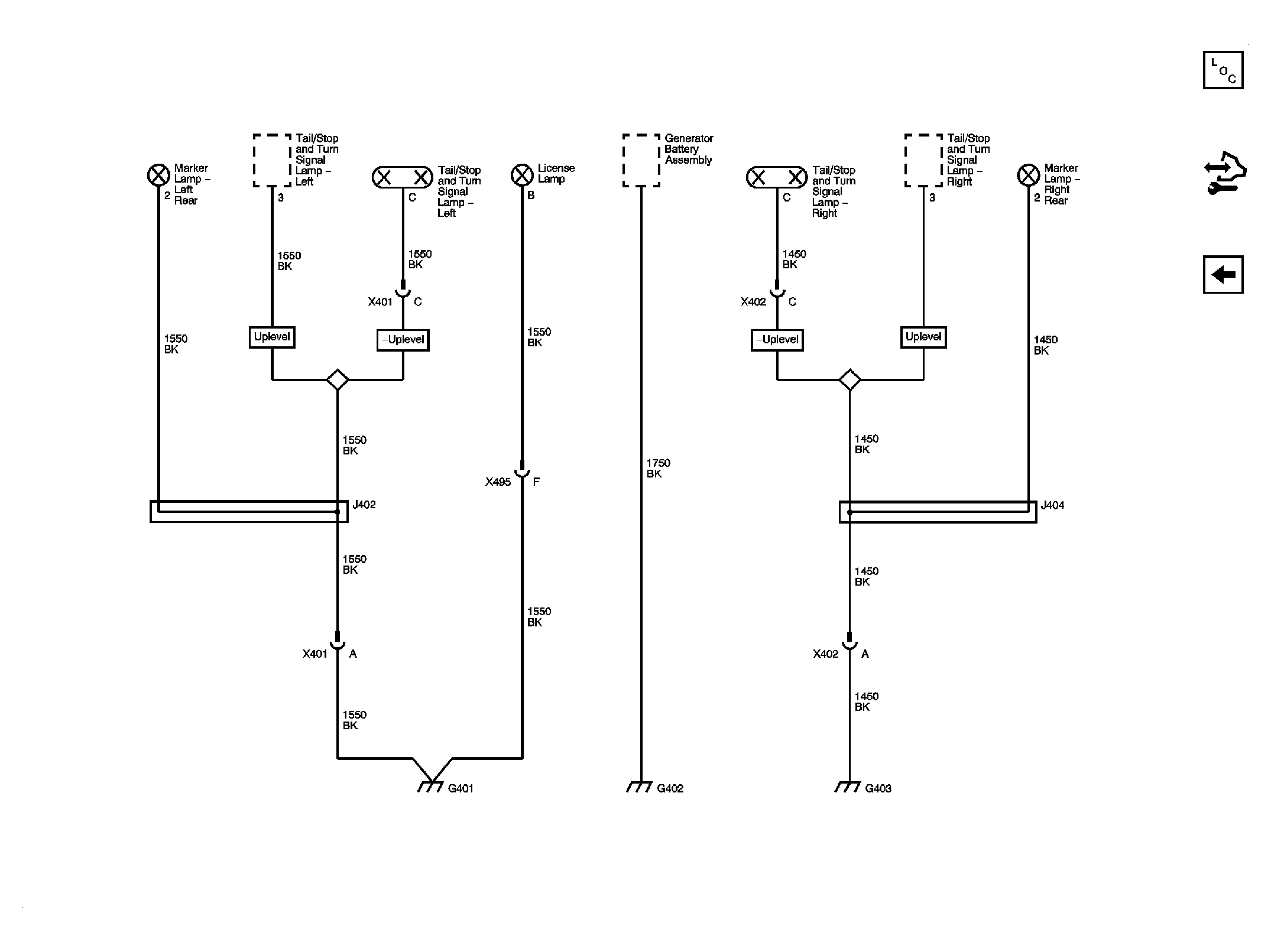

Fig 12: G401, G402 & G403 Schematic

Courtesy of GENERAL MOTORS CORP.
