Installation Procedure

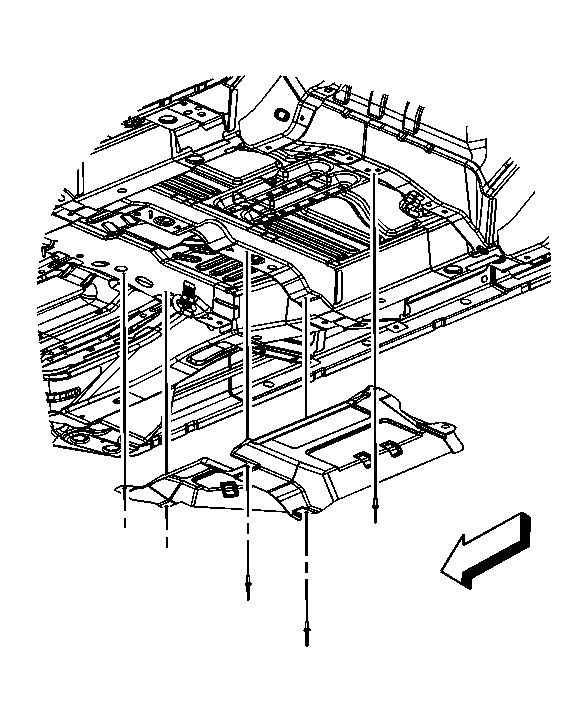

    Fig 1: View Of Catalytic Converter Heat Shield
    GM1814349Courtesy of GENERAL MOTORS CORP.
  1. Position the catalytic converter heat shield to the underbody.
  2. Install NEW catalytic converter heat shield rivets.
  3. Install the catalytic converter. Refer to one of the following:
