Removal Procedure

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of 2 Master Cylinder Mounting Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the brake master cylinder mounting nuts from the booster and position the master cylinder to gain access to the brake fluid level sensor but do not disconnect the brake lines. Refer to Master Cylinder Replacement .

Fig 2: Identifying Brake Fluid Level Sensor Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connector from the brake fluid level sensor.

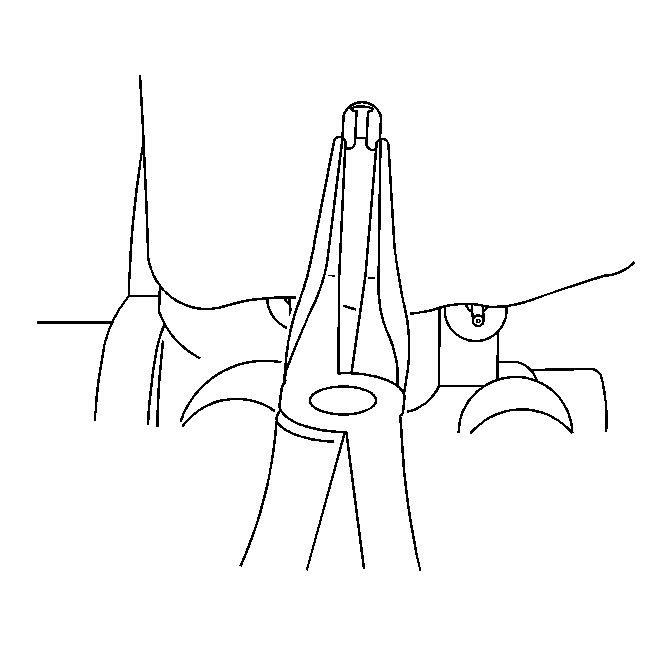

Fig 3: Depressing Retaining Tabs On End Of Brake Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Using needle nose pliers carefully depress the retaining tabs on the end of the brake fluid level sensor.

Fig 4: View Of Brake Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the brake fluid level sensor from the master cylinder.
